Page 32

746-257-B5-001, Rev. A1 (11/2013)

4.11 Viewing AlphaApps Information via the Web Page

The status of the optional AlphaApp Card may be viewed by navigating to the

AlphaApps selection on

the

Apps menu of the IDH4 Series Web page. Status and firmware version are typical parameters listed

for this installed component of the power supply. A

Configure/Save button is available for manually

setting the Application Clock. Refer to

Section 4.3.1, Web Interface Security Levels for User Name and

Password.
The Utility section of the Web page displays current AC Line Status and Utility Performance Current

Status. The utility event monitor tracks typical power events such as outages, sags, surges, and

frequency in a tabular format for ease of viewing.

4.0 Web Interface, continued

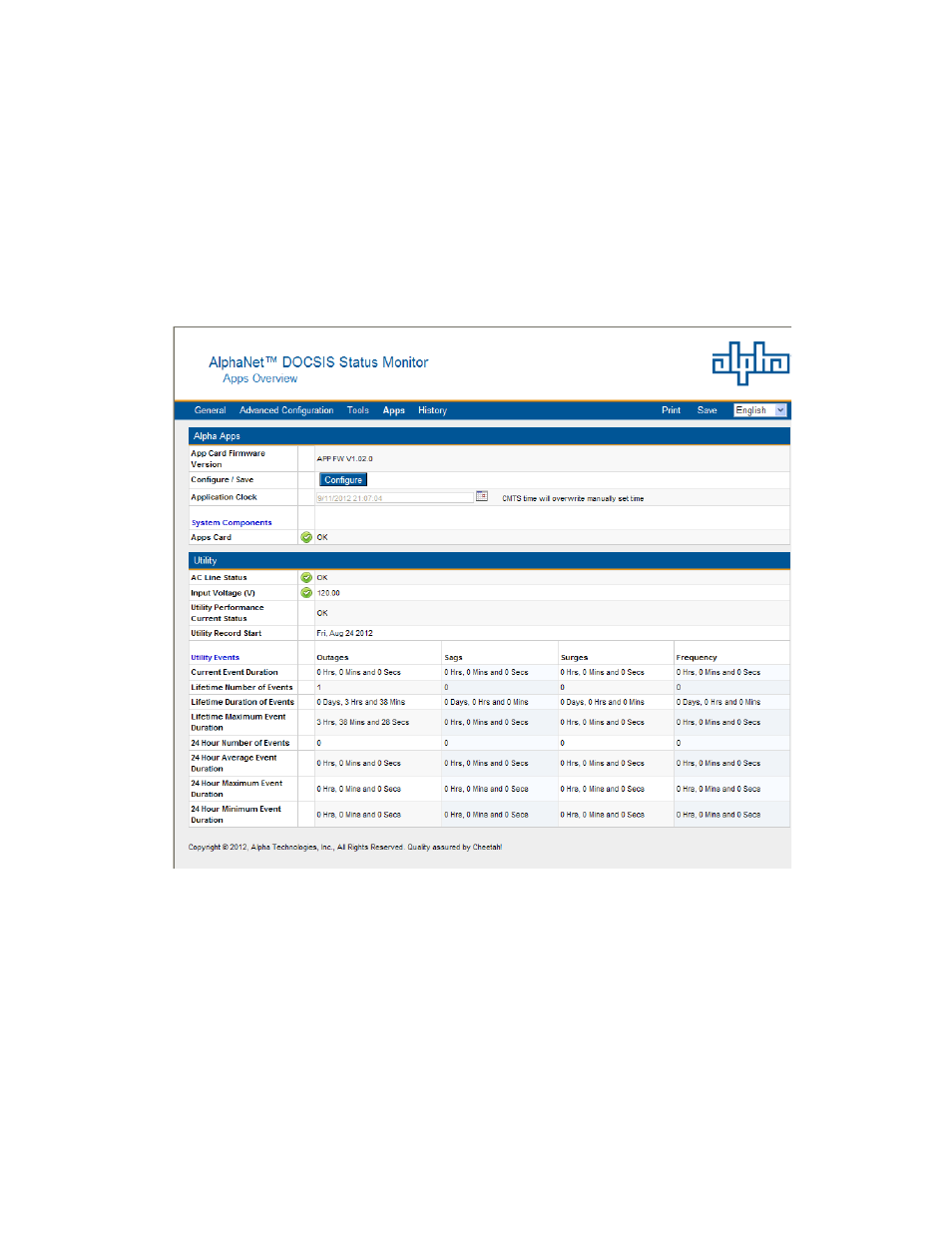

Fig. 4-17, AlphaApps and Utility Status Parameters
