22

746-257-B5-001, Rev. A1 (11/2013)

4.2

Remote Web Server Access

To remotely access the IDH4 Series transponder Web server utilizing a Web browser, follow the

procedure outlined below:

For Web server (HTTP) access, port 80 must not be blocked.

NOTE:

1. Connect the laptop or computer’s network interface port to the company’s Ethernet network.

2. Open a Web browser.

3. Enter the IDH4 Series' designated IP address (e.g., 192.168.1.124) into the Web browser’s address

field.

4. The IDH4 Series transponder’s Web server home page will appear (Fig. 4-4).

5. Click on the

Language drop-down menu located on the top right of the page to select a desired

language for the text information on the Web page. The language choices are English (default),

Spanish, Portuguese, French and German

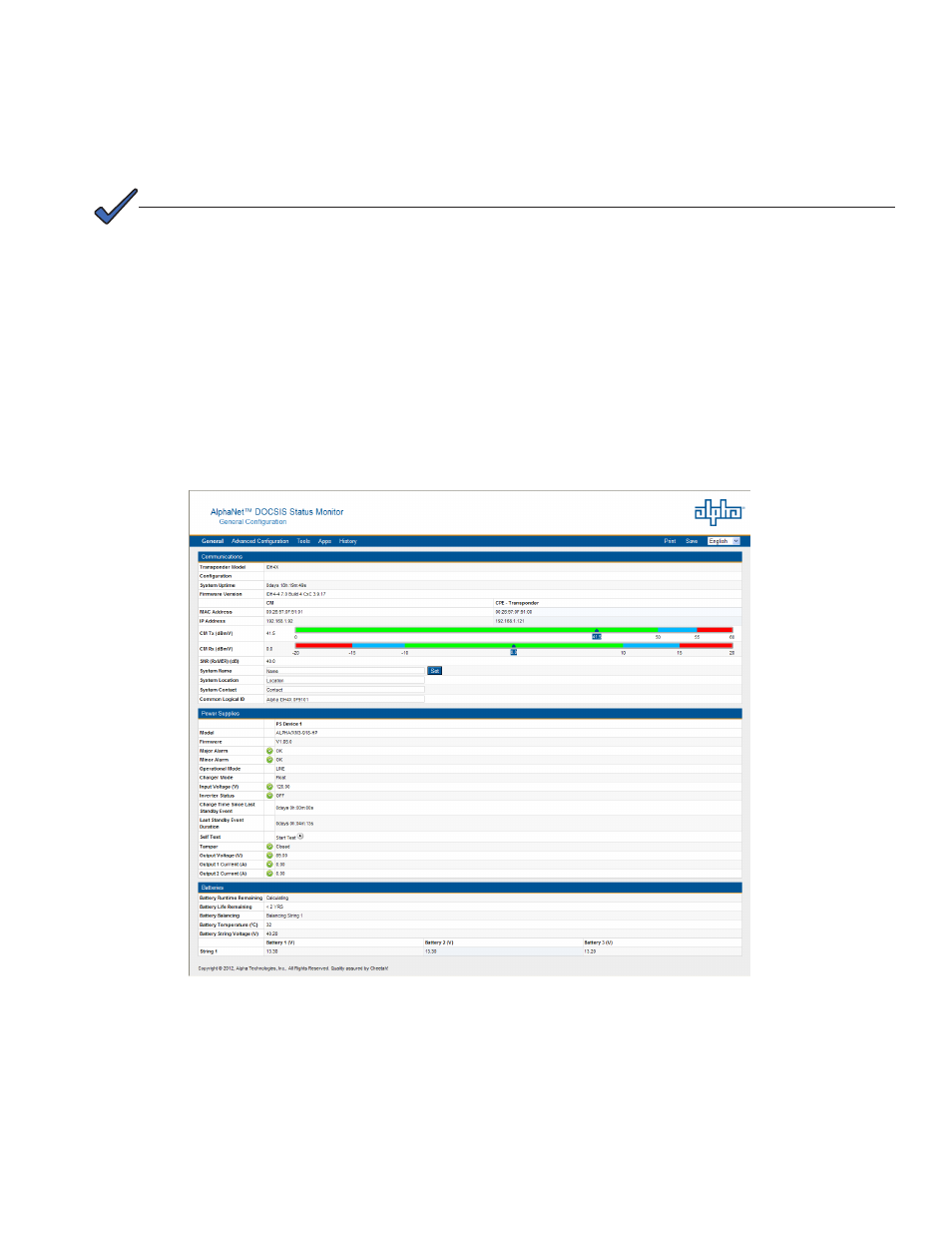

Fig. 4-6, Web Server Home Page

4.0 Web Interface, continued

(data values shown for illustration purposes only)
