87 746-257-B5-001, Rev. A1 (11/2013)

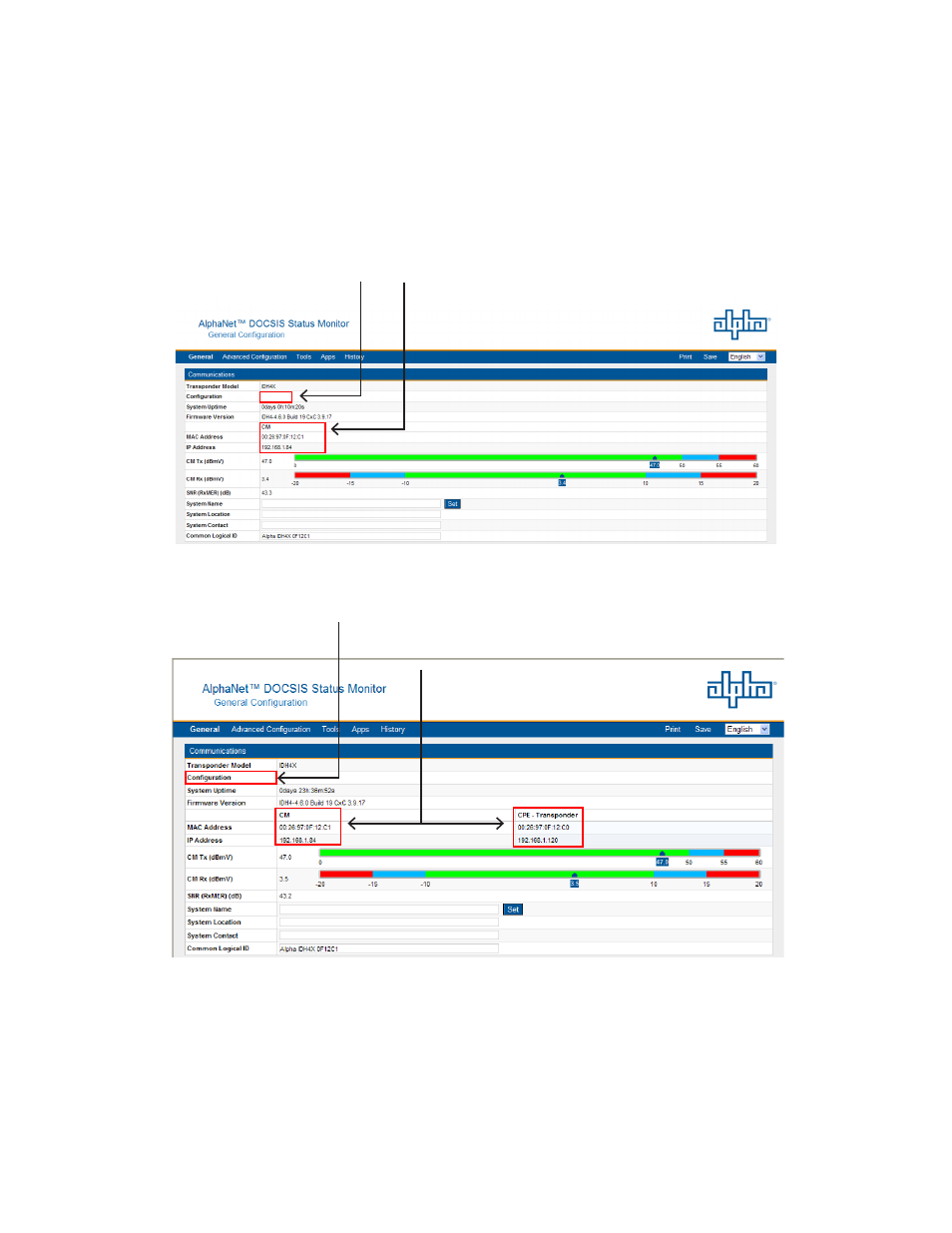

Fig. 13-3, Single IP IDH4 Series Web Page
(partial page only; data values shown for illustration purposes only)
13.0 Dual IP Mode (Addendum), continued
13.2 Web Comparison, Single IP Mode/Dual IP Mode
To easily determine the configuration of the transponder when viewing it on its web page, check the
Configuration Line as well as the entries for the CM and CPE addresses. A single IP transponder will
display a CM MAC address only, while a Dual IP transponder will also indicate a CPE address.
Fig. 13-4, Dual IP IDH4 Series Web Page
(partial page only; data values shown for illustration purposes only)
Indicates 1 IP address:
"Single IP" Status Monitor
Displays CM MAC address only
Indicates 2 IP addresses:
"Dual IP" Status Monitor
Displays CM and CPE addresses only
