4.0 Web Interface, continued

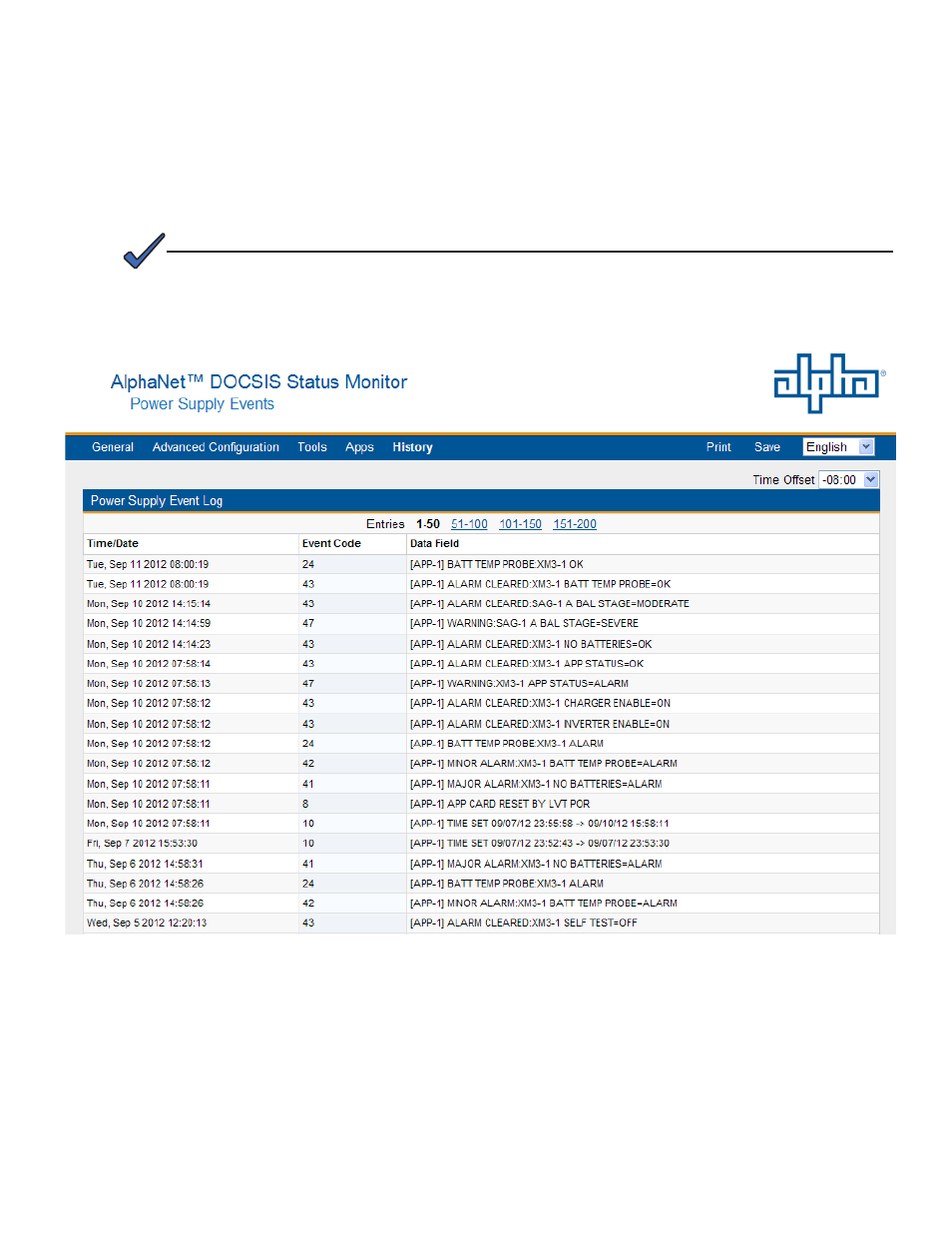

Fig. 4-21, Power Supply Event Log

4.13 Viewing Power Supply Event and Configuration Logs, continued

The

Power Supply event log contains events that occur in the normal course of daily power supply

operation such as IP address changes, inverter health, alarms, power outages, etc. The event log data

may be downloaded by clicking on the

Save button or printed by clicking on the Print button.

NOTE:

The AlphaApps card stores up to 768 event log entries that can be reviewed in the CSV file. The Power

Supply Event Log Web page displays up to 512 event log entries. The event log entries are displayed

in groups of 50. Navigate to particular events by selecting one of the numbered entry links listed at the

bottom of the page.
