31

746-257-B5-001, Rev. A1 (11/2013)

4.10 Viewing and Configuring Generator Settings via the Web Page

When a generator is connected to an IDH4X, the generator page listed in the Advanced Configuration

menu will populate a list of the various parameters and alarm statuses. Generator Self Tests may be

remotely started by clicking on the

Start Test button. When prompted, refer to Section 4.3.1, Web

Interface Security Levels for User Name and Security Password.

4.0 Web Interface, continued

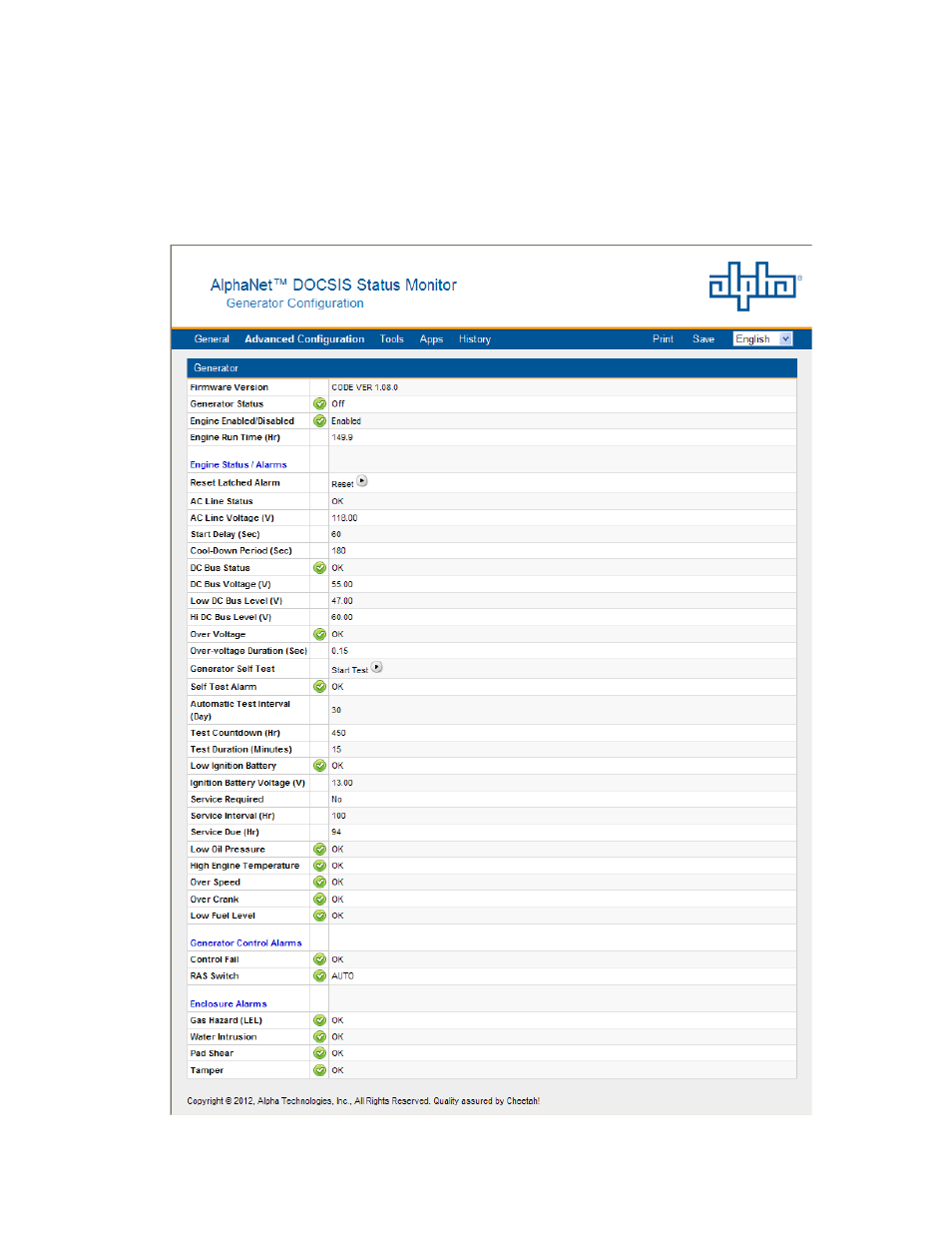

Fig. 4-16, Advanced Generator Status Screen

(data values shown for illustration purposes only)
