26

746-257-B5-001, Rev. A1 (11/2013)

4.5

Verifying Power Supply and Battery Parameters

The

General tab of the Web page also displays the common power supply and battery parameter values.

Important parameters such as current alarm status, inverter status and tamper status can be quickly

verified on this page. Additional power supply parameters can be viewed and edited on the Power Supply

page located in the Advanced Configuration menu.

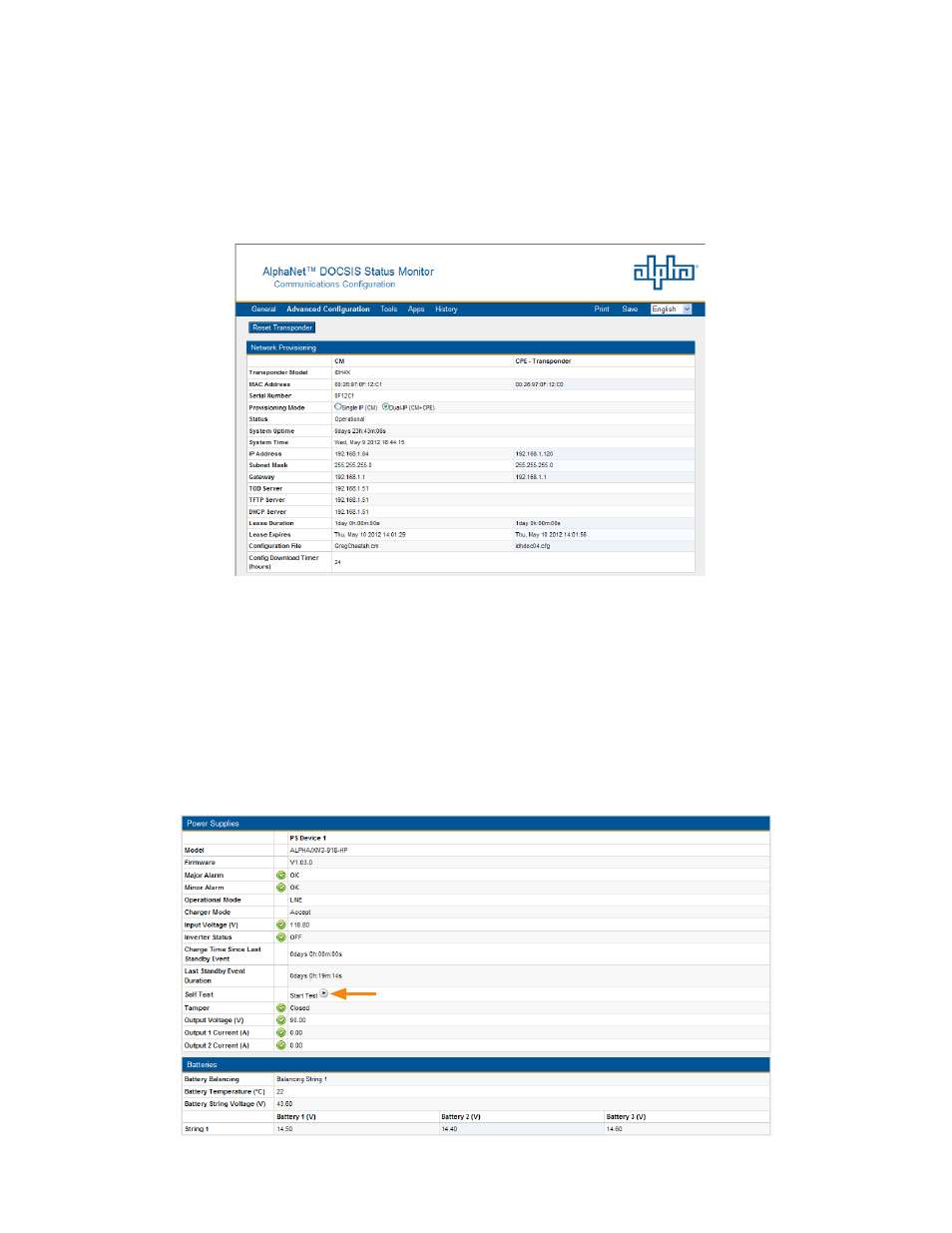

Fig. 4-11, Power Supply and Battery Parameters

4.0 Web Interface, continued

(data values shown for illustration purposes only)

4.6

Remote Self Tests via the Web Page

Remote Self Tests on power supplies may be started and stopped via the IDH4 Series Web page. This

requires a Level 1 login. Refer to

Section 4.3.1, Web Interface Security Levels for User Name and

Security Password.
To launch a remote Self Test, click on the

Start Test button.

To stop a remote Self Test before the predefined test duration, click on the

Stop Test button.

Fig. 4-12, Location of Start Button for Self Test

(data values shown for illustration purposes only)
