Page 74: Wire the sensor into the pvs 405d, Configure the pps 35 via the front panel
PVS 405D
Paging Sensor Port
AUDIO OUT
PVS 405D
PAGING
SENSOR
R
AUX
VOICELIFT
INPUT 5
+V
R
AUDIO OUT
R
INPUT 5
R
g
PVS 405D
AUX
VOICELIFT
Red (
+V)
Black (
+)
Drain Wire (
-)
a

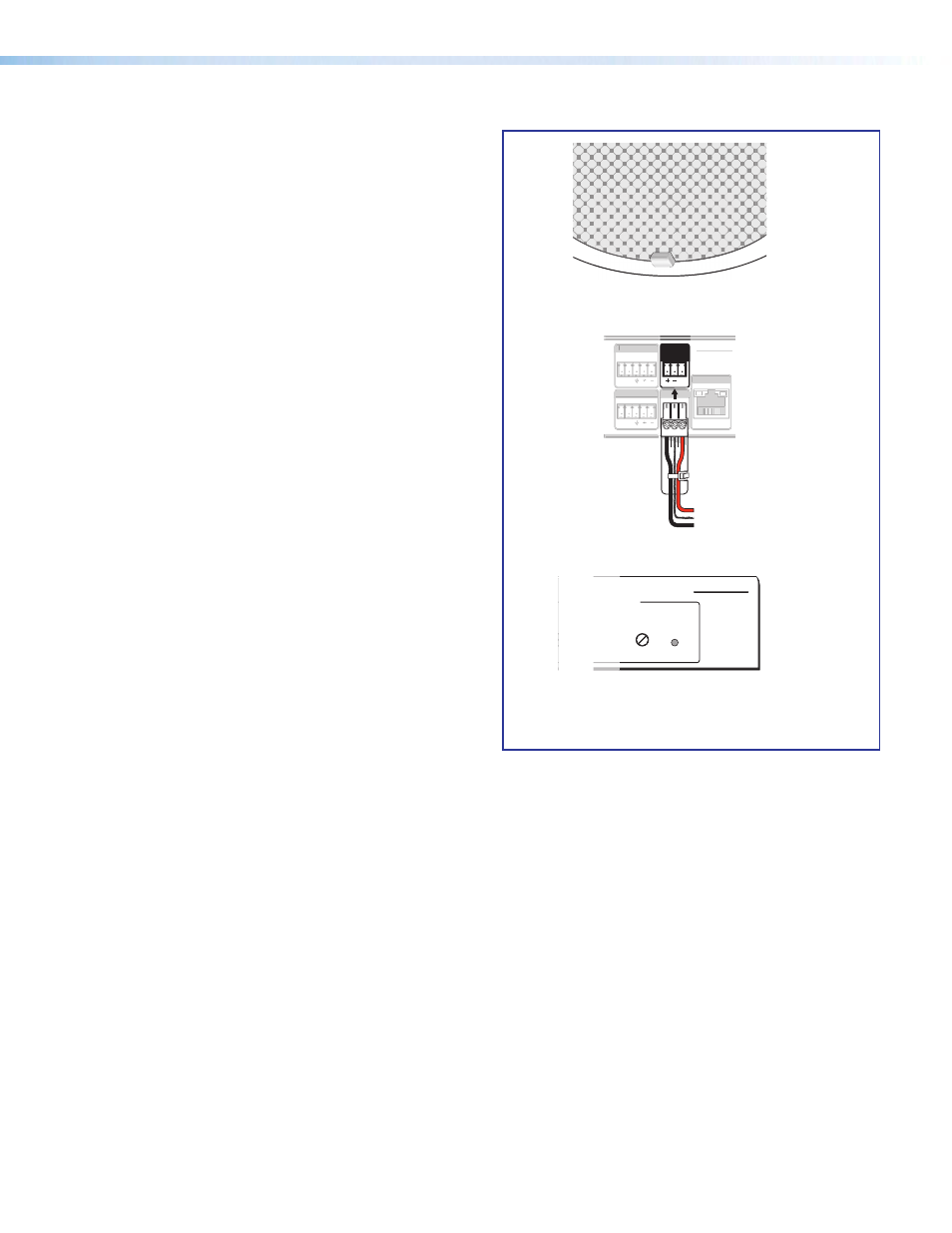

Attach the Sensor to the front grille of a speaker
c
Wire the sensor into the PVS 405D
PVS 405D
POLEVAULT SWITCHER
AUDIO LEVEL ADJUST
PEAK
NORMAL
SIGNAL
VOICELIFT
PAGING
SENSOR
SENSITIVITY
AUDIO LEVEL ADJ
PEAK
NORMAL
SIGNAL
VOICELIFT
J
d
Configure the PPS 35 via the front panel
Installation Procedure
1. Using the hook-and-loop fastener, attach the
PPS 35 to the front grille of a paging system
speaker that is located within fifty feet of the
PVS 405D.
2. Run the attached cable to the switcher location.
3. Connect the end of the three-wire cable to the
Paging Sensor port on the rear panel of the
PVS 405D. Wire the connector as shown at right.
4. Test and configure the PPS 35 using the
PVS 405D front panel, or using SIS commands, or
via the PCS configuration software.
