Slide the covers onto the PMK 560.
g. Where installed, it may be necessary to adjust
the sensitivity of the Priority Paging system.
During a test transmission of the paging system
rotate the Paging Sensor encoder until program
audio is no longer heard from the PoleVault
speakers. See the Priority Page Sensor
Installation Instructions, or page 67 of this
guide, for full details.
NOTE:
The Paging Sensor feature must be
enabled using the MLS Configuration software
or SIS commands prior to adjustment.

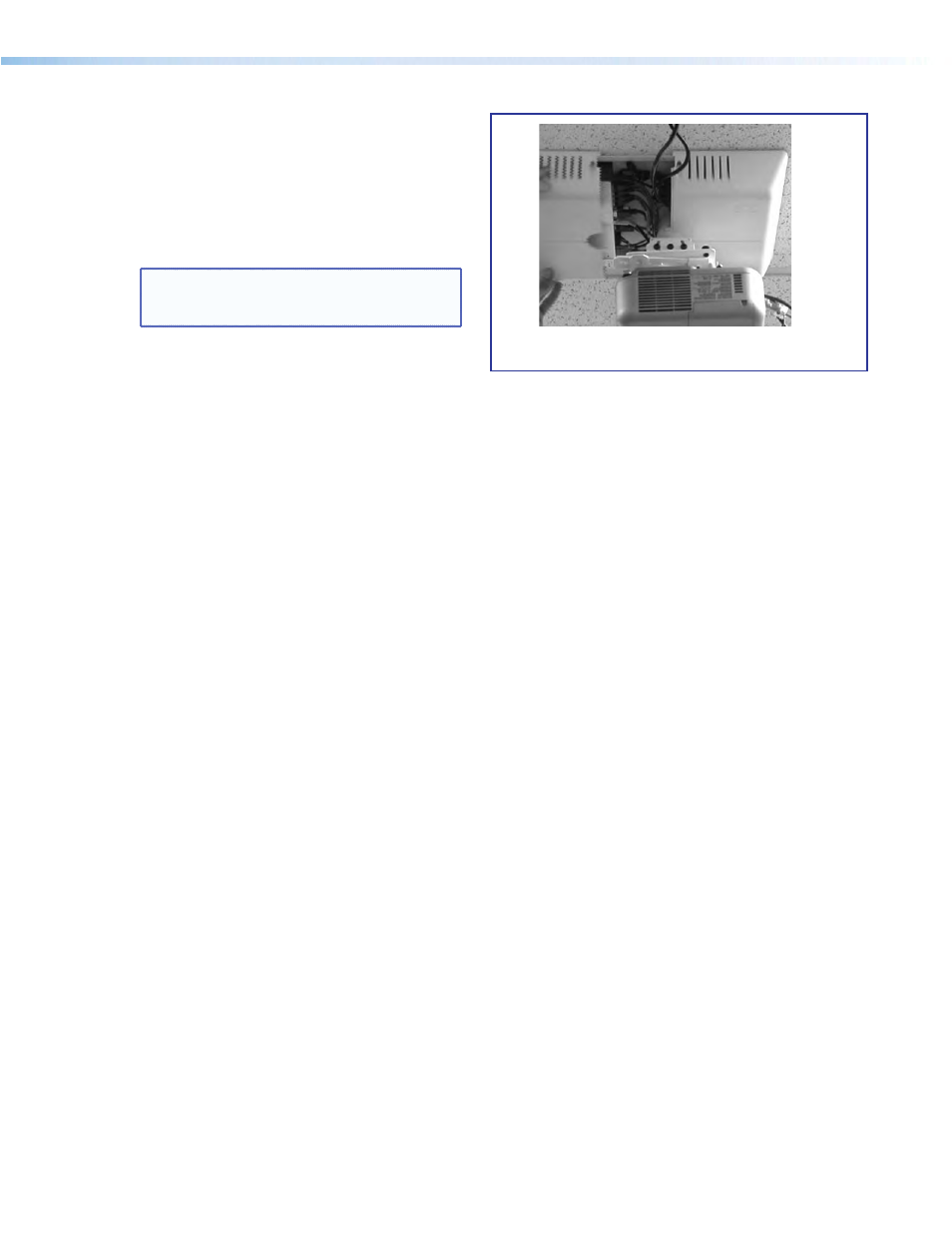

4. Final Installation.
a. Slide the covers of the PMK onto the base
plate, ensuring the power cable can exit the unit
through the power cable access slot.
b. Using a 5/32 inch hex wrench, tighten down the
four screws on the PMK to secure the sides in
place.
c. Check and tighten the adjuster plate locking
screws on the projector bracket.
d. Hole plugs can be used to cover any exposed
holes in the slotted pipe if necessary.
PoleVault Digital Systems • Installation — Stage 5 (Configuration)
65
