Location of MediaLink Controller and Wall Plates
•
Forward and side reach (for full details refer to a copy of ADA Standards for
Accessible Design, Sections 307 and 308, for ADA requirements).
•
Location of source devices:
Desk, table, or rack mounted, and proximity to proposed transmitter location (wall,
podium, or furniture)
•
Cabling obstacles:
Studs, utility pipes, power supply location (raceway installation needed?)
•
Network drop for MediaLink Controller:
Wall or floor cabled
Type and Location of the Speakers
•
Speaker type based on room ceiling and wall type
•
Total number and spacing of speakers
Based on ceiling height and room size
Audience seating and room acoustics
Desired spread and evenness of sound coverage and ambient noise level compensation
Student Desks
Teacher’s
Desk TV / VCR / DVD
Inputs
Screen/White board
Location
Windows
MLC controller
Location
PVT AV Wallplate Location
Projector/Switcher
Location
Speaker
Location
Each speaker covers
one-fourth of
listening area.

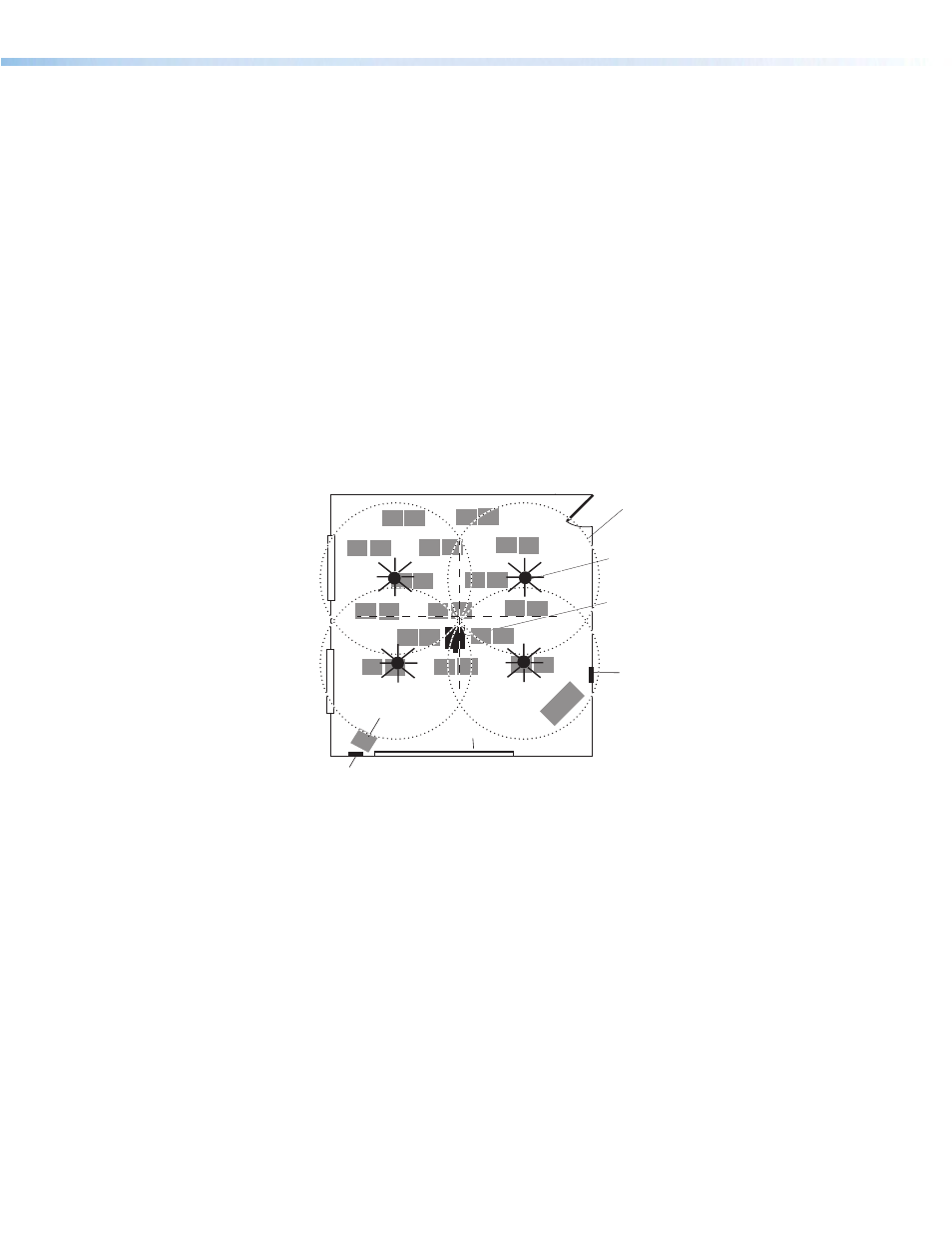

Figure 4. Example Classroom with Four Speaker Installation
PoleVault Digital Systems • Introduction 5
