A3. Secure the HDMI Cables Using the LockIt
Bracket.
The supplied Extron LockIt lacing bracket makes
it possible to secure a standard HDMI cable to the
PVS 405D switcher.
NOTE: The tie wrap can be tightened using
pliers or similar tools
.
To securely fasten an HDMI cable to the PVS 405D:
a. Plug the HDMI cable into the rear panel HDMI
connector.
b. Loosen the HDMI connection mounting screw
from the rear panel enough to allow the LockIt
lacing bracket to be placed over it. The screw
does not have to be removed.
c. Place the LockIt lacing bracket on the screw
and against the HDMI cable connector.
d. Tighten the screw to secure the bracket.

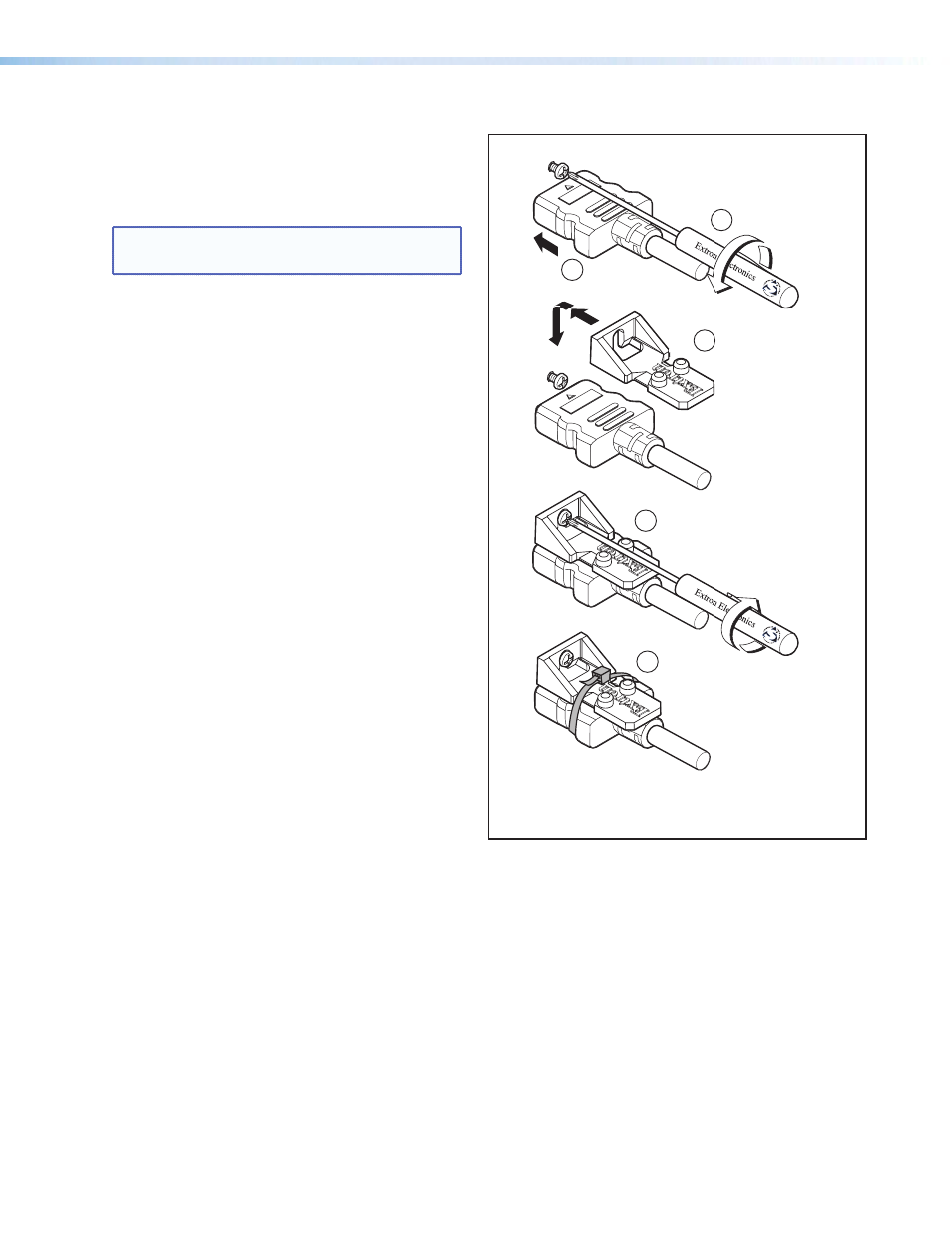

e. Place the included tie wrap around the HDMI
connector and the LockIt lacing bracket and
tighten as shown in the images at right.
c
OUTPUT
a
b
e
3
d
3
LL
LLLLL
Secure HDMI Cable with LockIt Bracket
PoleVault Digital Systems • Installation — Stage 4 (PMK 560 and PVS 405D)
42
