b

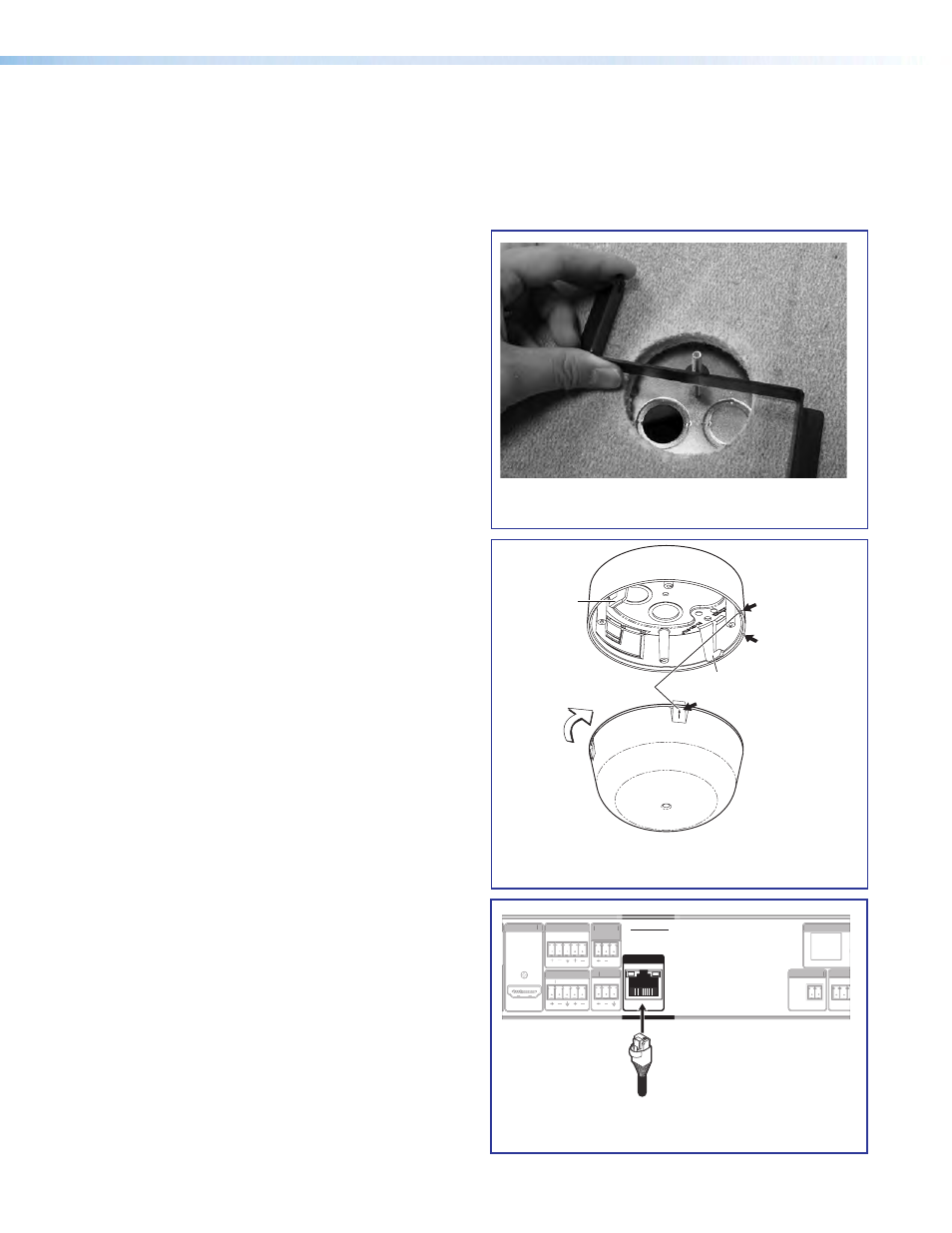

Attach the Z bracket to the ceiling tile

and the back plate.

g

Align the arrows on the housing rim and

the dome tab.

Arrow

Receiver
Dome

Twist to
Lock

Align Arrows

Arrow

Dot

Tab

Tab

i

Plug VoiceLift cable into PVS 405D.

Optional Accessory Installation — VoiceLift System

The Extron VoiceLift system is an easy-to-use, low-power, voice amplification system that ensures the speaker’s
voice can be clearly heard at a comfortable level throughout the classroom. Speech is picked up by the pendant
microphone worn by the teacher and is transmitted via wireless from a base station receiver and the PVS 405D
to the installed ceiling speakers.

For detailed installation information, see the
VoiceLift Installation Instructions, supplied
with the device.

VoiceLift System Included Parts:

VLP 202 Pendant Microphone

VLR 102 Receiver

Wall charger

Installation Procedure

1. Determine the optimal receiver location and

mark and drill a 2.5 inch diameter hole in the
ceiling tile where it is to be installed.

2. Insert the ceiling bracket screw through the

back plate (attached to the housing) and the
hole in the ceiling tile and loosely attach the Z
bracket.

3. Align the back plate knockout over the hole in

the ceiling tile and tighten the bracket screw to
secure.

4. Replace the ceiling tile.
5. Pull the communication and power RJ-45

Ethernet cable (and other secondary use
cables) through the receiver base and connect
the Ethernet cable to the Receiver Out port
(the RJ-45 connector on the left on the receiver
base).

6. If desired, set the Tone switch on the receiver

base. Set the Mix DIP switch on the receiver to
Off as the Aux In port (on the VLR) is not used.

7. Place the dome onto the housing, align the

arrows on the dome locking tab and on the
housing rim. Turn the dome until it locks in place
(approximately 1/8 turn).

8. Pull the cables from the receiver to the PVS

405D switcher location, through the pipe and
down into the PMK 560.

9. Disconnect the power from the switcher, and

plug the included VoiceLift RJ-45 into the PVS
405D VoiceLift receiver port.

10. Replace power to the switcher. This also

powers the VoiceLift receiver.

L

R

DO NOT

GROUND

OR SHORT

SPEAKER

OUTPUTS

4/8

Ω

3A MAX

POWER
12V

HDMI

1/2

SIG

LINK

SIG

LINK

3/4

INPUTS

OUTPUT

AUDIO OUT

PVS 405D

AMPLIFIED AUDIO OUT

PAGING

SENSOR

PVT IN

PVT IN

L

R

AUX

OVER PVT REMOTE

VOICELIFT

LAN 1

LAN 2

LAN 3

INPUT 5

+V

R

RS-232

Tx Rx

IR

S G

G

VoiceLift Input

HDMI

1/2

SIG

LINK

SIG

LINK

3/4

INPUTS

OUTPUT

AUDIO OUT

PAGING

SENSOR

PVT IN

PVT IN

L

R

AUX

INPUT 5

+V

R

G

R

V

L

DO NOT

GROUND

OR SHORT

SPEAKER

OUTPUTS

4/8

Ω

AMPLIFIED AUDIO O

OVER PVT REMOTE

RS-232

Tx Rx

IR

S G

G

R

OU

PoleVault Digital Systems • Optional Accessories
