D. PlenumVault System (PVM 220 PlenumVault Mount Kit)
The PVM 220 is UL Listed for use in plenum airspaces: meets UL 2043 for heat and smoke release.
Suitable for use in environmental air space in accordance with Section 300-22(C) of the National Electrical
Code, and Sections 2-128, 12-010(3) and 12-100 of the Canadian Electrical Code, Part 1, CSA C22.1. The
product has been additionally investigated to UL 2043, "Fire Test for Heat and Visible Smoke Release for
Discrete Products and Their Accessories Installed in Air-Handling Spaces. "
NOTES:
The following products are approved for use in the UL 2043 rated Extron PVM 220 enclosure as part of the Extron
PlenumVault System:
•
PVS 305SA IP PoleVault Switcher
•
PVS 405D PoleVault Switcher
•
CC 100C Network Codec
•
IPL 250 IP Link Controller
•
SW2 HDMI Switcher
In addition, any Extron product that has been individually tested and UL 2043 approved can also be used.
Contact Extron for a complete list of plenum rated products.
The PoleVault switcher and other AV devices are not supplied with the PVM 220.
IMPORTANT INSTRUCTIONS:
•
Installation of this product must be done by a qualified, professional installer.
•
Installation of this product (including the wiring of devices) must meet national electrical codes, and local building
standards and codes.
•
A readily accessible disconnect device shall be incorporated in the building installation wiring.
•
Building installation wiring to be protected by a UL Listed circuit breaker rated 20 A.
•
Observe all local and national building and safety codes, UL requirements, and ADA Accessibility Guidelines.
•
Where it goes: Installs onto a T-grid , within the air-handling space above a suspended ceiling near
(within 50 feet) of the projector location.
•
What it does: Supports and hides from view the installed PVS 405D switcher, power supply, and any
installed optional accessories.

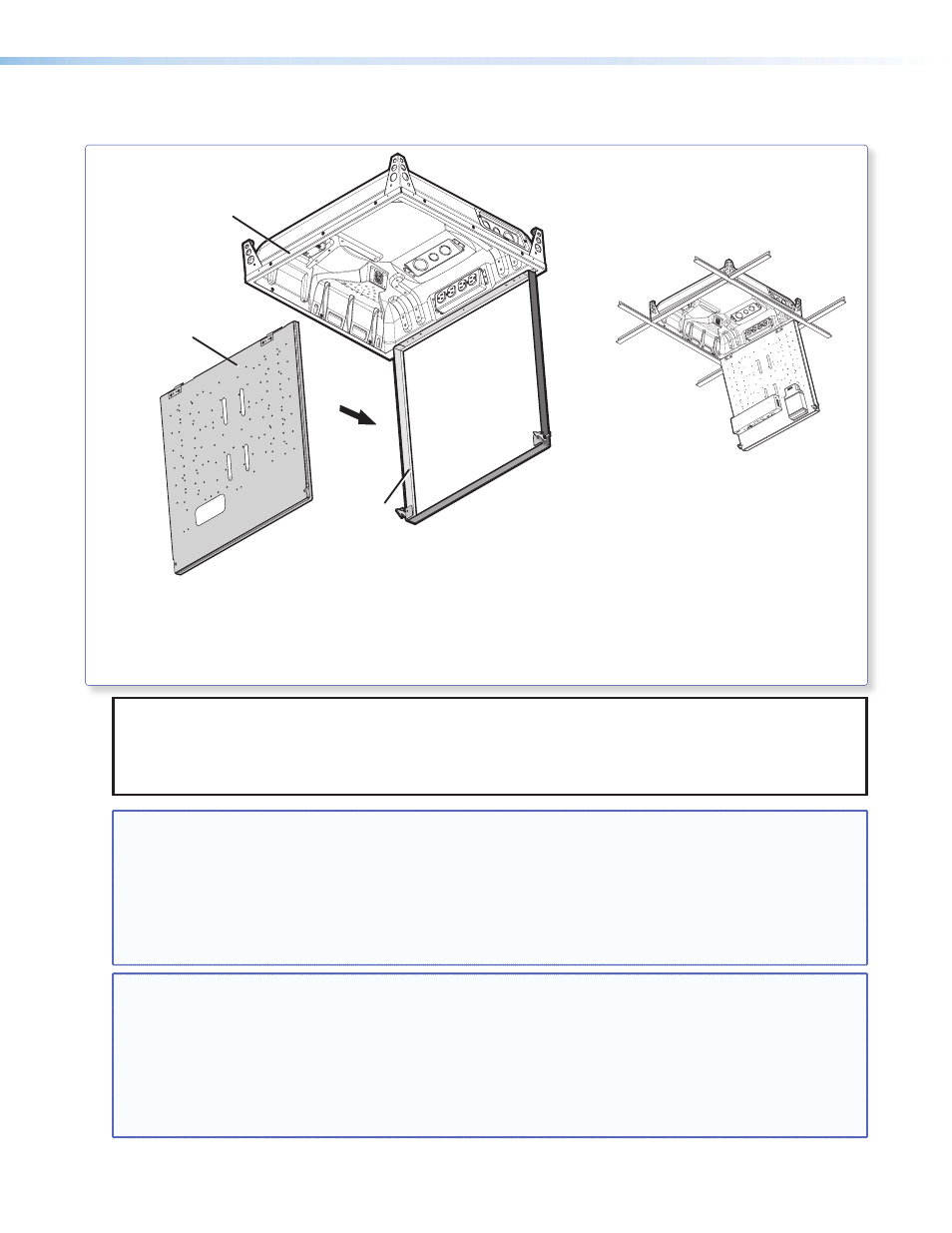

Door Frame
PVM 220 Enclosure
Device Mounting
Plate
PVS
405
SA I
P
POL
EVA
ULT
SW
ITC
HER
INPUT
S
AUD
IO L
EVEL AD
JUS
T
PAG
ING
SEN
SOR
SEN
SITI
VITY
PEA
K
NOR
MAL
SIG
NAL
VOIC
ELIFT
PEA
K
NOR
MAL
SIG
NAL
INP
UT
SELEC
T
CO
NF
IG
R
1 2
3 4
5
A
U
X
A
U
DI
O
E
PoleVault Digital Systems • Installation — Stage 4 (PVM 220 and PVS 405D)
52
