f. To mount the WMK 160 onto non-masonry
walls, at the desired site, locate and mark the
wall studs.
NOTES:
•
For ideal installation secure the base plate
to at least one wall stud
•
Drywall KapToggles can be used for holes
not aligned with studs.
•
Always use the widest spacing of screws
and KapToggles.
•
The base plate can be installed over an
existing electrical outlet.
g. Hold and level the base plate against the wall
and mark the positions of the slotted mounting
holes that are on the stud lines (see image at
right). Where applicable, mark the mounting
holes on the wall for drywall toggles.
h. If the cables are to be run behind the wall to the
WMK 160 location, mark the cutout area on the
wall for the signal cable access hole and cut out
the marked area.
i. Drill 1¾ inch (4.4 cm) deep pilot holes at the
hole marks.
j. At the pilot holes, screw in the screws until a
gap of about 3/8 inch (9 mm) remains between
the wall and the screw heads.
k. Align the slotted mounting holes in the base
plate over the installed screws, then slide the
plate down so the screw fit into the slots.
l. Verify level and position, and tighten down all
the screws to secure the plate flush to the wall.
NOTE:
If using toggle assemblies, see figure at
right for method.
B2. Install the Switcher Onto the Base Plate.
a. Place the switcher (base up) on a flat surface.
Place the mounting plate flat on the switcher
base with the plate tabs (raised section up)
over the edge of the front panel. Align the two
mounting holes in the switcher base with the
corresponding holes on the mounting plate.
Secure the plate to the switcher with the
supplied 4-40 x ¼ inch screws.
b. Secure the switcher mounting plate (with
switcher attached) to the base plate by sliding
the two tabs into the slots at the bottom edge
of the base plate. Secure to the standoffs with
4-40 x 3/16 inch screws.
Wall Studs
Cutout for
Electrical
Outlet
Level
Marker for
Pilot Hole
Cutout for Signal Cable Access
Mounting
Holes
WMK 160
Base Plate

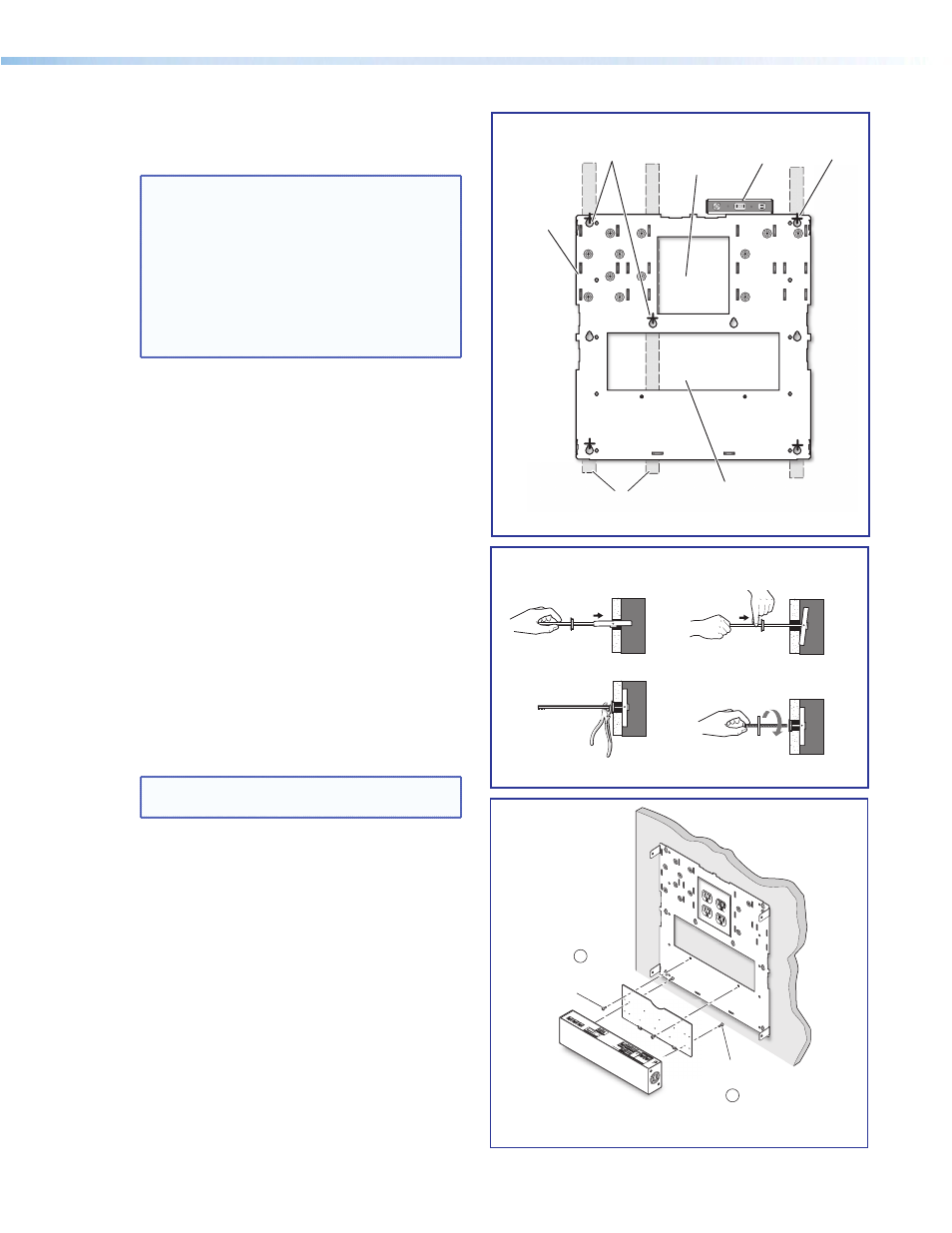

Mounting the base plate on a non-masonry wall.
a. Grasp handle, collapse
toggle and insert into wall.
b. Slide plastic washer
down into pilot hole.
c. Cut off handle close to wall. d. Hand screw in pan head
bolt until 1/8" gap remains.
Toggle Assembly Installation
(2) 4-40 x 1/4"
screws
(2) 4-40 x 3/16"
screws
L
R
DO
NOT
GROU
ND
OR
SH
OR
T
SPE
AK
ER
OU
TPU
TS
4/8
Ω
3A
MA
X
POW
ER
12V
HD
MI
1/2
SIG
LIN
K
SIG
LIN
K
3/4
INP
UT
S
OU
TP
UT
AU
DIO
O
UT
PVS
40
5SA
IP
AMP
LIFIE
D AU
DIO
O
UT
PAG
ING
SE
NSO
R
PV
T IN
PV
T IN
L
R
AU
X
OVE
R P
VT
RE
MO
TE
VO
ICE
LIFT
LA
N 1
LAN
2
LAN
3
IN
PU
T 5
+V
L
R
RS
-232
Tx
Rx
IR
S
G
G
a
b
Attach switcher to the mounting plate and secure
both to the base plate.
PoleVault Digital Systems • Installation — Stage 4 (WMK 160 and PVS 405D)
