iv. Secure the mounting plate (and switcher) to
the base plate by aligning the two small tabs
on the back of the mounting plate over the
corresponding tabs on the base plate (see
figure at right). Slide the mounting plate (and
switcher) down into place. Secure it to the
base plate by passing a 6-32x¼ inch screw up
through the securing tab (see figure at right).
Tighten down the screw.
C3. Run the Cables to the USFM 100 Lcation.
Run signal cables from the PoleVault input
wallplates, control device location, and the speakers
to the USFM 100 location. Cables can be routed
behind the walls, through a surface raceway (such
as Wiremold 700 or 2400), or through conduit
directly to the USFM 100.
If running cable behind the walls:
Run all the cables from all the locations to the USFM
100 and through the access hole (cut in step C1d).
If using a surface raceway or conduit:
i. Turn over the left or right cover as needed, and
from the inside, cut the most suitable marked
raceway or conduit knockout for the cable to
enter the USFM 100. Remove the knockout.
ii. Run the raceway or conduit from all locations
to the marked entrance and attach to the
baseplate.
(1) 6-32 x 1/4"
Screw
(2) 4-40 x 1/4"
Screws
Mounting Plate
PVS 405D
Switcher
Securing
Tab
USFM 100 Base Plate
32 (1) 6-3
w Screw
S 4055D
tcherr
Tab
L R
DO NOT GROU ND OR SH OR T SPE AK ER OU TPU TS 4/8 Ω
3A MA X POW ER 12V
HD MI
1/2 SIG LIN K SIG LIN K 3/4
INP UT S
OU TP UT AU DIO O UT
PVS 40 5SA IP
AMP LIFIE D AU DIO O UT
PAG ING SE NSO R
PV T IN
PV T IN L R
AU X
OVE R P VT RE MO TE
VO ICE LIFT
LA N 1 LAN 2 LAN 3
IN PU T 5 +V
L R
RS -232 Tx Rx
IR S G G

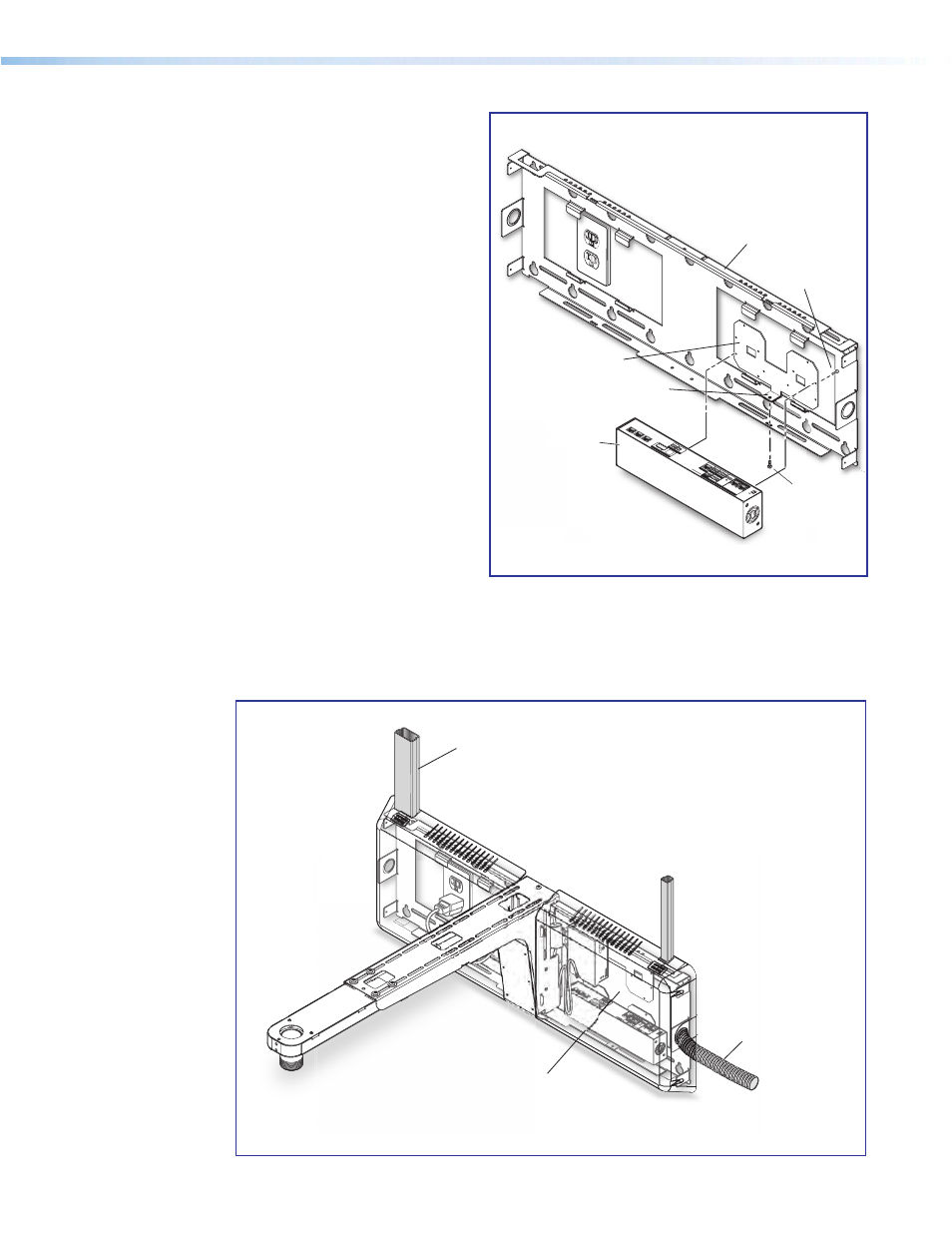

Mounting the Switcher onto the Base Plate.
Signal Cable Access
Cutout Option
2400
V700
Raceway Option
Conduit Option
Options for Running the Cables to the USFM 100
PoleVault Digital Systems • Installation — Stage 4 (USFM 100 and PVS 405D) 49
