Inventory — Wall
Vault Systems (USFM 100)
Extron
USFM 100
Plastic Enclosure Cover
Boom Arm
Base Plate
Arm Cover (buttom)
Arm Cover (top)
Arm Cover (front)
Device Mounting Plate

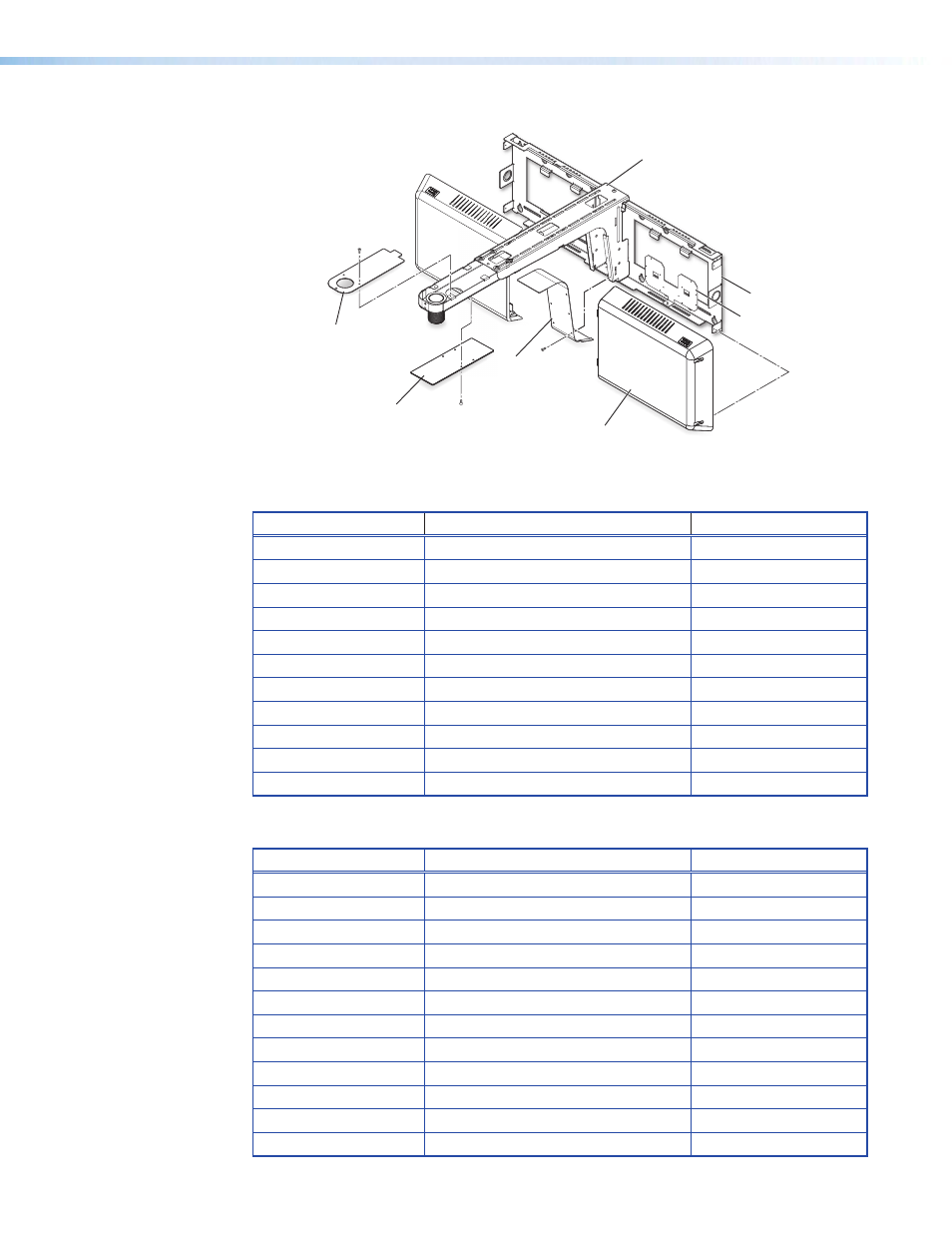

Figure 5.
USFM 100 for WVS 200D and WVS 400D WallVault Systems
42-209-03 WVS 200D
Part Number
Description
Quantity
26-621-50
MLC IR cable, 50 ft
1
26-626-50
MLC PW/RS-232 cable, 50 ft
1
26-627-35
Speaker cable, 35 ft
2
26-667-03
Micro HDMI cable, 3 ft
1
26-696-35
STP 201P cable, 35 ft
1
42-120-03
FF 120 speakers
1 pair
60-773-03
UPB 25
1
60-818-03
MLC 104 IP Plus
1
60-1235-01
PVS 405D
1
60-1335-03
PVT SW HDMI RGB D
1
70-744-03
USFM 100
1
42-210-03 WVS 400D
Part Number
Description
Quantity
26-621-50
MLC IR cable, 50 ft
1
26-626-50
MLC PW/RS-232 cable, 50 ft
1
26-627-35
Speaker cable, 35 ft
2
26-667-03
Micro HDMI cable, 3 ft
1
26-696-35
STP 201P cable, 35 ft
2
42-120-03
FF 120 speakers
1 pair
60-773-03
UPB 25
1
60-818-03
MLC 104 IP Plus
1
60-1235-01
PVS 405D
1
60-1270-03
PVT SW HDMI D
1
60-1335-03
PVT SW HDMI RGB D
1
70-744-03
USFM 100
1
Part Number
Description
QTY
26-621-50
MLC IR cable, 50ft
1
26-626-50
MLC PW cable, 50ft
1
26-627-35
Speaker cable, 35ft
2
26-667-03
Micro HDMI cable, 3ft
1
26-696-35
STP 201P cable, 35ft
2
42-120-03
FF 120 speakers
1 pair
60-773-03
UPB 25
1
60-818-03
MLC 104 IP Plus
1
60-1235-01
PVS 405D
1
60-1270-03
PVT SW HDMI D
1
60-1335-03
PVT SW HDMI RGB D
1
70-744-03
USFM 100
1
