2. Configure the System — Global Configurator.
a. Download and install the Extron Global
Configurator (GC) configuration program
(available at
www.extron.com ) on the PC.
b. Ensure the PC and the MLC 104 IP Plus are
connected to the LAN and powered on.
NOTE: Alternatively, connect a 2.5 mm TRS
configuration cable (part number
70-335-01) to the PC and to the front panel
configuration port of the
MLC 104 IP Plus.
c. Launch the Global Configurator program and
click on Help, Contents, or press .
d. Select the MLC 104 IP Plus/PoleVault
system from the drop-down box in tyhe Help
file. Follow the instructions on the Help page to
configure the MLC.
e. To move to the next page in the Help file (as
shown in the yellow box, figure 2e), click the NEXT
button above the drop-down box. Repeat as
needed, following the instructions on the pages
to configure the MLC 104 IP Plus.

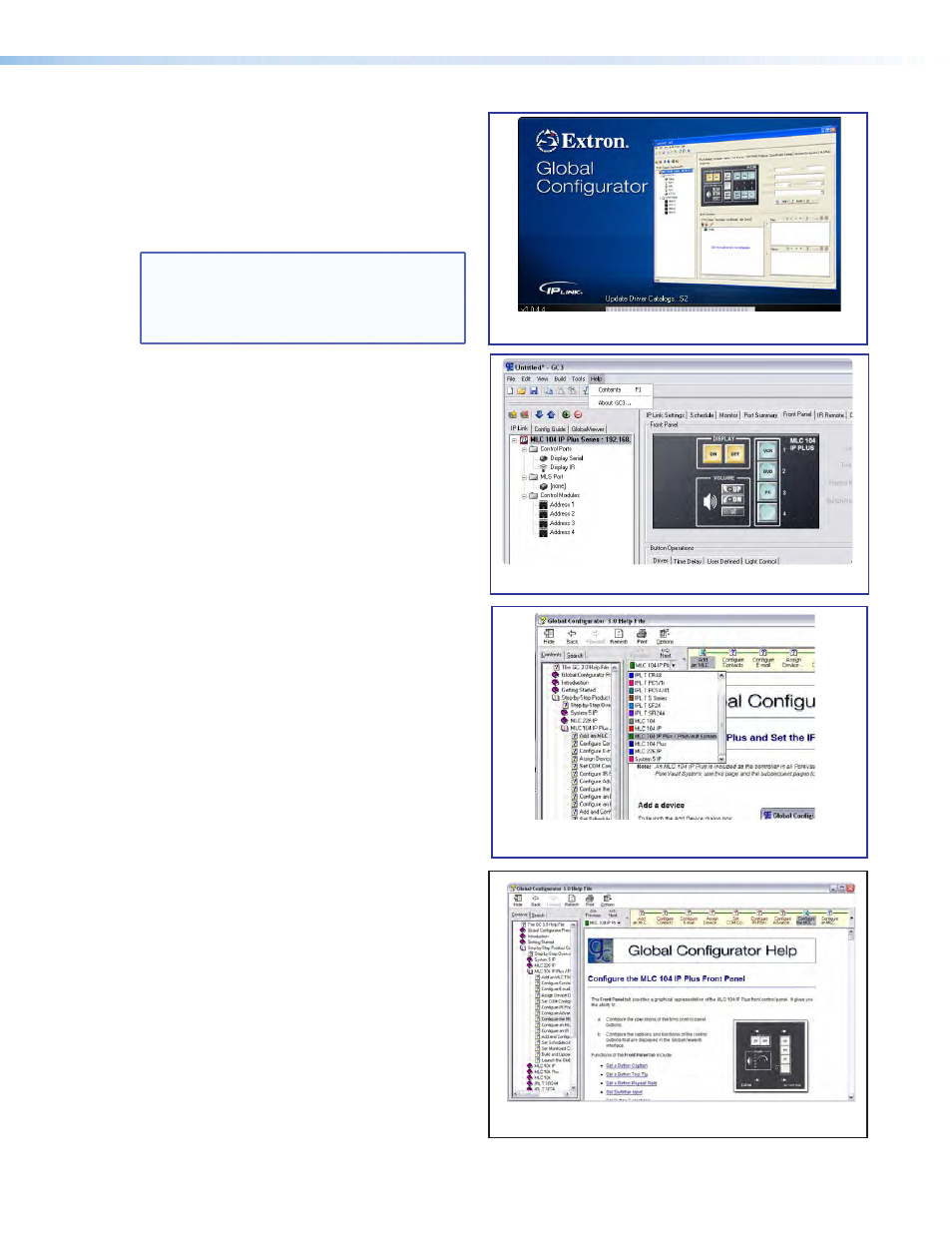

Ç
Load Global Configurator software
î
Launch Global Configurator
ï
Select MLC 104 IP Plus/PoleVault IP System
Ú
¶
Configure the MLC 104 IP Plus
PoleVault Digital Systems • Installation — Stage 5 (Configuration) 62
