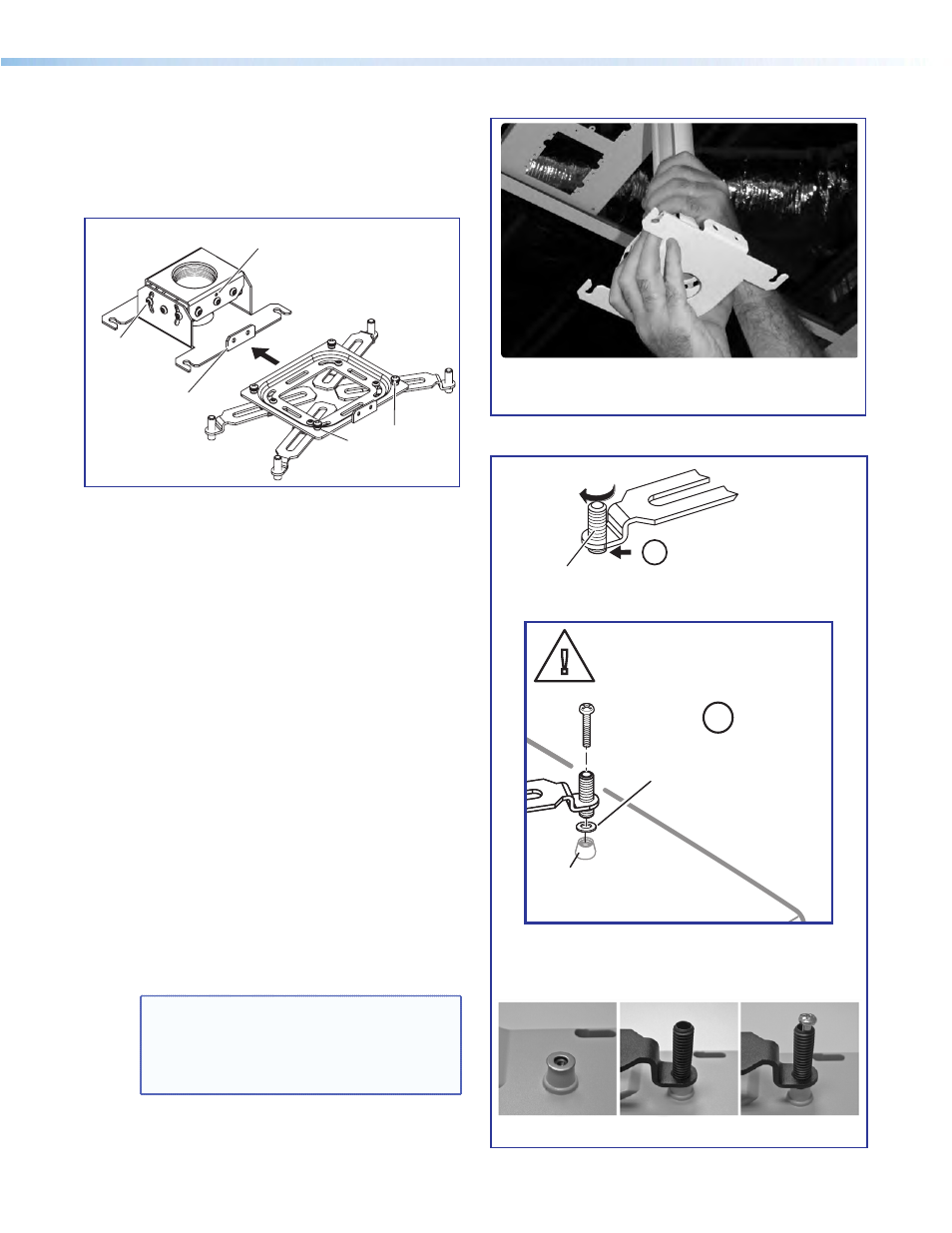

Screw the adjuster plate onto the base of

the pipe.

d. Using a 3/32 inch hex wrench, back out the

set screws on the top portion of the adjuster
plate (see

in the image below) of the UPB 25.

Screw the plate onto the base of the pipe. Align
it so the security flange is at the rear

Adjuster Plate
Locking Screws (4)

Projector

Bracket

Adjuster
Plate

Loosen the four adjuster plate
locking screws and slide the
adjuster plate away from the
projector bracket.

Set Screws (2)

Security Flange

Pivot Screws

e. Carefully follow the steps below to install the

projector bracket on the projector.

nvert the projector on a flat surface to access

the mounting points. Use a blanket or a
similar item under the projector to protect the
projector and the surface.

ii.

On each arm,

rotate the barrel (on the end

of the arm) so that it only just protrudes from
the base of the arm (see the figure at right).

iii.

Select the correct sized mounting screws and
the appropriately sized washers that fit the
projector mounting point inserts.

iv.

To attach the arms to the projector:
The next step is critical as it provides a
flat surface for the bracket to sit on, and
must be done for each mounting point.

•

Place a washer on a mounting point
(see the figure at right).

•

Position the arm so the barrel is over the
washer.

•

Insert the mounting screw down through
the barrel and washer, and into the
threaded insert (mounting point). Lightly
tighten the screw by hand.

NOTE: If using the 3- or 4-millimeter

screws, place an additional small washer
under each screw head, on top of the
barrel, as well as one on the top of the
mounting point.

Repeat step

iv for all projector mounting

points.

Rotate the barrel
until it just protrudes
below the arm.

Barrel

Mounting Point
on Projector Base

Place washer on

mounting point.

ATTENTION:

This is critical as it provides a flat surface
for the bracket to sit on.

Place the washer. Align the barrel. Insert the screw.

PoleVault Digital Systems • Installation — Stage 1 (Screen and Projector)
