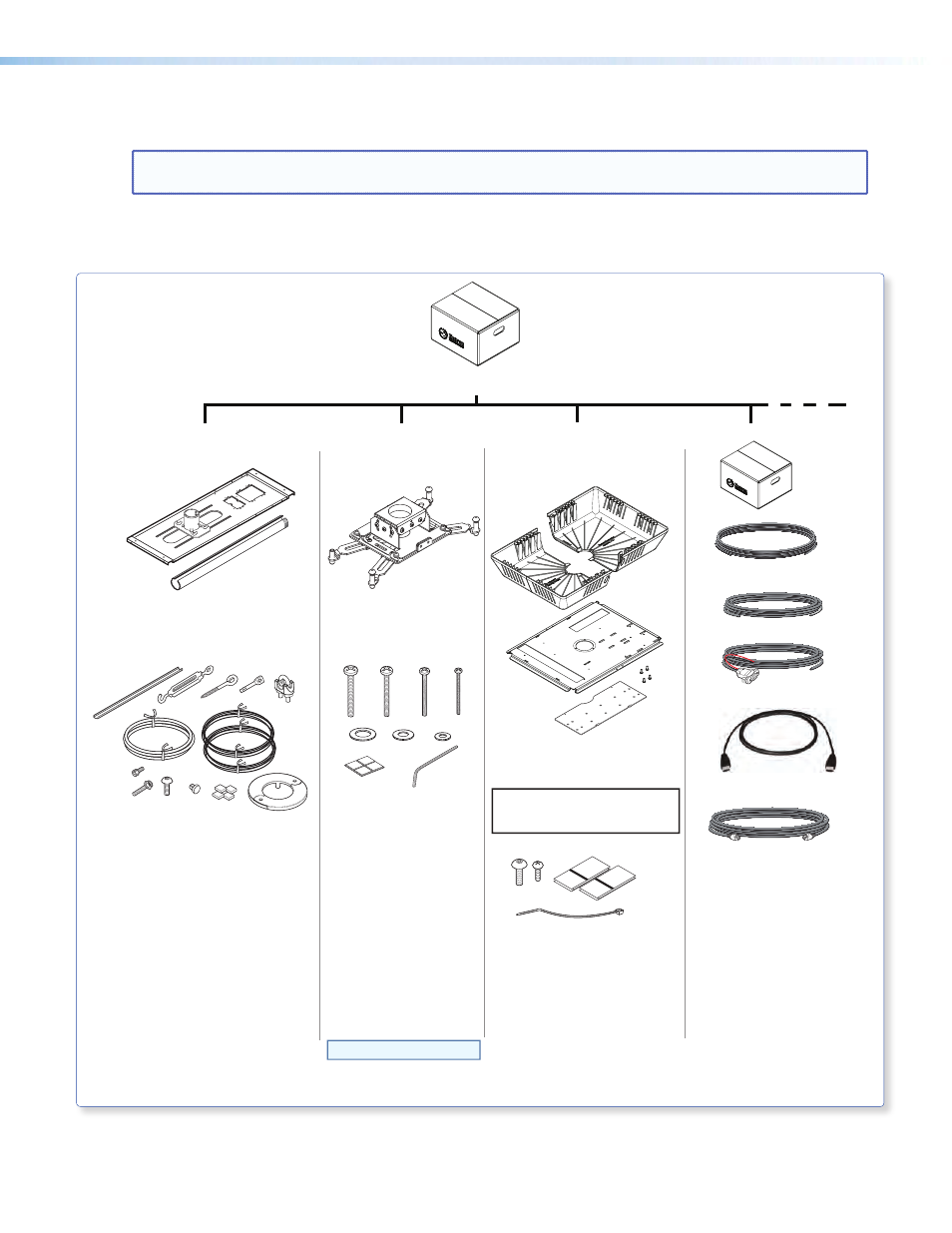

Inventory — PoleVault Digital System
PoleVault Digital System
42-207-03 or 42-208-03
PMK 560
Pole Mount Kit
PMK 560 White
70-1034-03
(4) 10-32 Cover screws
(3) 4-40 screws
(2) Velcro
® pads
(1) Tie wrap
PoleVault Digital System Devices
and Hardware
PCM 340 UPB 25 PMK 560 Cables
(1) SPK 18, 35 ft
(1) MLC, PW/RS232/VC, 50 ft
(1) MLC IR, 50 ft
STP 201P Patch, 35 ft
Quantity varies depending
on PVS system ordered.
These may be boxed separately
or loose inside larger box.
The PVS 405D may come
pre-installed on the PMK 560
(1) Snap-in trim piece
(4)Turnbuckles
(5) Lag eye bolts
(5) Concrete anchors
(2) Cable clamps, Galv steel
(1) Safety wire (15 ft. 1/8 in. dia)
(2) Tie wire (30 ft., 14 AWG)
(4) T-frame screws
(2) Set screws
(1) Location screw
(11) Hole plugs
(4) Adhesive pads
(1) 25 in. Slotted pipe
(1) Escutcheon ring
PCM 340
Projector Drop Ceiling Mount
PCM 340 White
70-656-23
Accesories
UPB 25 White
60-773-03
UPB 25
Universal Projector Bracket
(4) M6 x 40 mm screws
(4) M5 x 40 mm screws (4)
M4 x 40 mm screws (4) M3
x 40 mm screws
(4) 0.328 inch ID washers
(4) #10 washers
(4) #6 washers
(4) Adhesive pads
(1) Hex key
Accesories
Accesories
NOTE�Items not drawn to scale
(1) HDMI Micro, 3 ft
•
PVS 200D (part number 42-207-03) includes one PVT SW HDMI D
•
PVS 400D (part number 42-208-03) includes one PVT SW HDMI RGB D and one PVT SW HDMI D. NOTE: The PoleVault Digital System inventory is shown on this and the next page. For WallVault and
PlenumVault Digital Systems, see the inventory lists on pages 8 to 11.
The PoleVault Digital System (PVS xxx) ships in two boxes. The larger box contain the devices and hardware,
individually boxed and labeled. The smaller box contains only the FF 120 speakers.
Carefully check all the received items against the lists on this and the next page..
PoleVault Digital Systems • Introduction 6
