Kits
•
PVS 200D (part number 42-207-03) includes one PVT SW HDMI D
•
PVS 400D (part number 42-208-03) includes one PVT SW HDMI RGB D and one PVT SW HDMI D.
NOTE: If any items in the PoleVault Digital System boxes are damaged or missing, contact the Extron Technical
Support Hotline (see rear cover for contact numbers).

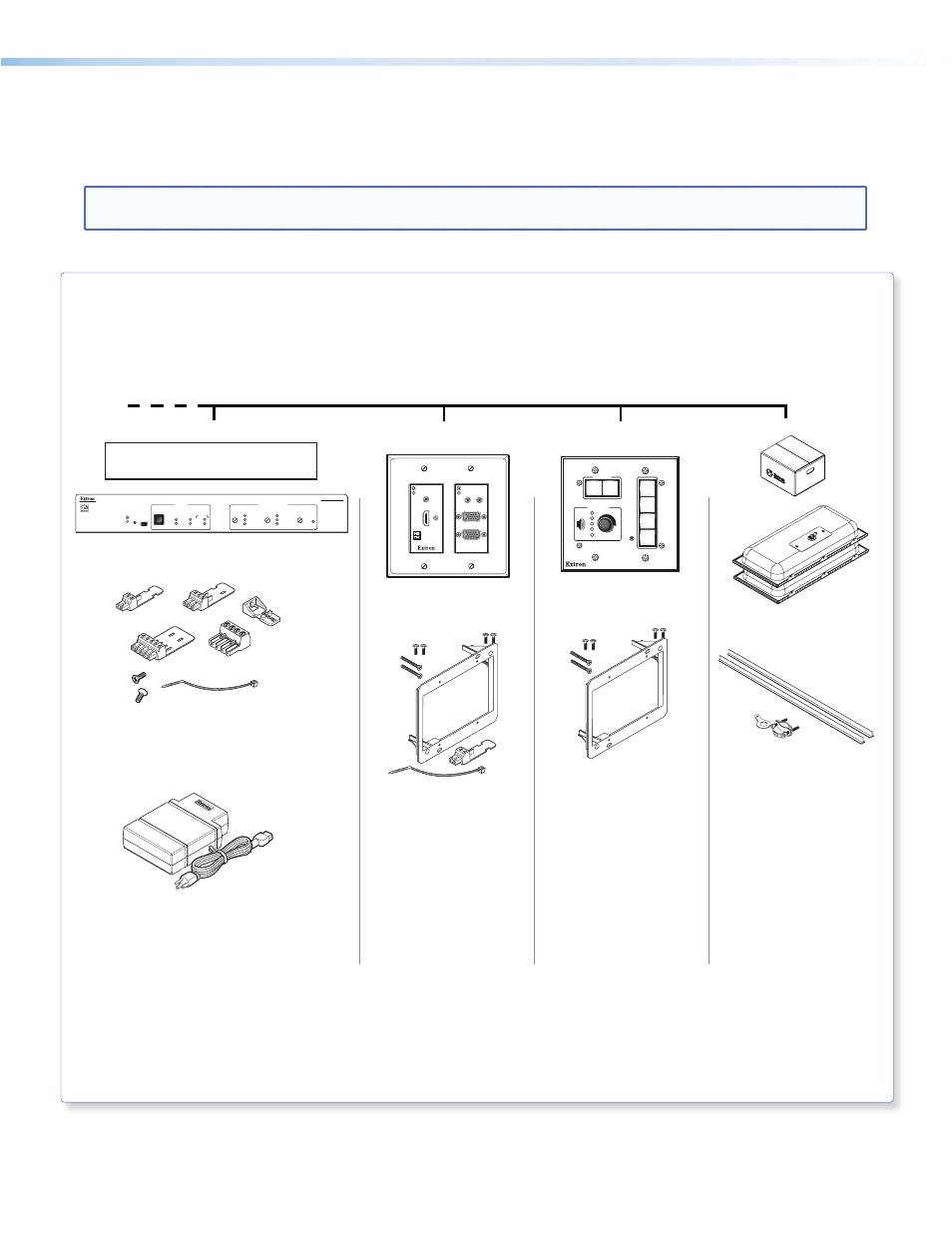

PoleVault Digital System
42-207-03 or 42-208-03
MLC 104 IP Plus
60-818-03
MLC 104 IP Plus
PVS 405D
PoleVault Digital Switcher
60-1235-01
(1) 2-pole connector
(3) 3-pole connector
(2) 5-pole connector
(1) Audio connector, 4-pole
(2) Securing screws
(7) Tie wraps
(1) LockIt
PVS 405D
(1) Power supply
(1) Power cord
PoleVault Digital System Devices
and Hardware, cont’d
PVT SW HDMI RGB D
White
60-1335-03
(1) Mud ring
(4) PVT mounting screws
(1) Decora
® Faceplate
(4) Faceplate screws
(1) 2-pole connector
(1) Tie wrap
PVT SW HDMI RGB D
or optional
PVT SW HDMI D
60-1270-03
FF 120
42-120-03
(2) Cable clamps - Anchor ring
(2) T-rails
FF 120
(1) Mud ring
(8) Mounting screws
(4) Faceplate screws
(2) Faceplates -
(1) White (on unit)
(1) Black
CONFIG
DISPLAY
VOLUME
MLC 104 IP Plus
ON VCR
DVD
PC
OFF 1
2
3
4
This item may come pre-installed
on the PMK 560
PVS 405D
POLEVAULT SWITCHER AUDIO LEVEL ADJUST INPUTS
1
2
SELECT
CONFIG R
PEAK
NORMAL
SIGNAL INPUT
3
4 5
AUX
AUDIO PEAK
NORMAL
SIGNAL VOICELIFT PAGING
SENSOR
SENSITIVITY
VGA IN
AUDIO
IN OUT
LOCAL OUT
AUDIO IN
HDMI IN
IR OUT
S
G
