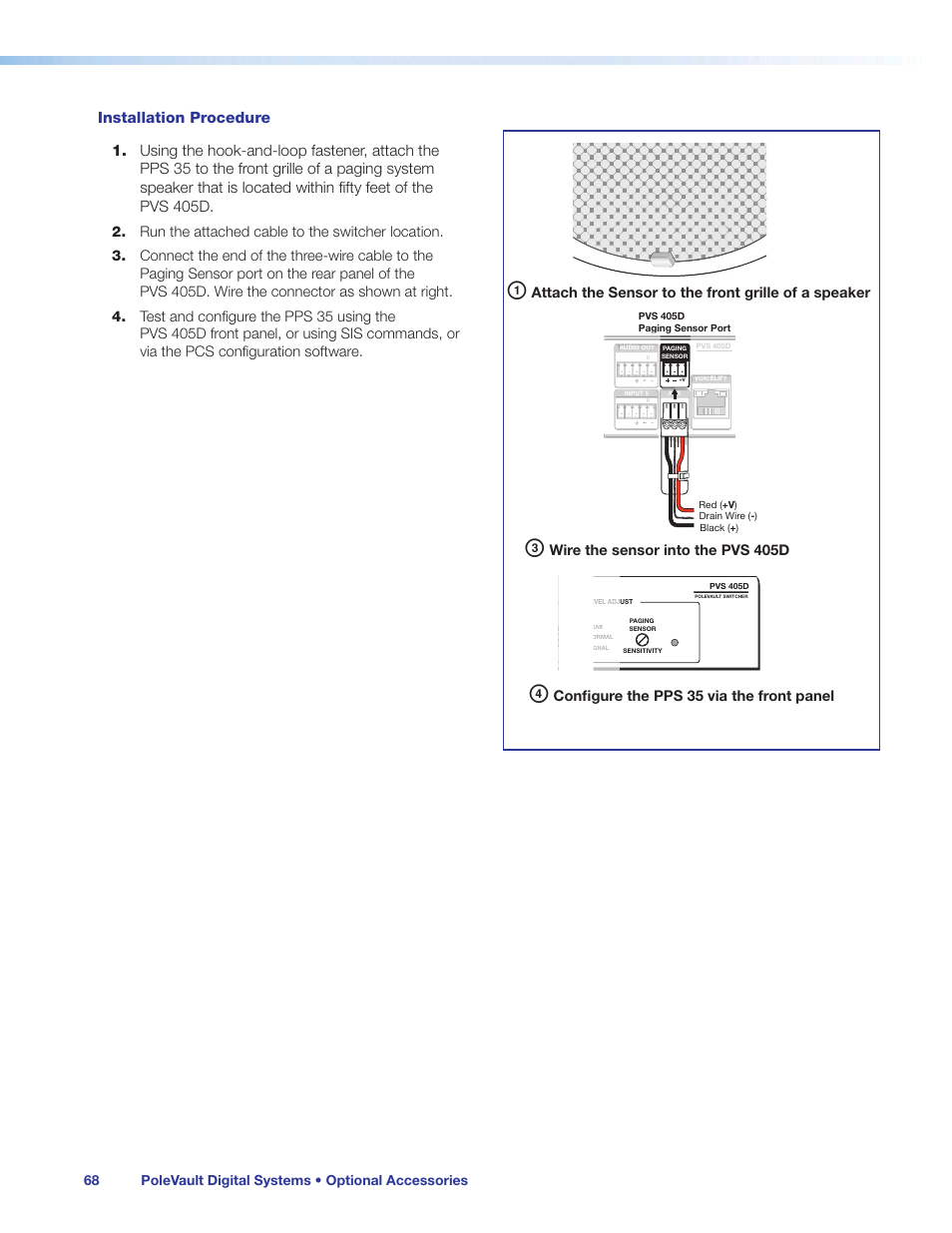

Installation procedure, Optional accessory installation, Attach the sensor to the front grille of a speaker – Extron Electronics PoleVault Digital Switcher Systems PVS 405D User Manual
Page 74: Wire the sensor into the pvs 405d, Configure the pps 35 via the front panel
