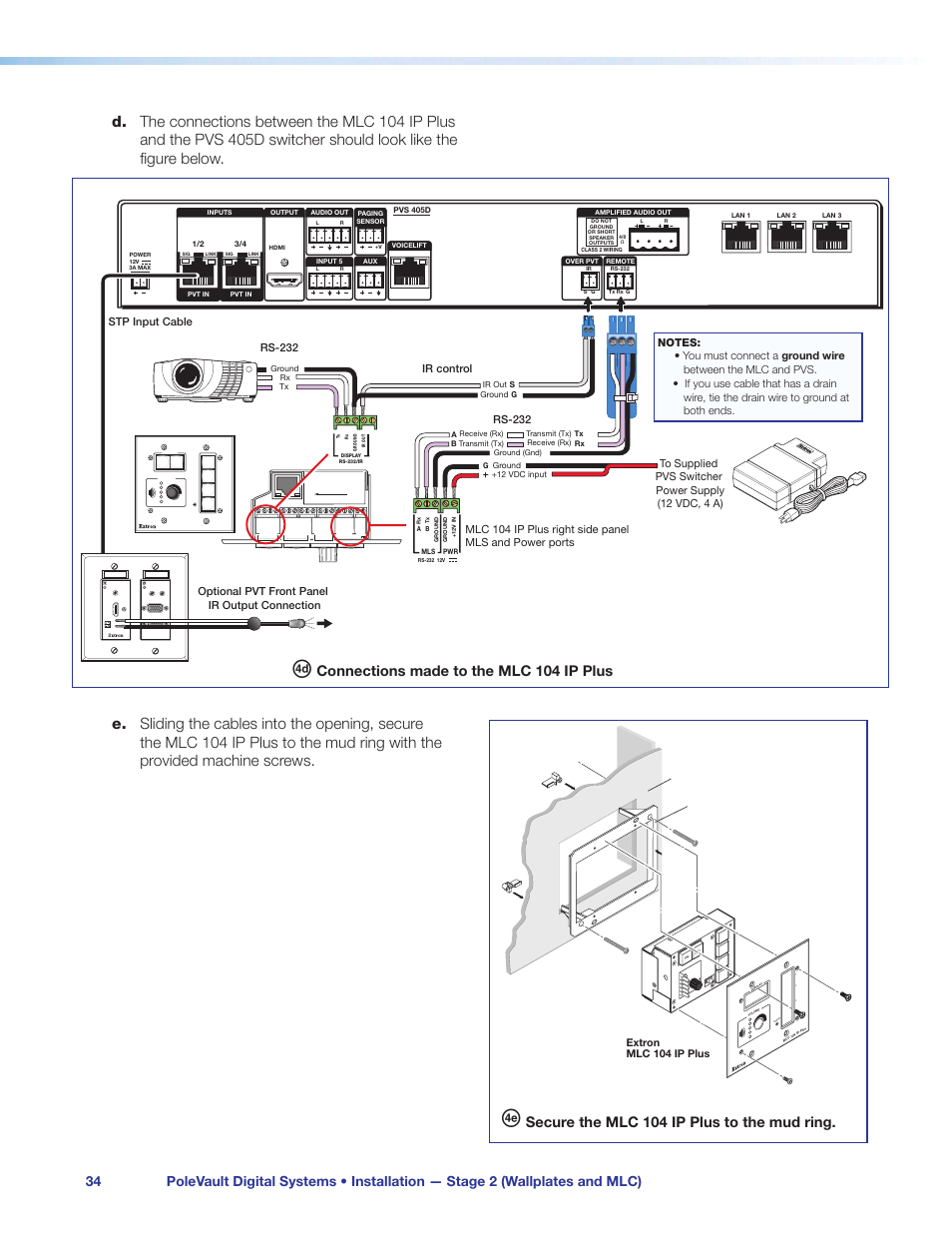

Conf ig, Secure the mlc 104 ip plus to the mud ring, Connections made to the mlc 104 ip plus – Extron Electronics PoleVault Digital Switcher Systems PVS 405D User Manual
Page 40: Projector, Ir control, Stp input cable, Extron mlc 104 ip plus
