Zones, buses, and topologies 88
6
6.0.3 Usage
The purpose of configuring the zones, buses, and topologies is to define the system properties
for the multi-point functions (BD, MSGF, and ZSI), which, as noted above, operate on zones. This
information is also used by the PT Throwover function (see
PT Throw-Over on page 99 for
details). Once this setup is completed (typically by GE before shipping) no further action is
required unless the switchgear line-up changes (e.g., a new circuit breaker is added).

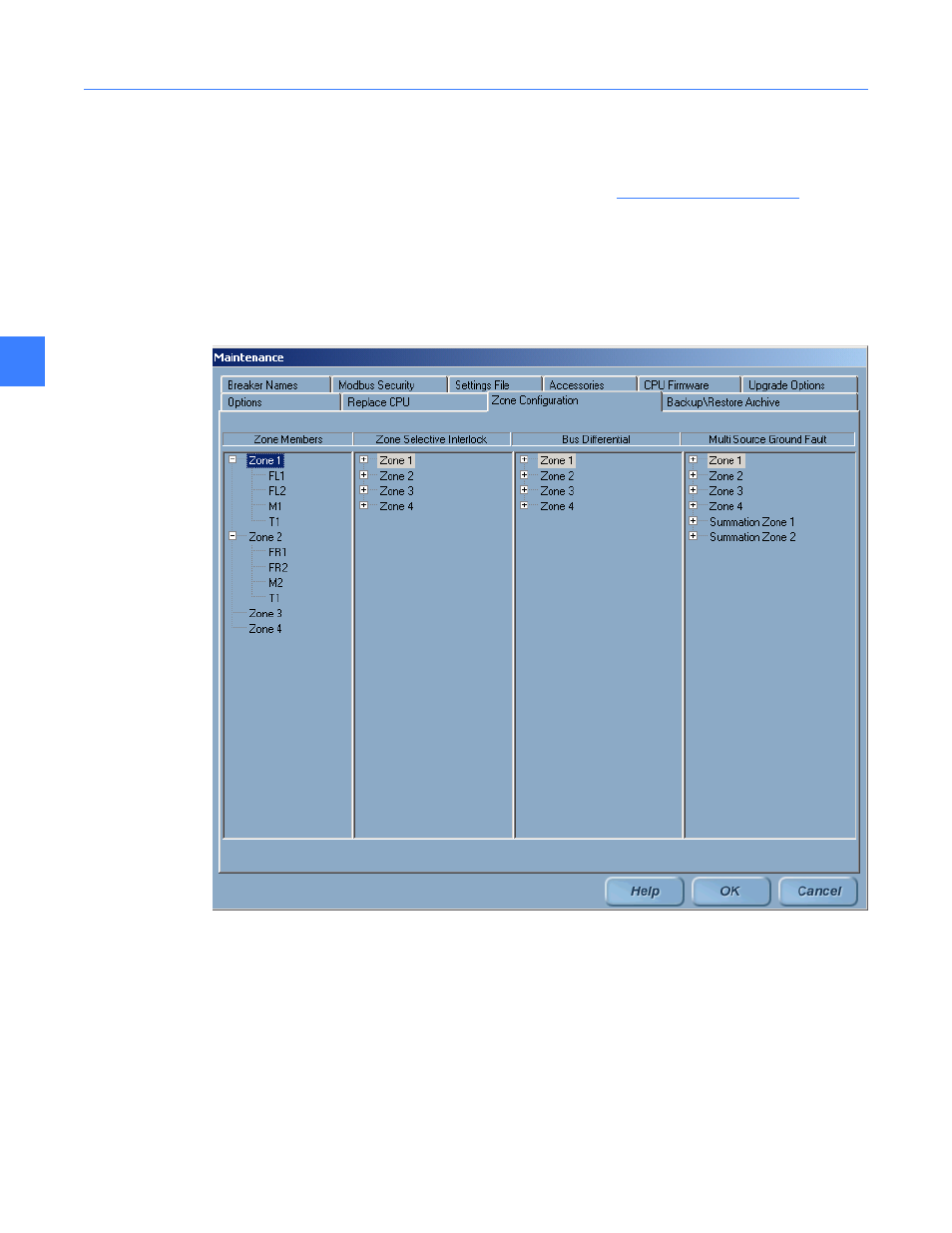

To view a summary of the zone configuration, on the Maintenance screen click the Zone
Configuration tab as show in Figure 6-2.
Figure 6-2 Zone Configuration summary
