Monitoring system health 179
14
14 System health
14.1 Monitoring system health
The System Health screen displays diagnostic information about the Entellisys Monitoring
System itself. Operators can quickly be alerted to any system maintenance or repairs that
require attention, as well as troubleshoot startup issues.

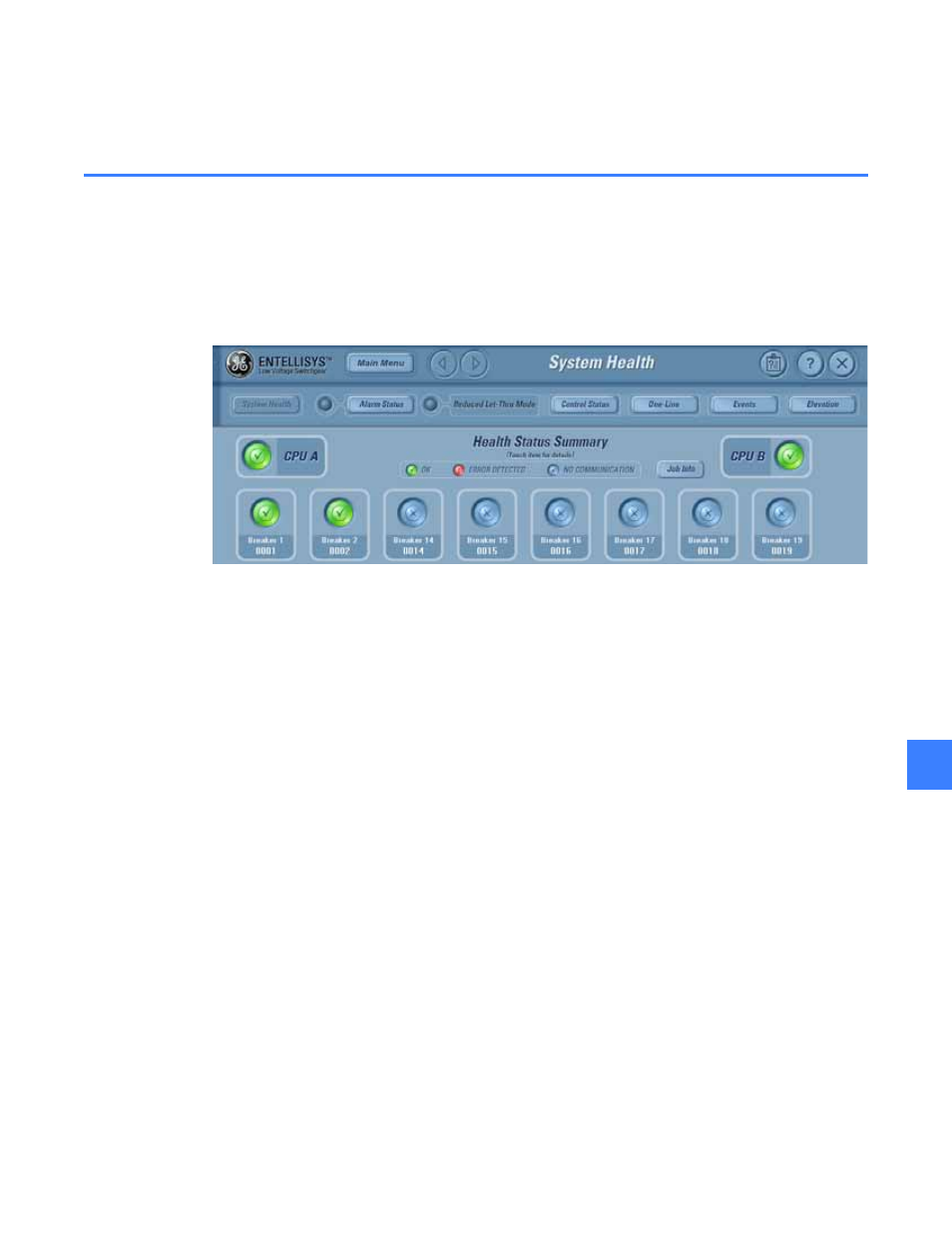

Figure 14-1 System Health screen
The System Health screen shows the high level summary of the functional status of each
device. Click on either of the CPU LED's to show the status for that device in greater detail. Click
on the LED for an individual circuit breaker to view a greater level of detail of the status of the
Messenger associated with that circuit breaker.
The specific status information is outlined in Figure 14-2 and Figure 14-3. When a problem
occurs within the system (red indication), a review of the Sequence of Events log is useful in
determining the time of the failure and what may have led up to it. If the information still does
not indicate the root cause of the issue, please call GE Post Sales Service for further assistance.
