FlexLogic example

165

11

[87] Virt Op 2 On

[88] Virt Ip 1 On

[89] DIG ELEM 1 PKP

[90] XOR (2)

[91] Virt Op 3 On

[92] OR (4)

[93] LATCH (S, R)

[94] Virt Op 3 On

[95] TIMER 1

[96] Cont Ip H1c On

[97] OR (3)

[98] TIMER 2

[99] = Virt Op 4

c. It is now possible to check that the selection of parameters will produce the required

logic by converting the set of parameters into a logic diagram. The result of this process
is shown below in Figure 11-7 and can be compared to the “Logic for Virtual Output 4”
diagram (Figure 11-4) as a check.

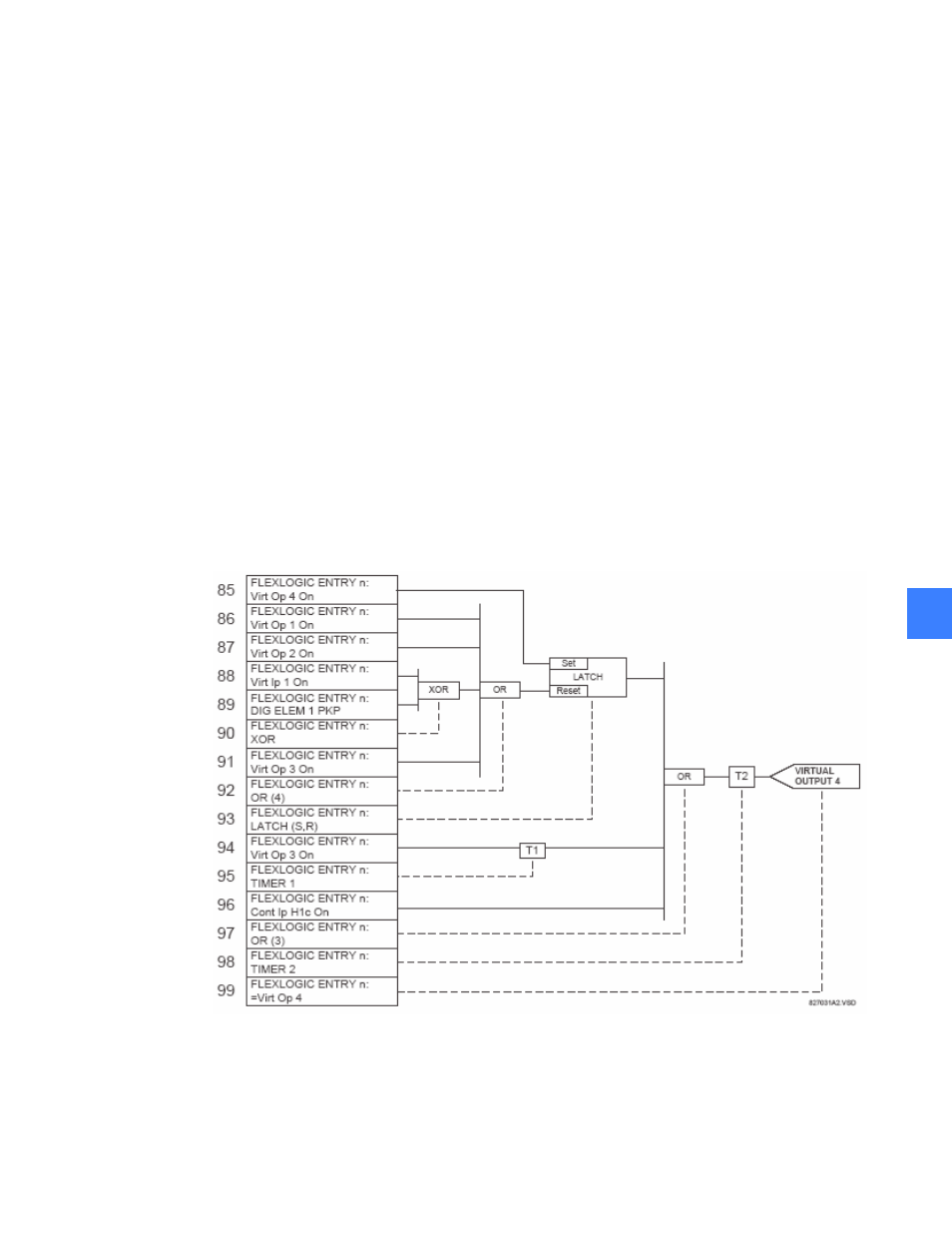

Figure 11-7 FlexLogic equation for Virtual Output 4
