4 meter distribution – GE Industrial Solutions Entellisys System User Manual User Manual
Page 38

Metering
38
4
4.6.4 Meter distribution
One of the unique features of Entellisys is that meters can be moved from one circuit breaker to
another with just a few clicks. To change the placement of meters, click Metering & Waveforms
on the User Settings screen and then click Meter Distribution. The Meter Distribution
parameters on the Metering & Waveforms screen are shown in Figure 4-4.
NOTE: When a meter is removed from a circuit breaker, all data accumulated at that circuit
breaker (e.g., maximum demands, demand log information, and energy values) are cleared.
Because all metering information available with the expanded metering option is also available
with the demand metering option, and all metering information available with the demand
metering option is also available with the advanced metering option, it does not make any
sense to enable more than one meter type for a given circuit breaker. The HMI prevents the
enabling of more than one meter type for a given circuit breaker. The HMI also prevents the
enabling of more meters than the number of metering options purchased.

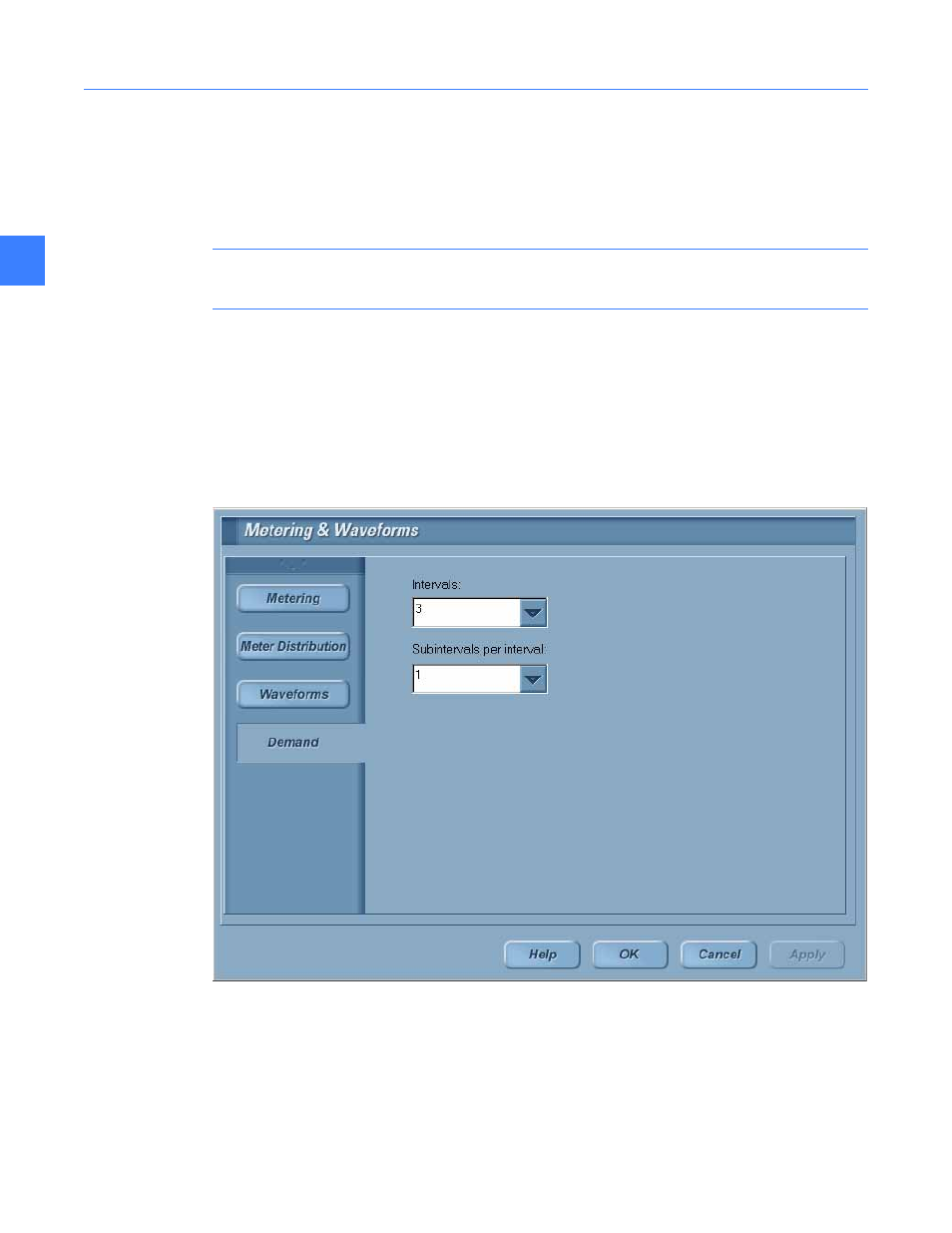

Figure 4-3 Configuring demand calculations
