Setup 37
4
4.6.2 Options
The three metering options (expanded, demand, and advanced) are described in the previous
sections. The number of each type of metering option purchased is specified in the option string
downloaded to the Entellisys CPU. To view the number of each type of option available, click the
Options tab on the Maintenance screen. The Options tab of the Maintenance screen is shown in
Figure 4-2.

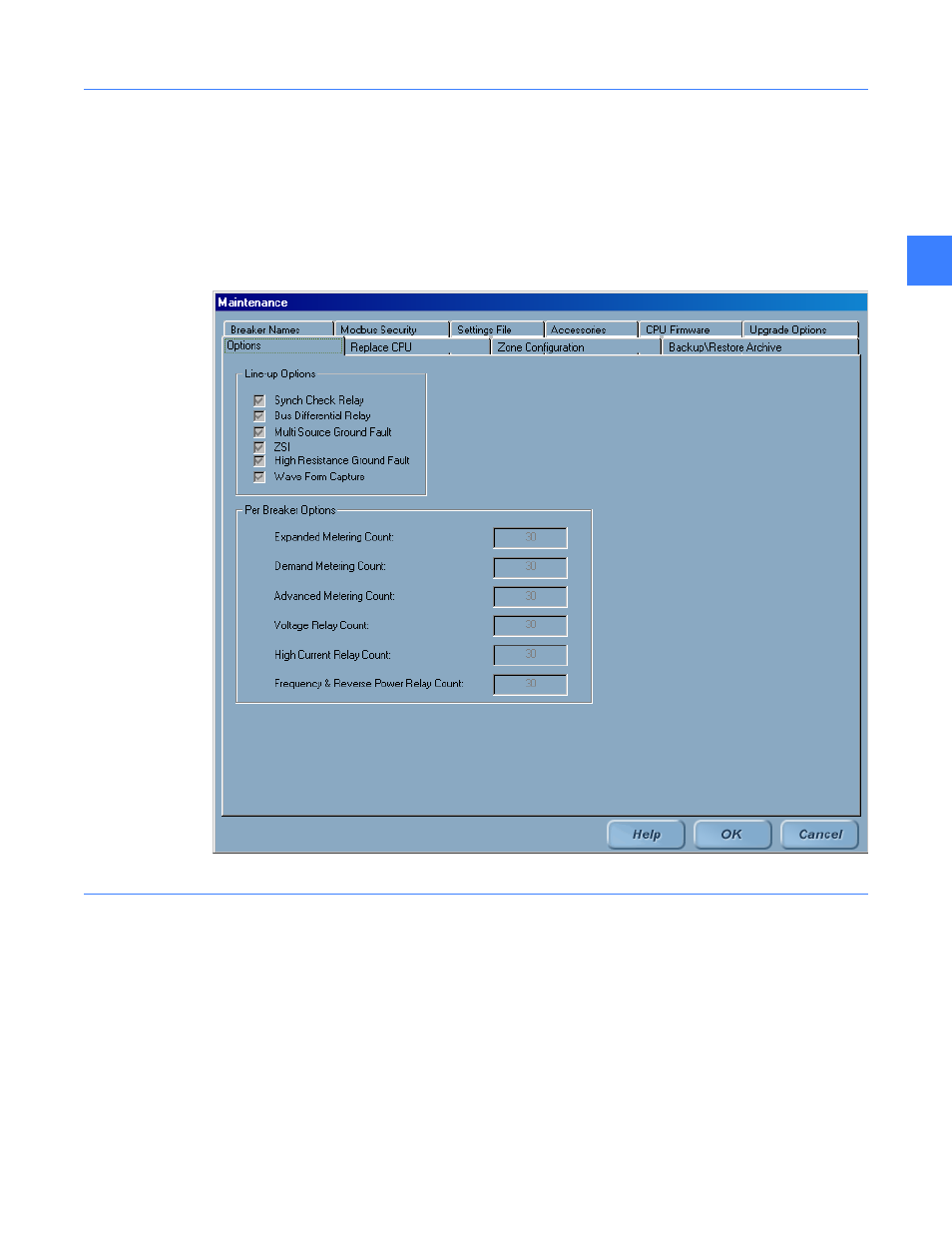

Figure 4-2 Entellisys options
4.6.3 Programmable parameters
The only programmable parameters for metering are the demand interval or subinterval length,
and the number of subintervals per interval. To set these parameters, click Metering &
Waveforms on the User Settings screen and then click Demand. The Demand parameters on
the Metering & Waveforms screen are shown in Figure 4-3.
