SIP–DECT OM System Manual Release 3.0 7 OMM Web Service
Aastra depl-1624/1.0 Page: 91 (241)
5 Directory : Activate this option if the rule applies to LDAP directories (see chapter 7.9.2).
6 Sites : Specifies the sites for which a rule shall be applied e.g. “1,2” (see chapter 7.5). If
set to “0” the rule applies to all sites i.e. the rule will be applied to all calls or corporate
directory requests.
7 Press the OK button.
7.9.1.2 Deleting “Digit treatment” Entries
To delete an existing entry:
1 On the Digit treatment page click on the icon left behind the entry.
The Delete digit treatment entry? dialog opens showing the current configuration of this
entry.
2 Press the Delete button.

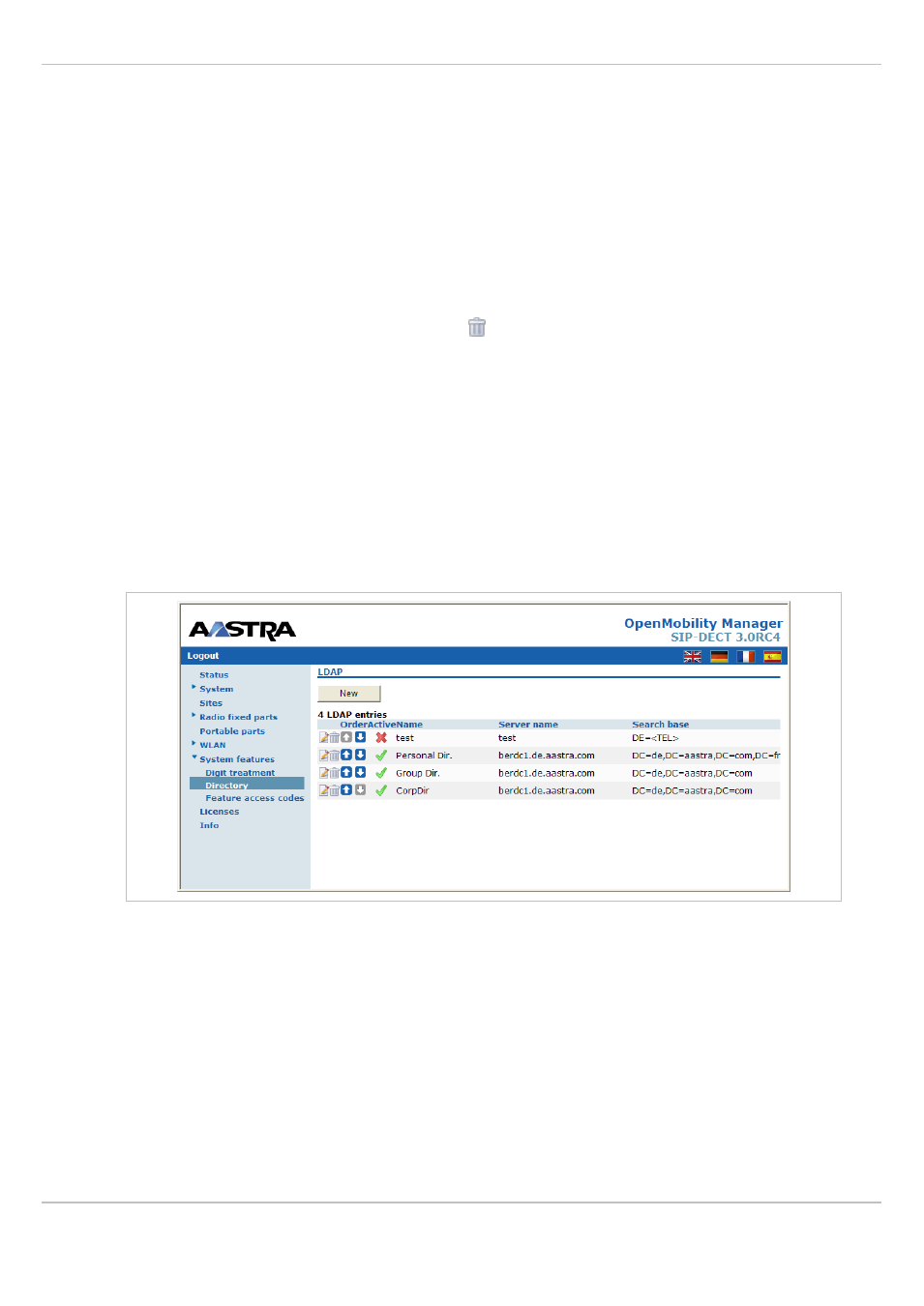

7.9.2 “Directory” Menu
The System features menu allows you to manage connections to one or more LDAP
servers that in turn facilitate central corporate directories. The OMM supports multiple LDAP
servers with specific parameter settings to support different types of directories e.g. global
corporate directory, group specific directory, personal directory.
If there is more than one LDAP server configured then the multiple options are offered to the
user as a list. The list is presented to the user if the central directory is called e.g. via soft key
or selecting central directory from the menu. The user can choose one of the entries in the
list. The name of an entry shown in the list is configured in the OMM when creating the LDAP
server entry. (Latin-1 character set is supported).
•
If there is only one LDAP server configured then the directory function is directly started
when pressing the soft key or selecting central directory from the menu.
•
The name configured in the OMM is not relevant and ignored if there is only one LDAP
server configured.
•
There are up to 5 LDAP directories configurable.
