SIP–DECT OM System Manual Release 3.0 8 OM Management Portal (OMP)
Aastra depl-1624/1.0 Page: 119 (241)

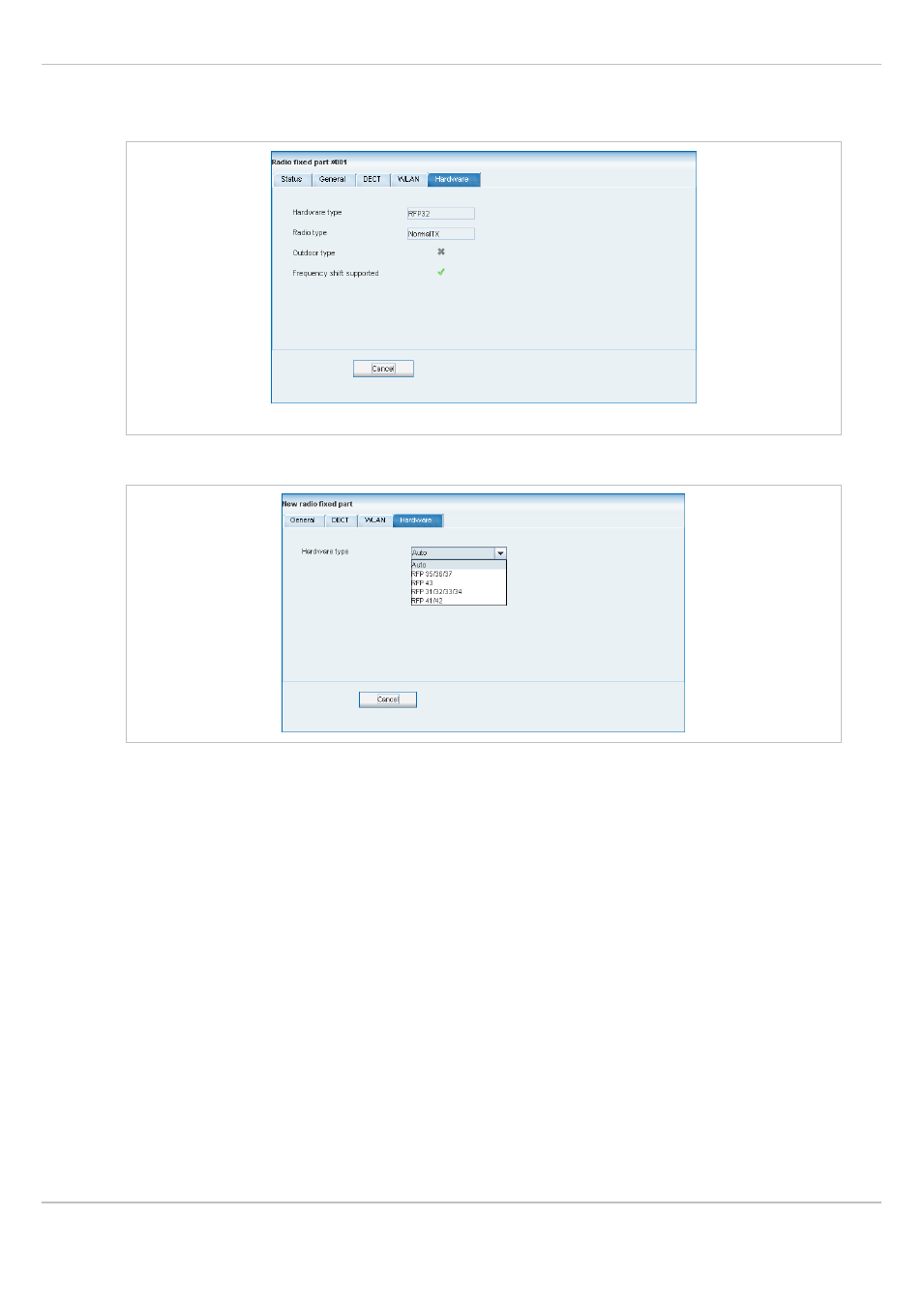

“Hardware” tab
In monitor mode this tab shows hardware information of the selected RFP.
RFP Hardware tab in monitor mode
In configuration mode, the RFP hardware type can be set.
8.7.1.2 Adding New RFPs
Adding new RFPs is only possible in configuration mode. To add an RFP to the list of
known RFP proceed as follows:
1 In the task bar on the right of the Radio fixed parts panel click on the Create command.
The New radio fixed part panel opens. It provides various tabs where the RFP data has
to be entered, see chapter 8.7.1.1.
2 Configure the RFP, see parameter description below.
3 Press the OK button.
The following parameters can be set in the tabs of the New radio fixed part panel:
“General” tab
•
Name : The a name for the RFP.
•
MAC address : Each RFP is identified by its unique MAC address (6 bytes hex format,
colon separated). Enter the MAC address, it can be found on the back of the chassis.
