AASTRA SIP-DECT (Release 3.0)- OM System Manual - Installation, Administration and Maintenance EN - Manual (Page 114)

SIP–DECT OM System Manual Release 3.0 8 OM Management Portal (OMP)
Aastra depl-1624/1.0 Page: 114 (241)

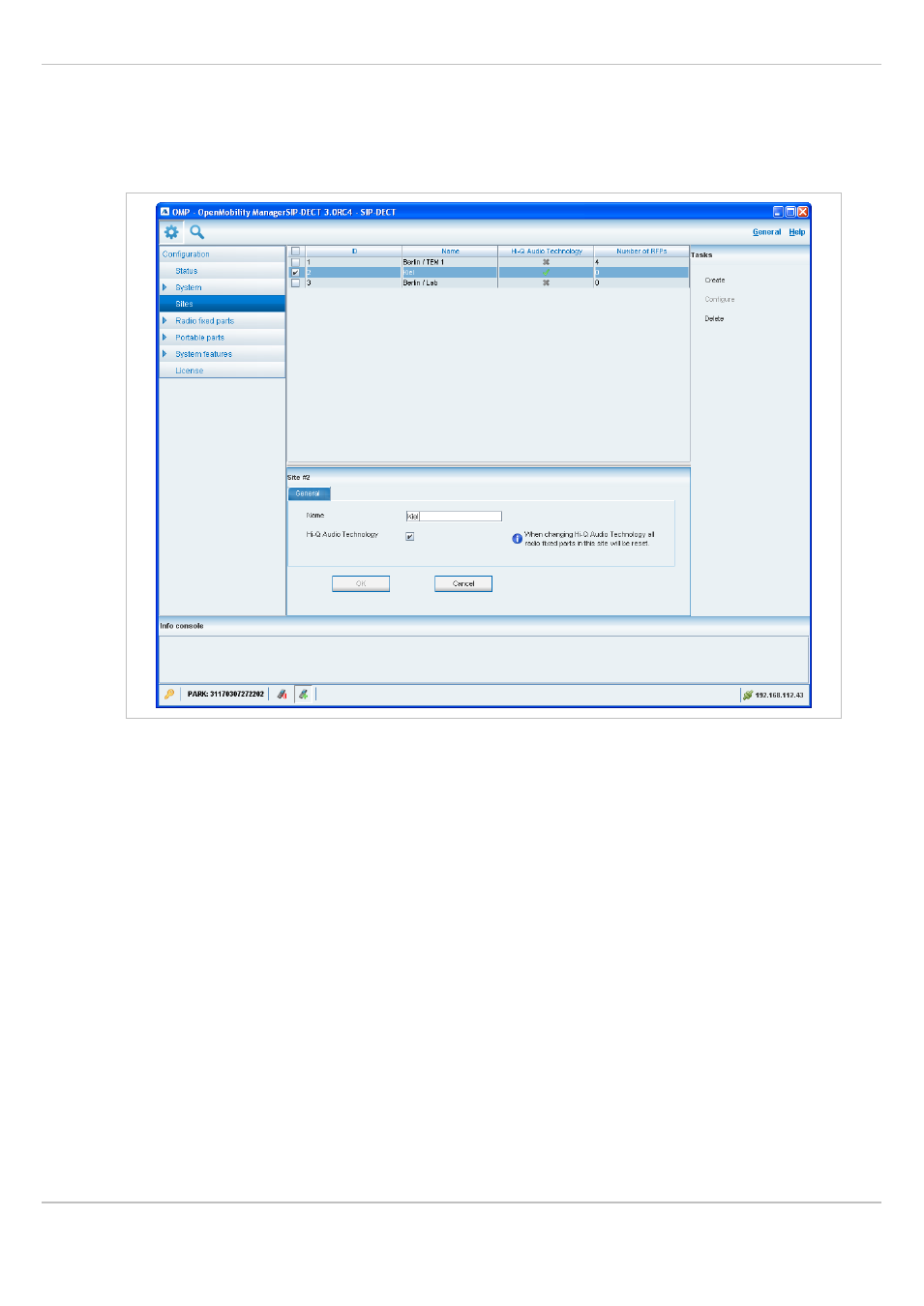

8.6 “Sites” Menu
RFPs can be grouped into different sites. The Sites menu allows to configure/view the
configured sites. An empty system has one predefined site (ID: 1) named “default”. Minimum
one site is required by the system.
A site consists of the following parameters:
•
ID : Identification number of the site. A value between 1 and 250 is possible. If no value is
given, the OMM selects the next free ID.
•
Name : The name of the site.
•
Hi-Q Audio Technology : The capability Hi-Q TM audio technology must be enabled or
disabled specific for every site.
– In sites, which are configured to provide this functionality, exclusively
RFP (L) 35/36/37 IP and RFP (L) 43 WLAN are applicable.
– In sites without this capability, it is allowed to mix these new RFP types with
RFP (L) 32/34 IP and RFP (L) 42 WLAN.
•
Number of RFPs : The number of RFPs which are assigned to this site.
The following tasks can be performed:
•
Create : create a new site in the General tab.
•
Configure : configure an existing site in the General tab.
•
Delete : delete selected sites.
•
Show details (only in monitor mode): shows configuration of a selected site in the
General tab.
