6.6 LED Status
Use this screen to view the current status of each of the ZyXEL Device’a ports. Click Status >
LED Status to access this screen.

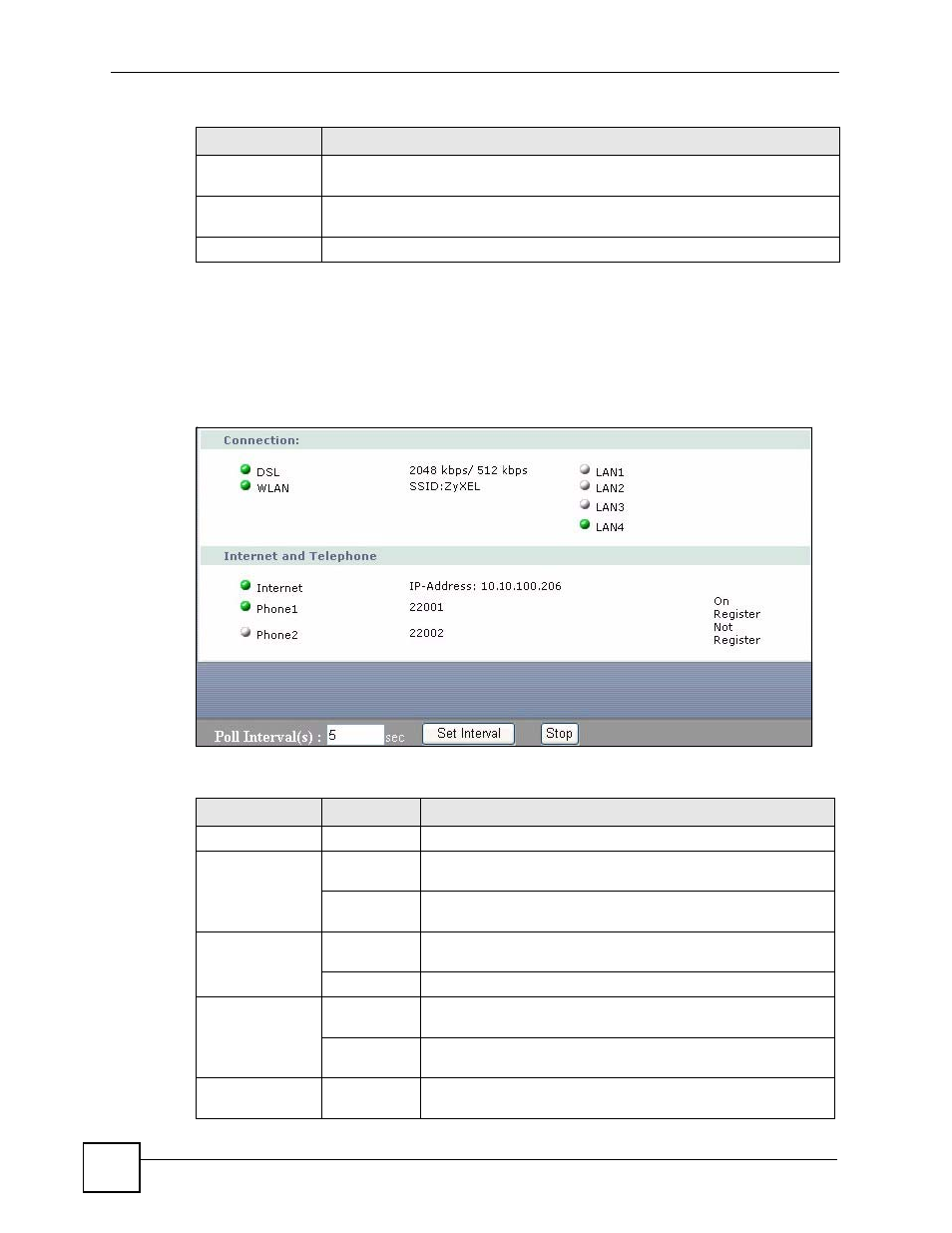

Figure 48 LED Status
Each field is described in the following table.
Poll Interval(s) Enter how often you want the ZyXEL Device to update this screen, and click Set
Interval.
Set Interval Click this to make the ZyXEL Device update the screen based on the amount of
time you specified in Poll Interval.
Stop Click this to make the ZyXEL Device stop updating the screen.
Table 21 VoIP Statistics
LABEL DESCRIPTION
Table 22 LED Status
LABEL STATUS DESCRIPTION
Connection
DSL Green The DSL port has a successful connection. The current
downstream and upstream transmission rates display.
Off When the DSL port does not have a successful connection, it
displays Down.
WLAN Green The wireless LAN is enabled. Your ZyXEL Device’s SSID
(Service Set IDentity) displays.
Off When the wireless LAN is disabled, it displays Inactive.
LAN 1~4 Green The corresponding LAN port has a successful Ethernet
connection.
Off The corresponding LAN port does not have a successful Ethernet
connection.
Internet and
Telephone
