2.Specification
38 PROSEC T2N
Item
AI22
(EX10*MA122)
AI32
(EX10*MA132)
Input Range 1 - 5V or 4 - 20mA -10 - +10V
Input Impedance 1 - 5V : 1M Ω or more
4 - 20mA : 250 Ω
1M Ω or more
Number of Input Points 4 points (N side common) 4 points (N side common)
Overall Accuracy ± 0.5% : 25ºC
± 1%FS / 0 - 55ºC
± 0.5% : 25ºC
± 1%FS / 0 - 55ºC
Resolution 1 - 5V : 0 - 4000
4 - 20mA : 0 - 4000
-10 - +10C :
-2000 - 2000
Conversion Cycle Approx. 9.6msec/4 channels Approx. 9.6mS/4 channels
Wire Breakage Detection Only possible for 4 - 20mA
External Power Supply
Break Detection
Yes Yes
Withstand Voltage 1500Vac / 1 minute 1500Vac / 1 minute
Current consumption 50mA (5Vdc) or less 50mA (5Vdc) or less
External Power Required 24Vdc
± 10% - 50mA 24Vdc ± 10% - 50mA
Weight Approx. 200g Approx. 200g
4-20mA/1-5V
AI22
RUN
N
P
CH1
N
P
CH2
N
P
CH3
N
P
CH4
-
24Vdc+
± 10V
AI32
RUN
N
P
CH1
N
P
CH2
N
P
CH3
N
P
CH4
-
24Vdc+
The AI22 type is set to
current input (4-20mA)
at the factory. When using
voltage (1-5V) input,
reset the jumper plugs
4-Channel Analog Input
(12-bit)

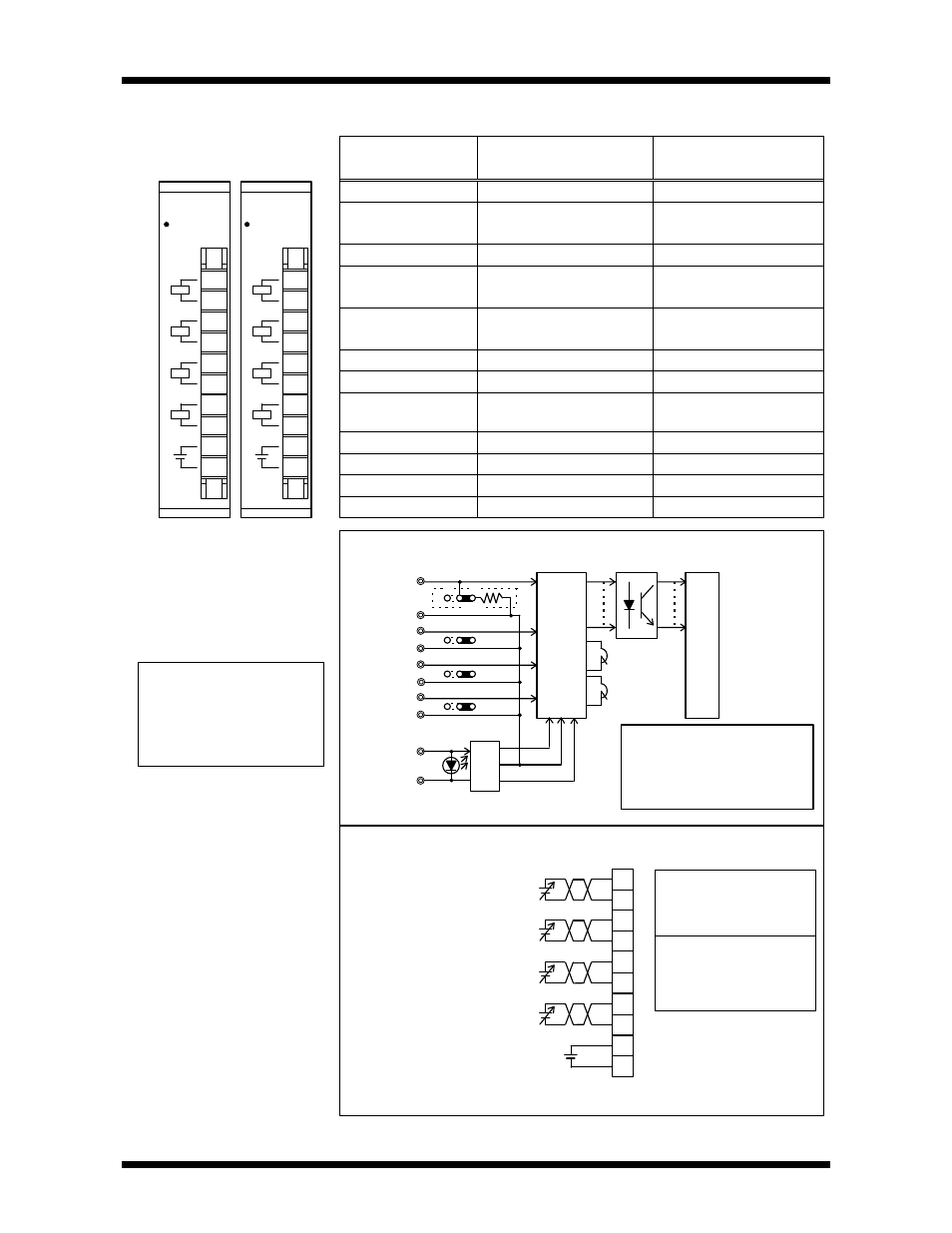

Circuit Configuration
JI1, JI2, JI3, JI4 (jumper plugs)
are AI22 type only
I side : for current (4 - 20mA)
V side : for voltage (1 - 5V)
Set for current at the factory
24Vdc+
LED
DC/DC Converter
CH4
CH3
CH2
CH1
-
A/D
Converter
JI1
I
P
P
P
N
N
N
N
P
V
JI2
JI3
JI4
Terminal Connections
-
+
P
P
P
N
N
N
N
P
24Vdc
(50mA)
CH4
CH3
CH2
CH1
Isolate external power
supply line (24Vdc)
from other signal lines.
Use shielded twisted-pair
cables for analog signals,
and ground the shields
securely.
