1.System Configuration
User’s manual 3

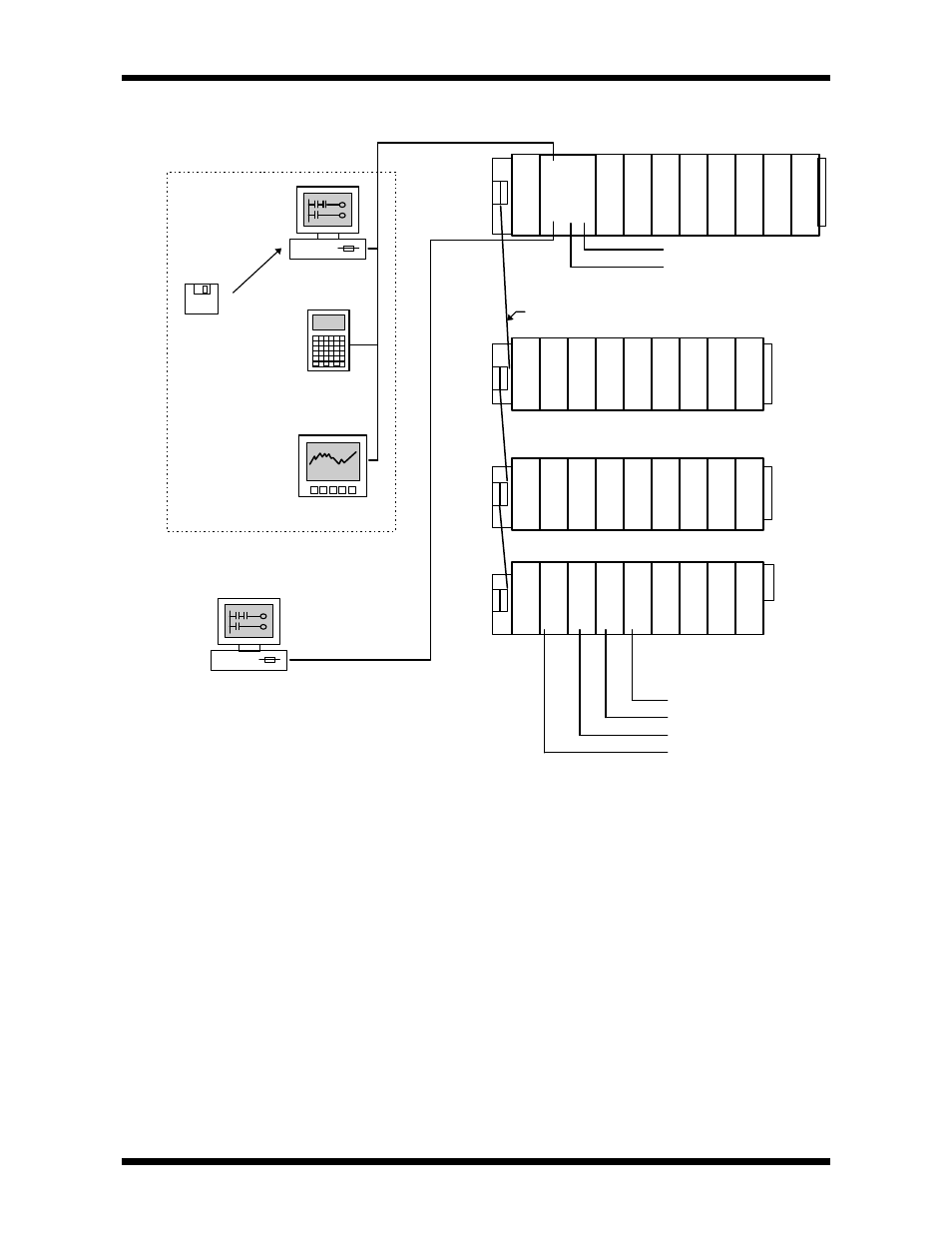

1.1
System Configuration
Up to a maximum of 3 expansion units can be connected.
Note *1: Ethernet which is built-in PU235N and PU245N
TOSLINE-S20LP which is built-in PU245N
*2: T-PDS (MS-DOS) software V2.06 or later is available for the T2N.
T-PDS (Windows) software V1.2 or later is available for the T2N.
Personal
Computer
(IBM compatible)
T-series Program
Development
System(T-PDS)*2
software
Handy Programmer
HP911
Peripherals
•
Computer Link
•
Serial I/F
LCD Display etc.
Basic Unit
C
P
U
Expansion Cable
Personal
Computer
• Data Link
(Dual T2E/T2Ns can be
communicated each other)
Power Supply
Expansion Unit
Expansion Unit
Expansion Unit
Data transmission module
DeviceNet Scanner
TOSLINE-S20 (Optic/wire)
TOSLINE-F10(wire)
TOSLINE-30 (Optic/wire)
Power Supply
Power Supply
T
L
30
T
L
F T
L
S
D
N
Power Supply
*1 Ethernet
*1 TOSLINE-S20LP
