1.System Configuration
User’s Manual 17
1.7
I/O Modules Various types of I/O modules are available for the T2N, as shown in the
following table. Thus, it can respond to a wide variety of applications.
I/O modules can be mounted in any slot in the rack, and in any order.
(See Section 4.8 for recommended arrangements)
Type Description Specification
DI31 DC/AC input 16-point (16 points per common),12-24V dc/ac
DI32 DC input 32-point (8 points per common),24Vdc
DI235 DC input 64-point (8 points per common),24Vdc
IN51 16-point (16 points per common),100-120Vac
IN61
AC input
16-point (16 points per common),200-240Vac
RO61 12-point (4 points per common),
240Vac(+10%)/DC24V(+20%),
2A/point,4A/4 points common (max.)
RO62
Relay output
8-point (each point isolated),
240Vac(+10%)/DC24V(+20%), 2A/point (max.)
DO31 16-point (16 points per common),5-24Vdc
1A/point, 1.2A/4 points (max.)
DO32 32-point (8 points per common),5-24Vdc
0.1A/point, 0.8A/8 points common (max.)
DO235 64-point (8 points per common),5-24Vdc
0.1A/point, 0.8A/8 points common (max.)
DO233P
Transistor output
16-point (16 points per common),12-24Vdc
AC61 Triac output 12-point (4 points per common),100-240Vac
0.5A/point, 0.6A/2-element SSR (max.)
AI21 4-channel (not isolated between channels),
1-5V/4-20mA, 8bit resolution
AI31
Analog input
(8bit)
4-channel (not isolated between channels),
0-10V ,8bit resolution
AI22 4-channel (not isolated between channels),
1-5V/4-20mA, 12bit resolution
AI32
Analog input
(12bit)
4-channel (not isolated between channels),
-10V - +10V ,12bit resolution

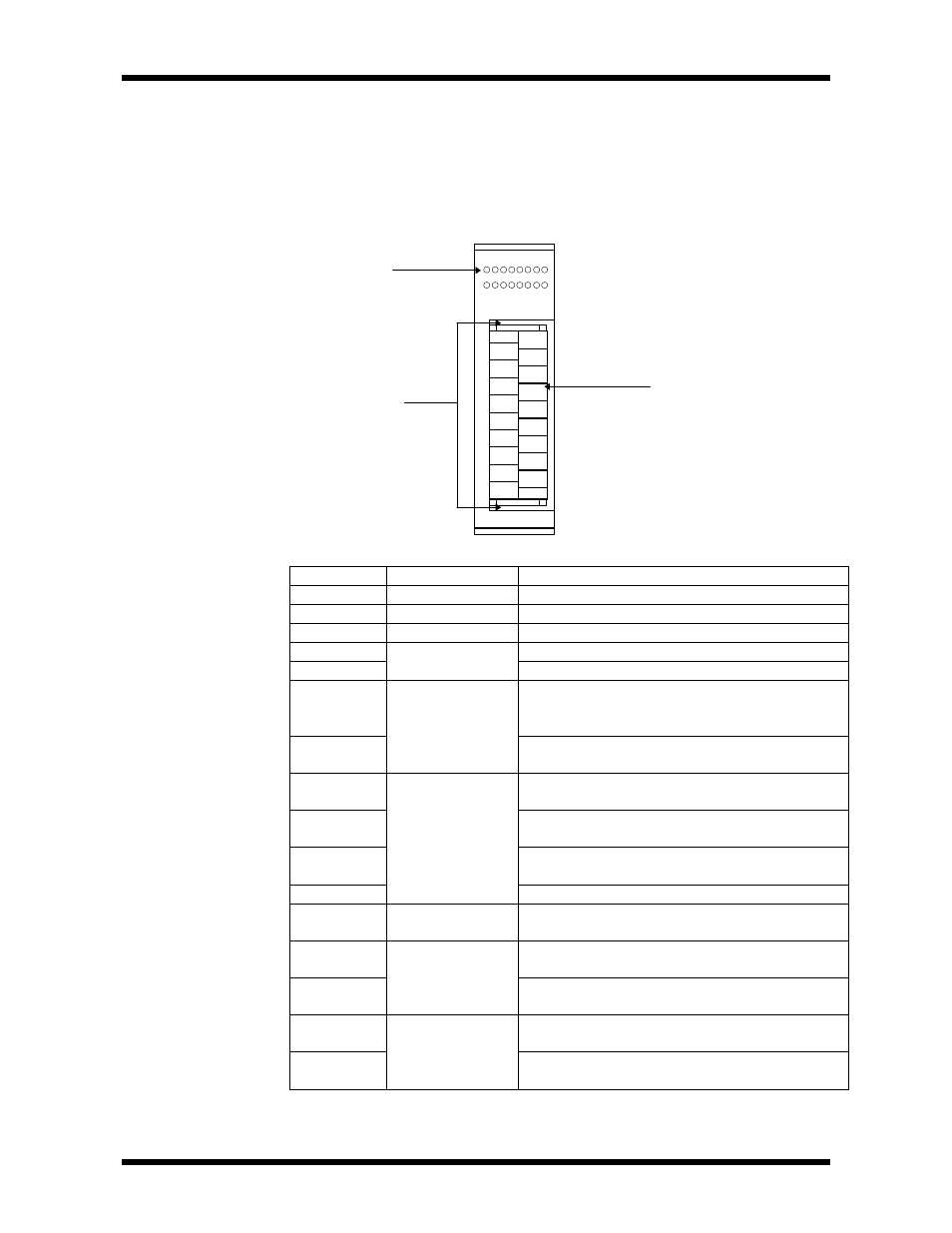

Input/Output terminal block
(10-pin/18-pin)
Input/Output status
display LEDs
Terminal block
eject levers
