2.Specification
User’s manual 29
Item
RO62
(EX10*MRO62)
Load voltage 24Vdc, +20%(MAX)/240Vac, +10%(MAX)
Maximum load 2A/point (resistive load), 1A/point (inductive load)
Minimum load 50mW (5V or more)
Number of output points 8 points (each point isolated)
ON Delay 10msec or less
OFF Delay 15msec or less
Leakage current When OFF 0mA
Voltage insulation 1500Vac / 1 minute
Current consumption 40mA (5Vdc) or less
External Relay Coil Power
Required
24Vdc +/- 10% - 100mA/all points ON
(10mA/point)
Weight Approx 250g
1. ON/OFF life of relays: Electrical 100,000 times
Mechanical 20 million time
2. No overload protection fuses are built into this module. Therefore
connect fuses externally suitable to the current capacity.
NOTE

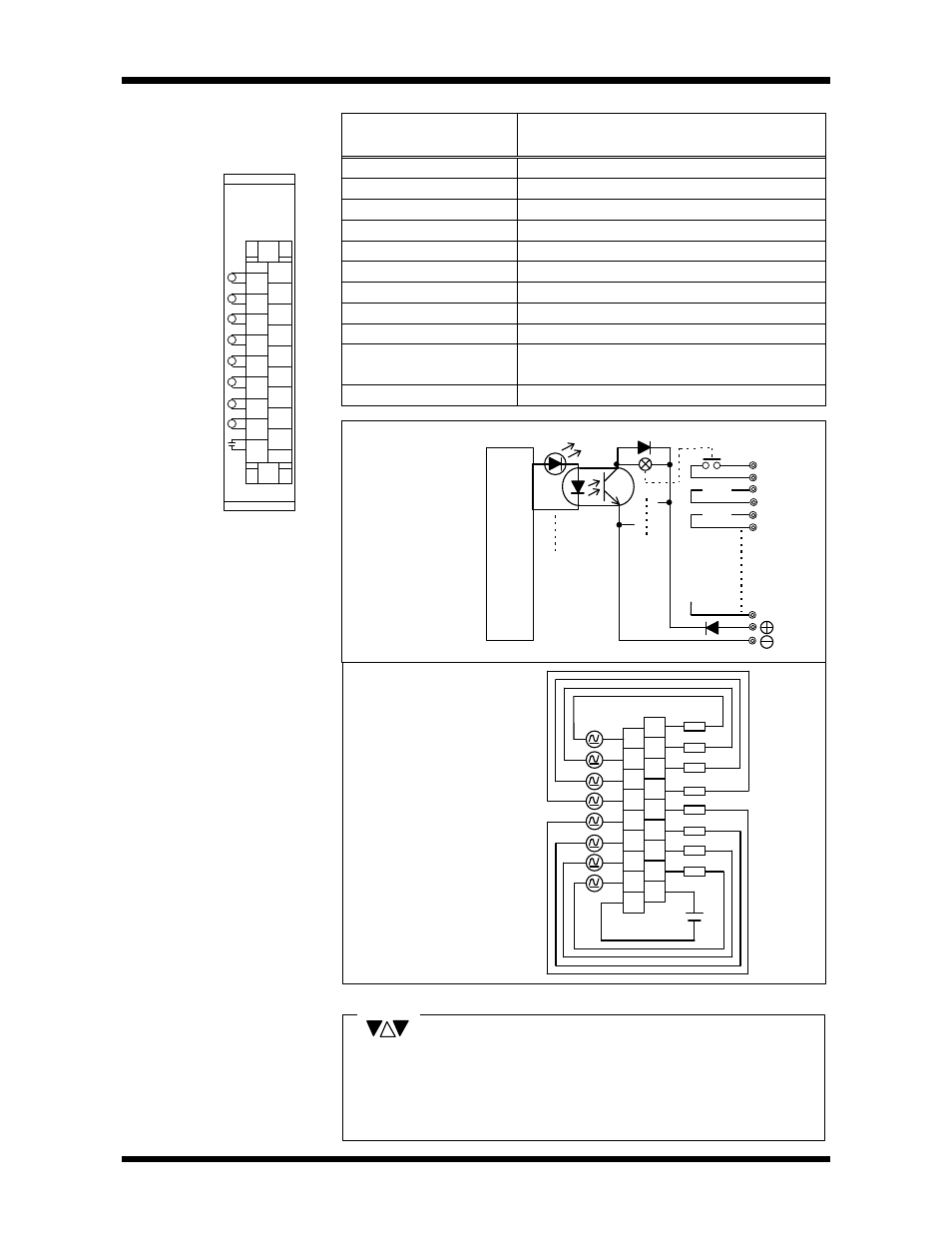

Terminal Connections
2
1
0
4
3
7
6
24Vdc
5
Circuit Configuration LED display
8-point Isolated
Relay Output
24V
dc
RELAY OUT
RO62
0 1 2 3 4 5 6 7
0
1
2
3
4
5
6
7
. . . . . . . .
0
1
2
Internal Circuit
