Toshiba T2N - Manual (Page 43)

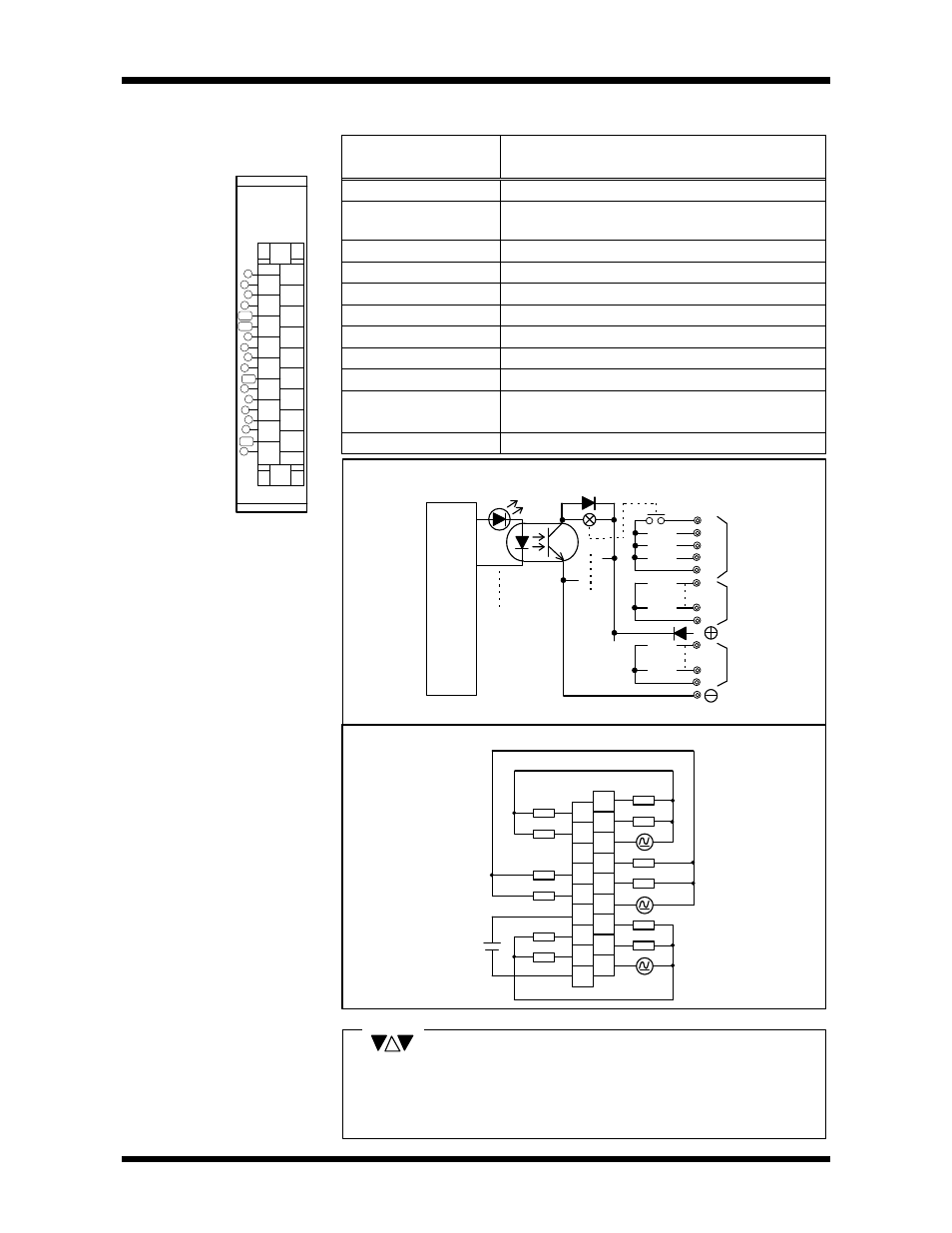

2.Specification
28 PROSEC T2N
Item
RO61
(EX10*MRO61)
Load voltage 24Vdc, +20%(MAX)/240Vac, + 10%(MAX)
Maximum load 2A/point (resistive load), 1A/point (inductive load), 4A/4points
common
Minmum load 50mW (5V or more)
Number of output points 12 points (4 points / common)
ON delay 10ms or less
OFF delay 15ms or less
Leakage current When OFF 0mA
Withstand voltage 1500Vac / 1 minute
Current consumption 50mA (5Vdc) or less
External relay Coil
Power required
24Vdc +/- 10% - 140mA/all points ON (10mA/point)
Weight Approx 250g
Terminal Connections
Circuit Configuration
1.ON/OFF life of relays: Electrical 100,000 times
Mechanical 20 million times
2.No overload protection fuses are built into this module.Therefore
connect fuses externally suitable to the current capacity.
NOTE
12-point Relay Output
LED
display
C
C
7
4
3
2
1
Internal
circuit
C
B
8
3
1
7
5
9
+
-
B
C1
2
0
6
4
A
8
C3
C2
24V
0 1 2 3 4 5 6 7
8 9 A B
4
0
B
RELAY OUT
RO61
9
A
+
7
8
5
6
3
1
2
CI
NC
C2
C3
COIL
24Vd
c
-
. . . . . . . .
. . . .
