2.Specification
34 PROSEC T2N
Item
DO233P
(TDO233P*S)
Load power supply
12-24Vdc+10%/-5%
(Internal current consumption 35mA or less)
Output ON current
1A/point (external power supply 7V or more)
1.2A/4 points (4-element transistor array)
Output ON resistance 1.5 Ω or less
Number of output points 16 points (single plus common)
On Delay 1ms or less
OFF Delay 1ms or less
Leak current when Output
OFF
0.1mA or less
Voltage insulation 1500Vac/ 1 minute
Current consumption 60mA (5Vdc) or less
Weight Approx 200g
-
+
12-24Vdc OUT
DO233P
D
F
E
B
9
A
C
7
5
6
8
3
4
1
2
0
0 1 2 3 4 5 6 7
8 9 A B C D E F
. . . . . . . .
. . . . . . . .

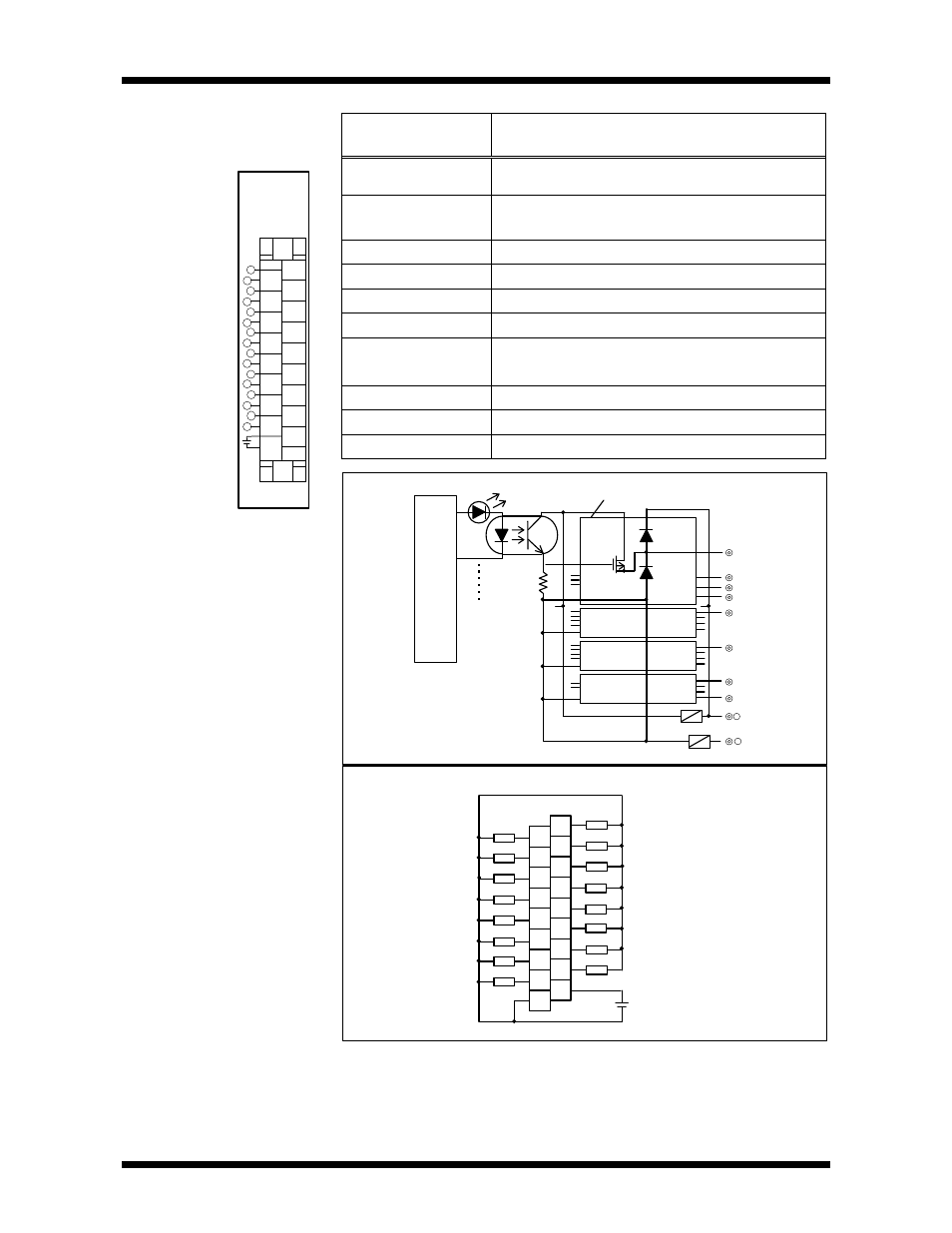

16-point Transistor Output
Terminal Connections
12 - 24Vdc
3
1
7
5
9
B
-
D
F
4
2
0
8
6
E
C
+
A
Circuit Configuration
Common
Transistor array
LED display
(5A)
Fuse
F
C
8
4
3
2
1
0
Constant voltage circuit
−
+
