5. Programming Language
250
PROSEC T2N

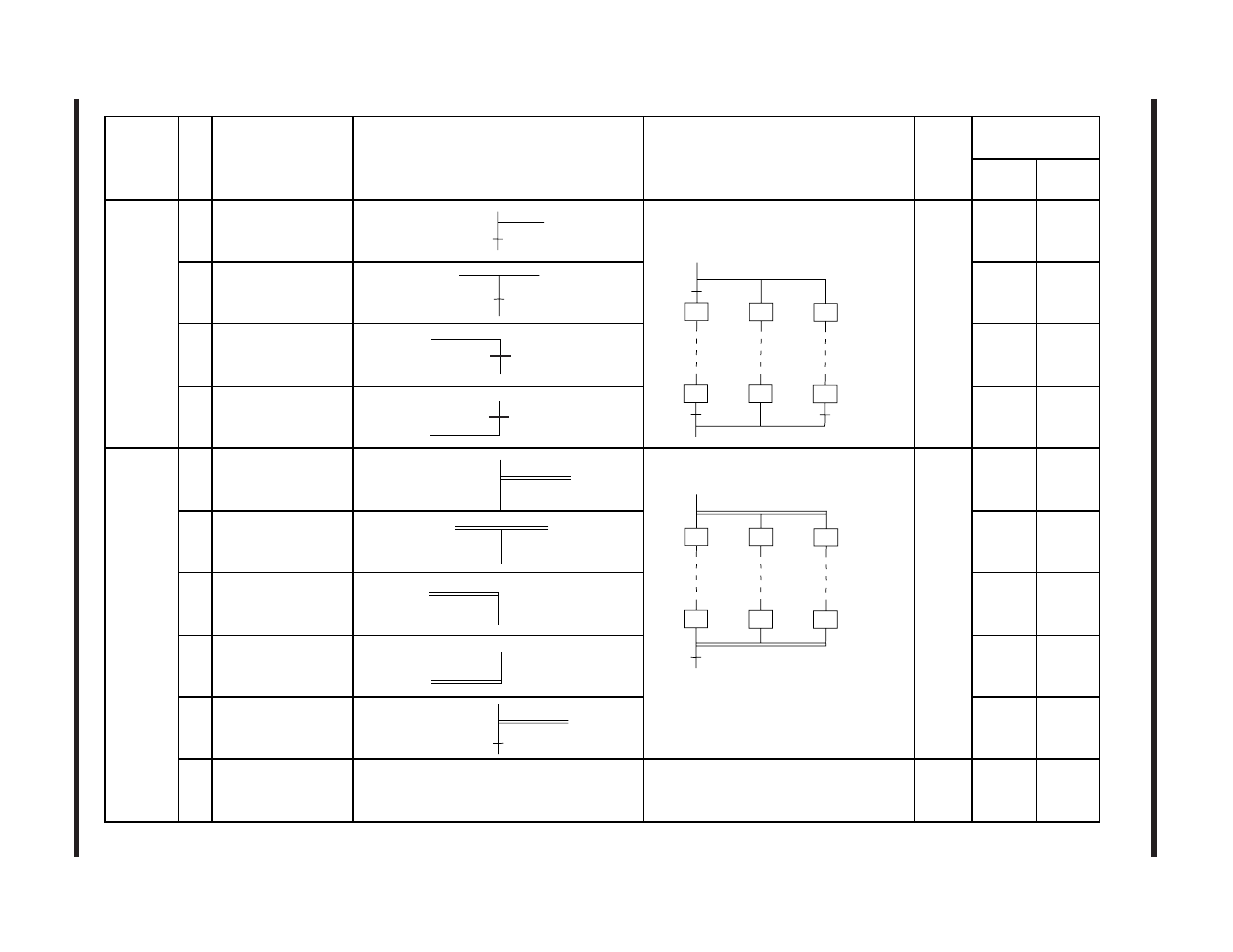

SFC Instructions
Group
FUN
No.
Name Representation Summary
Number of
steps
required
Execution time required
( µ s)
Inactive Active
Sequence
selection
Sequence selection
Divergence (I)
From among several connected steps, activates the
step for which the transition conditions hold true (left
priority). 2 x n-1
n is the
branch
count
(Excluding
transitions,
steps, and
individual
details
within the
branch)
0.54 118
Sequence selection
Divergence (II)
0.54 118
Sequence selection
Divergence (III)
0.54 96
Sequence selection
Convergence
0.22 0.22
Simultaneous
sequence
Simultaneous sequence
Divergence (I)
Activates all the connected steps. n + 3
n is the
branch
count
(Excluding
transitions,
steps, and
individual
details
within the
branch)
0.22 0.22
Simultaneous sequence
Divergence (II)
0.22 0.22
Simultaneous sequence
Divergence (III)
0.22 0.22
Simultaneous sequence
Convergence (I)
49 56
Simultaneous sequence
Convergence (II)
0.22 197
