2.Specification
User’s manual 27
Item
IN51
(EX10*MIN51)
IN61
(EX10*MIN61)
Input Voltage Range
(Sine wave)
100-120Vac + 10%
(50/60Hz)
200-240Vac + 10%
(50/60Hz)
Minimum ON voltage
(Sine wave)
80Vac or more 160Vac or more
Maximum OFF voltage
(Sine wave)
30Vac or less
(leak current 2mA or less)
60Vac or less
(leak current 2mA or less)
Input Current(Sine wave) Approx 7mA (100V-50Hz) Approx 6mA (200V-50Hz)
Number of Input Points 16 points (single common) 16 points (single common)
ON Delay (Sine wave) 20mS or less 20mS or less
OFF Delay (Sine wave) 15mS or less 15mS or less
Voltage lnsulation 1500Vac / 1 minute 1500Vac / 1 minute
Current Consumption 15mA (5Vdc) or less 15mA (5Vdc) or less
Weight Approx 250g Approx 250g

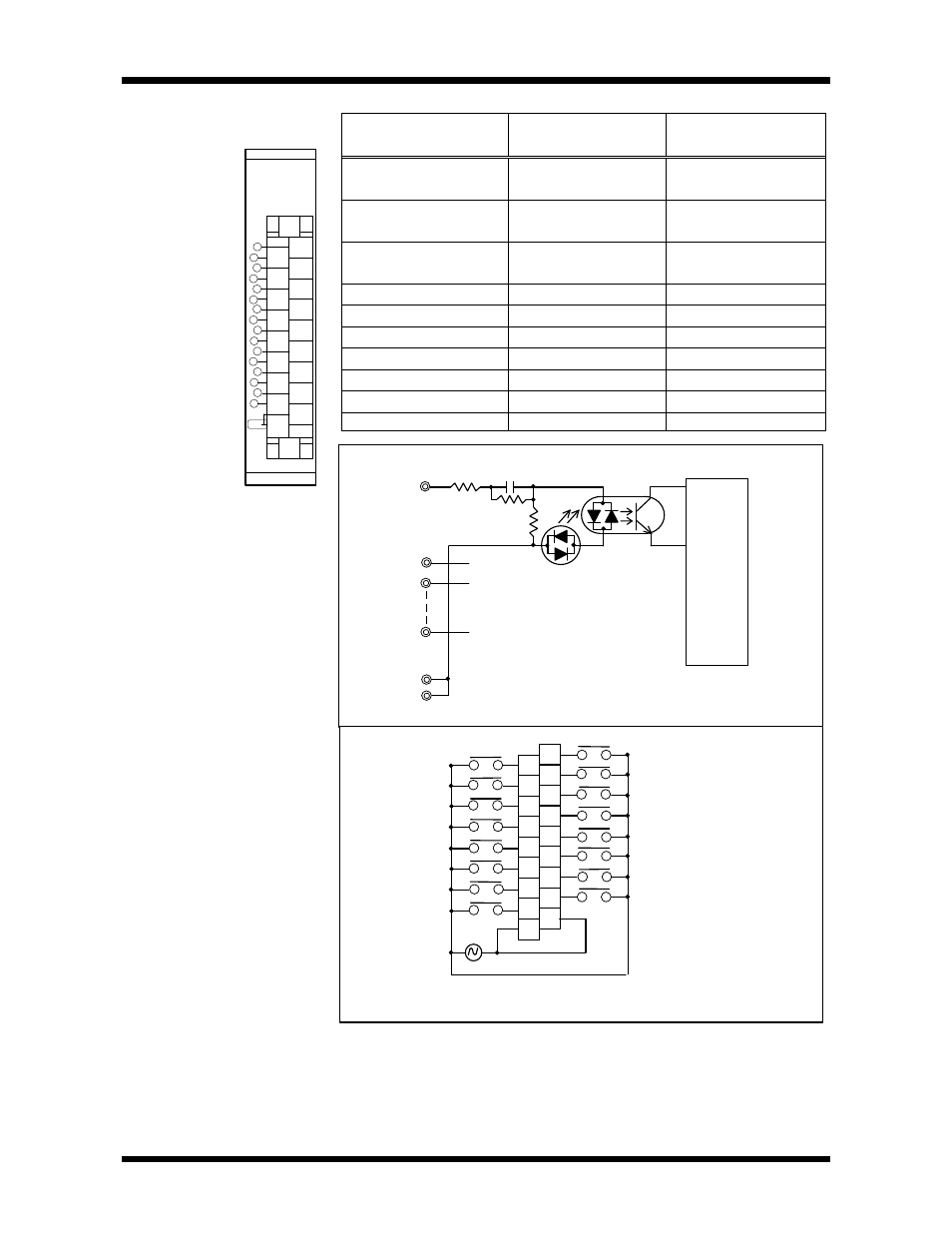

Circuit Configuration
Terminal connections
* IN51 : 100-120Vac (50/60HZ)
IN61 : 200-240Vac (50/60HZ)
16-point AC input
- 15% - 15%
Intermal
circuit
LED
indication 2
0
1
F
COM
COM
F
100-120Vac IN
IN51
D
E
B
9
A
C
7
5
6
8
3
4
1
2
0
COM
0 1 2 3 4 5 6 7
8 9 A B C D E F
. . . . . . . .
. . . . . . . .
5
3
1
9
7
D
B
F
4
2
0
8
6
E
C
A
COM *
