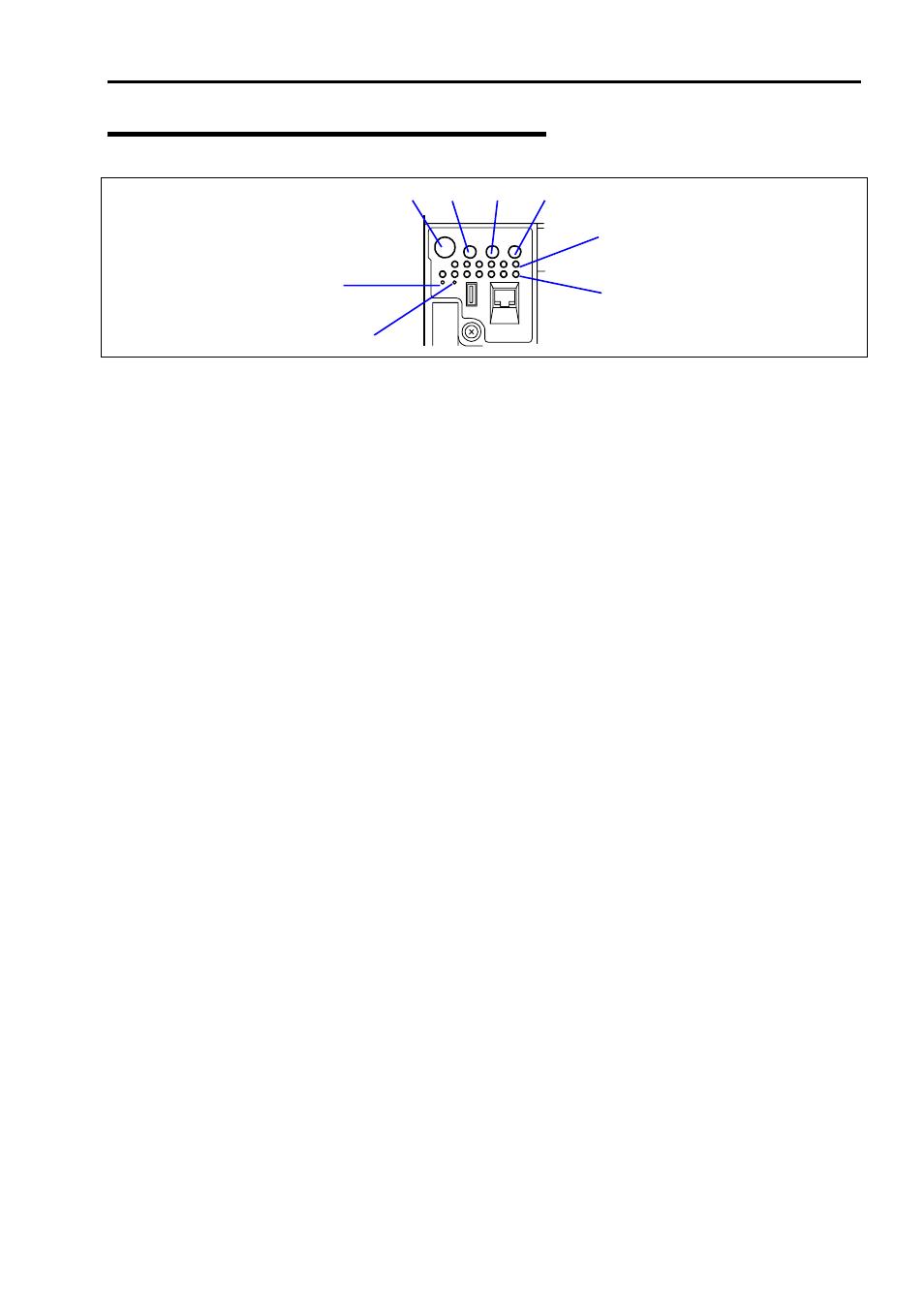

Front View (Switch and LED Panel)
1 POWER switch
The power switch is used to turn on/off the power. If you press the switch once, then the POWER/SLEEP lamp
goes on and the power is turned on. If you press the switch again, the power is turned off. The system is forcibly
shut down when the power switch is pressed continuously for four seconds or longer.
2 RESET switch
The reset switch is used to reset the server.
3 SLEEP switch
If you press the sleep switch once, the server enters into the sleep state (power saving mode). If you press the
switch again, the server recovers to the normal state. Windows Server 2003/Windows 2000 support this feature.
4 UID (Unit ID) switch
Pressing the UID switch turns UID lamp (blue) located on the front panel and the rear panel on and off.
5 POWER/SLEEP lamp
6 STATUS lamp
7 DISK ACCESS lamp
8 LAN1 access lamp
9 LAN2 access lamp
10 UID (Unit ID lamp)
11 DUMP lamp
12 Processor board error lamp
13 Memory board error lamp
14 I/O board error lamp
15 Power unit error lamp
16 Fan error lamp
17 Thermal error lamp
18 DUMP switch
The dump switch is used to collect the event logs having occurred in the server.
19 CLEAR switch
11 to 17 from left
18
1
5 to 10 from left
19
2 3 4
