NEC 140He User Manual

Page 319

9-61

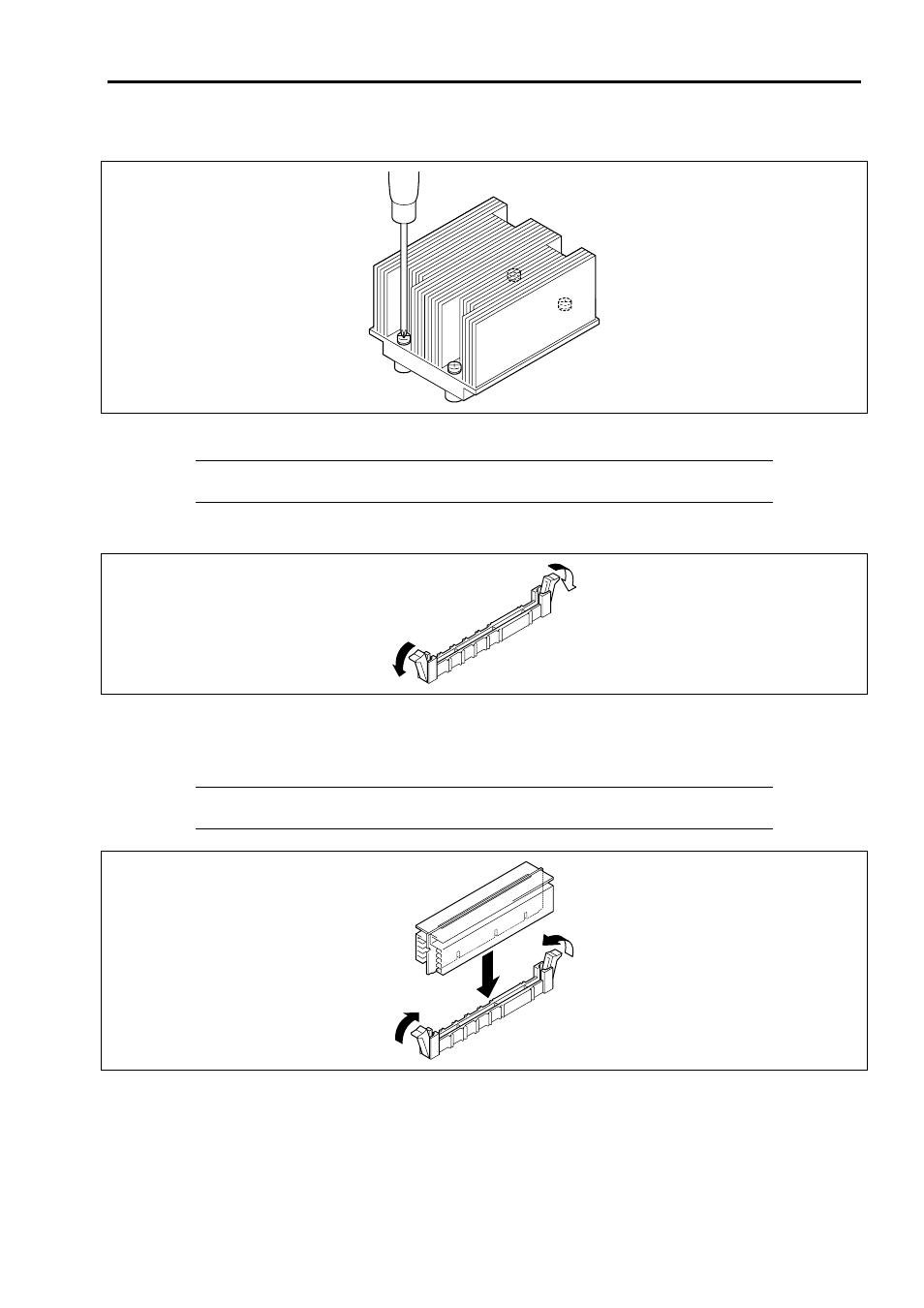

12.

Tighten the four screws to secure the heat sink.

13.

Make sure that the heat sink is level.

IMPORTANT:

If the heat sink is not level, remove it, and check if the processor is

positioned correctly.

14.

Fully open the levers on both sides of the VRM socket.

15.

Push the VRM straight into the socket.

When the VRM is inserted into the socket, the lever automatically closes. Push the lever toward inside to
securely close the lever.

NOTE:

Make sure of the orientation of the VRM. The terminal side of VRM has a cut-out

to prevent the incorrect insertion.

16.

Install the components you removed previously.
