Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE User Manual

265

Chapter 8: Expansion Modules

Installing A GSM/GPRS Module

Apply gentle downward pressure to securely seat the card in the connector.

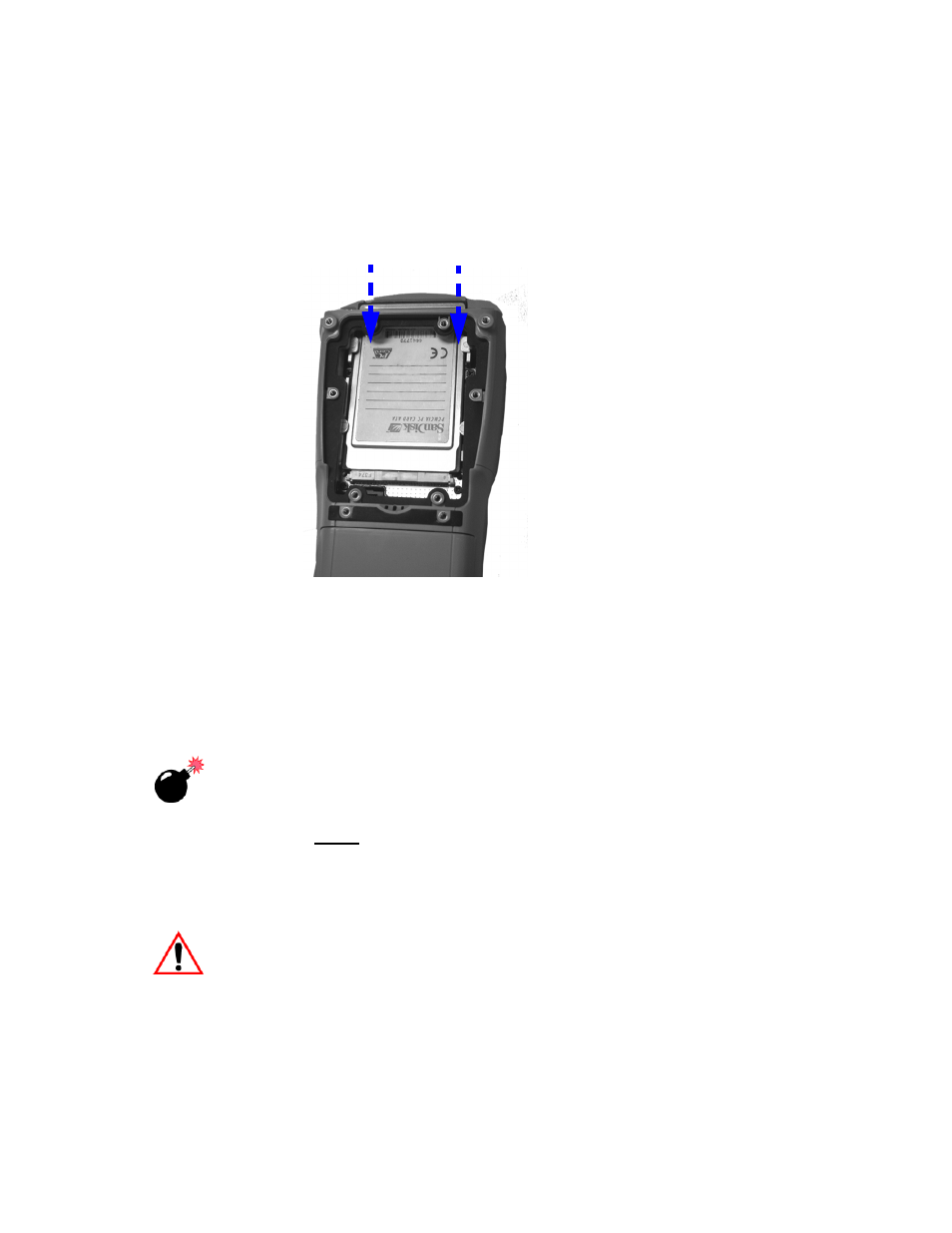

Figure 8.5 Inserting A PCMCIA Card

Align the mechanical stop and use the four screws provided to secure in place.
Tighten the screws to a torque of 2 lbs-in (2 kgf-cm), or until finger-tight.

Slide the SW1401 switch to the right to turn power back on.

Replace the end-cap.

Tighten the end-cap screws to a torque of 3 lbs-in (3kgf-

cm), and replace the

back plate and battery.

8.1.5 Installing A GSM/GPRS Module

Warning:

The installation of this GSM/GPRS module must be performed
using the appropriate anti-static devices. If unavailable, discharge
static from your body by touching a grounded metallic object
before opening any covers on the unit.

The GSM/GPRS module (model # RA3010) accommodates a GSM radio, a SIM
card (sold separately) and is equipped with a built-in antenna,

which also acts as a

mechanical stop for the CF card

. The module snaps onto the expansion connector on

your WORKABOUT PRO.
Important:

Backup any data in RAM first, since it will be erased when the
unit is turned off.

Remove the battery. If your unit is using AC power, disconnect it.

Insert the PCMCIA card as
shown here, with the label
facing you.
