Chapter 8: Expansion Modules
Installing The PC Card Expansion Module
264
Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE User Manual
To insert a PCMCIA PC card in your WORKABOUT, you will need to install a
PCMCIA module equipped with a 100-pin connector. This module snaps onto the
expansion connector on your WORKABOUT PRO.
Important:
Backup any data in RAM first, since it will be erased when the
unit is turned off.

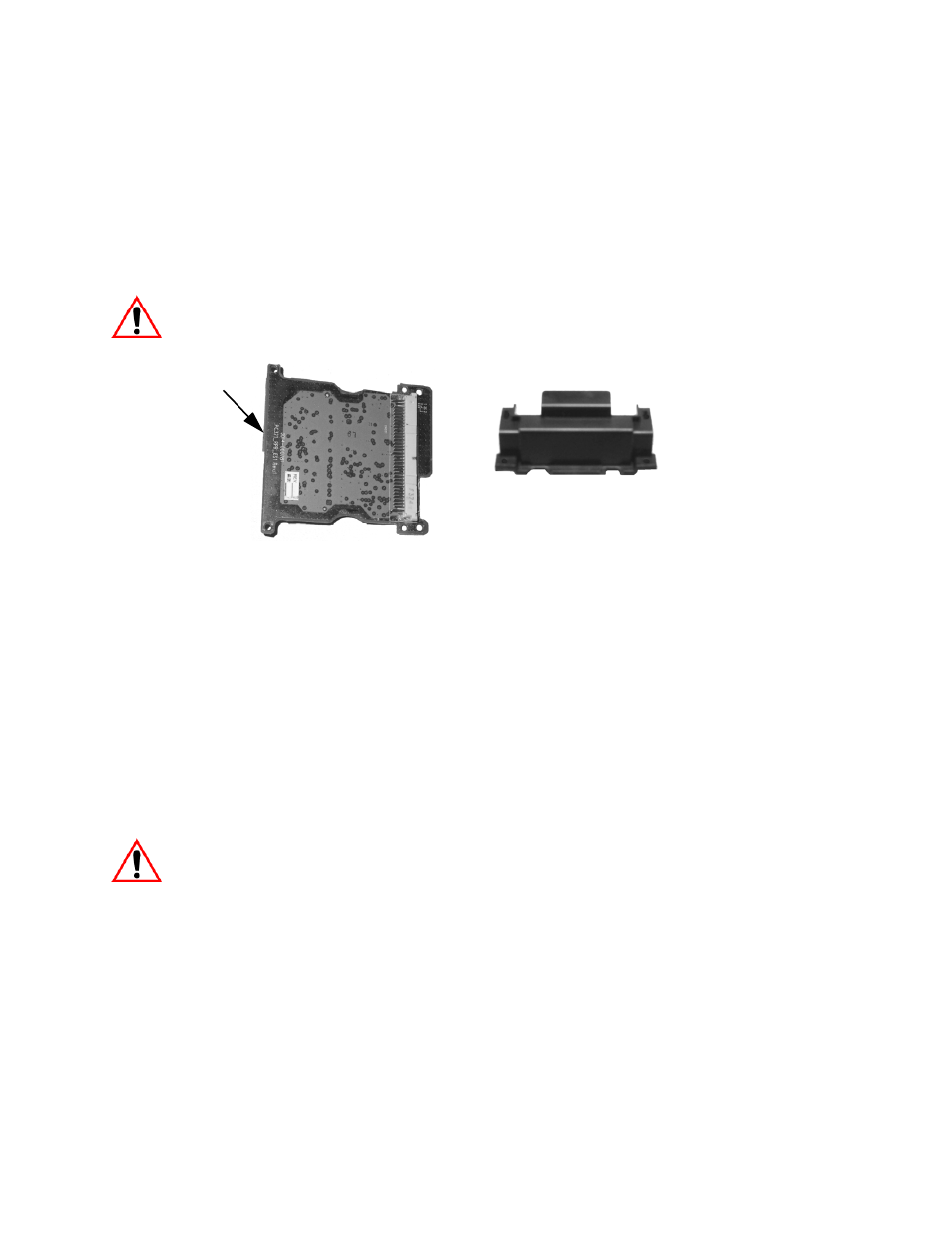

Figure 8.4 PCMCIA Module And Mechanical Stopper
•
Remove the battery. If your unit is using AC power, disconnect it.
•
Remove the end-cap and back plate.
•
Slide the SW1401 switch to the left to shut off internal battery power.
•
Remove the two screws at the top of the metal frame.
•
Align the PCMCIA Card connector with the expansion connector on the
WORKABOUT PRO. Apply slight pressure to snap the module into place
on the hand-held.
•
Use four of the screws provided to secure the PCMCIA Card into place
(additional screws have been provided for convenience). Tighten the screws
to a torque of 2 lbs-in (2 kgf-cm), or until finger tight.
Important:
Once the PCMCIA module is installed in the unit, you do not
need to remove the back plate to insert a PCMCIA PC card. Just
remove the end-cap and slide the card into the unit.
PCMCIA Expansion Module
Mechanical Stopper
