Chapter 5: Connecting To A LAN With 802.11b
Installing The 802.11b Radio
72
Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE User Manual
•
Slide the SW1401 switch to the left to shut off internal battery power.
•
With the back of the hand-held facing you, slide the radio (label up) into the
CF slot at the top of the unit until it clicks into place.

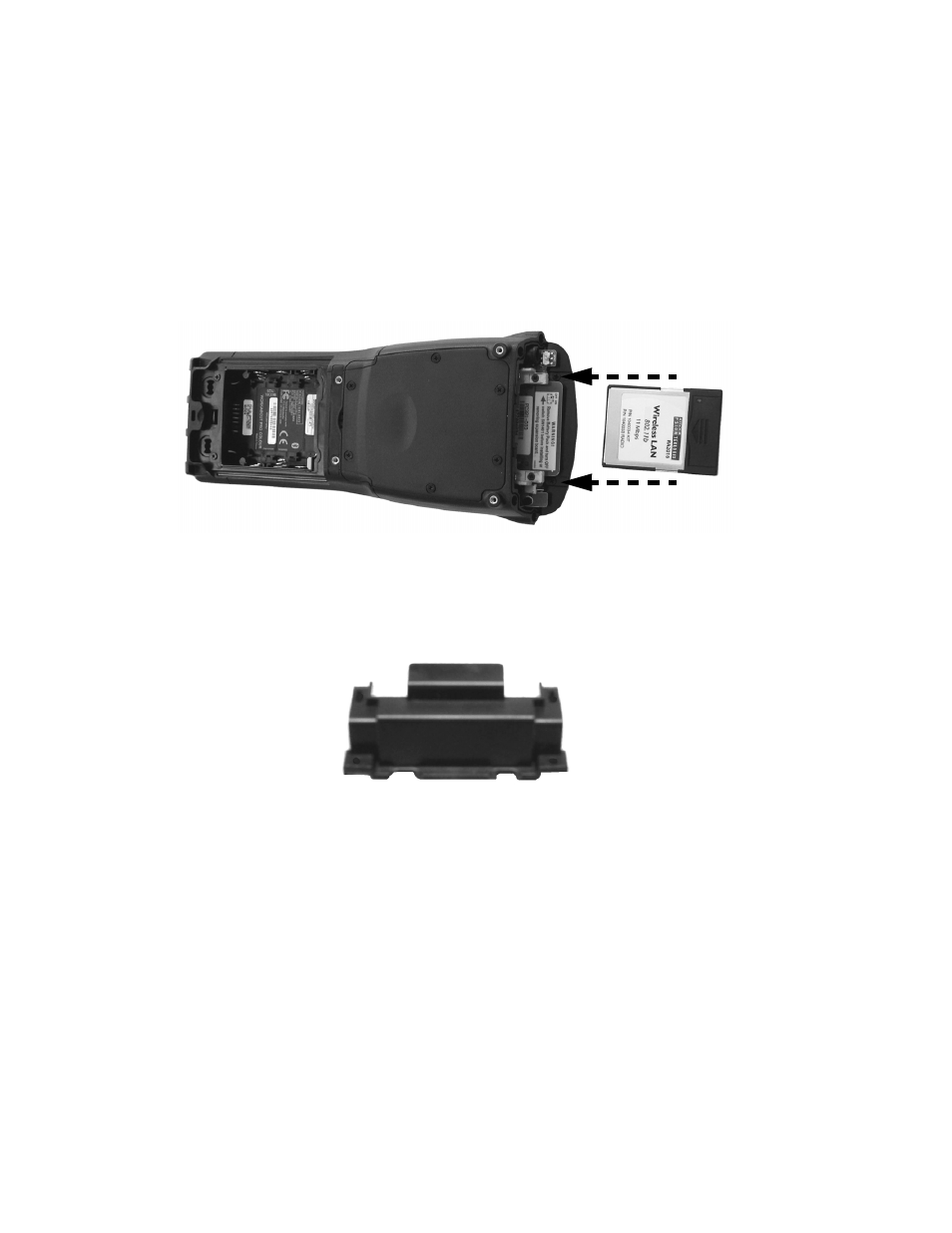

Figure 5.2 Inserting A CF Card
Once the radio is installed, you’ll need to attach a mechanical card stopper to hold
the radio in place. Replacements can be ordered separately.
Figure 5.3 Mechanical Stopper
