3-2 SANRAD V-Switch CLI User Manual
Chassis
The V-Switch 3000 is a 1 U surface or rack-mountable storage network
appliance. Its front panel includes the LCD display and programming buttons,
system indicator LEDs and network ports. Its back panel includes the storage
ports, redundant power supplies, compact flash and console port.
Front Panel
1. LCD display
2. LCD display programming buttons
3. One 10/100 Management Port
4. Three 1 Gb Ethernet Network Ports; both copper and FO interfaces
5. System Indicator LEDs
1
0215
2 5
1 3
4
SFP
RJ45
4 4

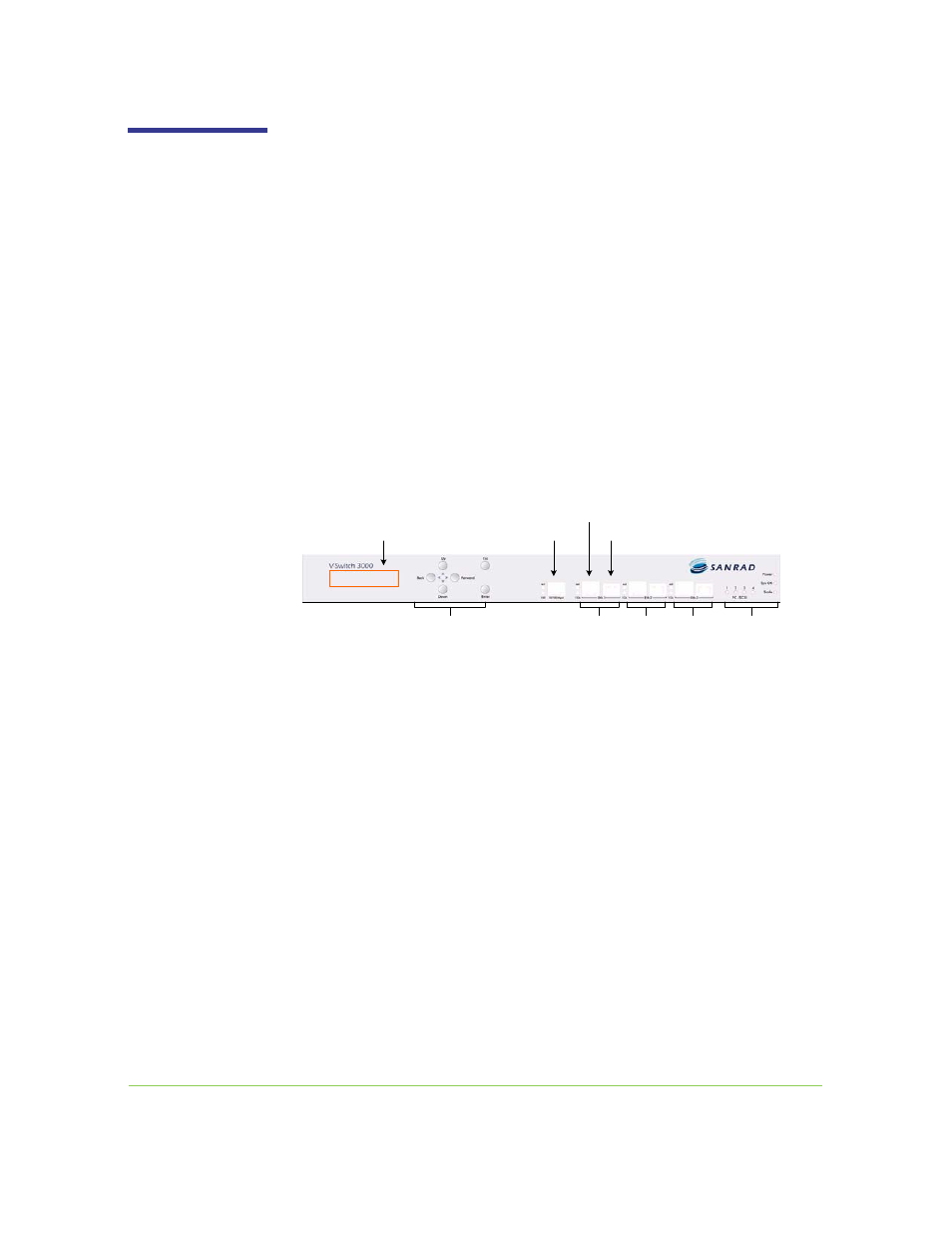

Figure 3-1. V-Switch 3000 Front Panel
Back Panel
6. Two - four SCSI / Fibre Channel Storage Ports
7. Dual fault tolerant power supplies
8. Removable Compact Flash (CF) slot
9. Scalability Port
10. RS232 Console Port
