Chapter 6: Volume Configuration
6-23
Disk 3
Disk 4
Simple 2
Disk 1
Simple 1
Simple 4
Simple 3
Disk 2
Simple 8
Disk 5
Simple 7
Simple 10
Disk 6
Simple 9
Disk 7
Disk 8
10
06
1
Simple 5
Simple 6
Simple 11
Simple 12
JBOD 1
JBOD 2
Mirrored
Volume 2

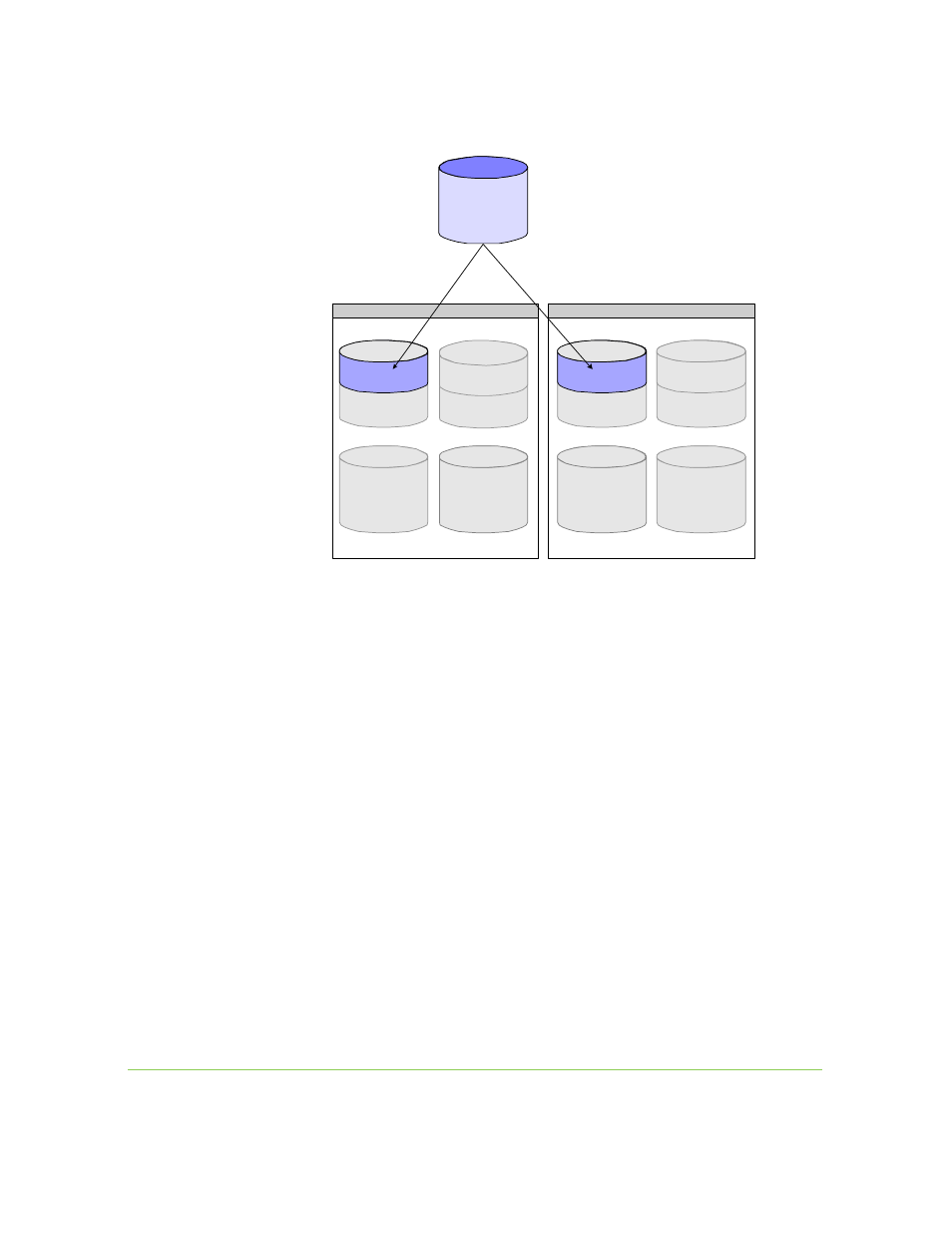

Figure 6-16. First Mirrored Volume of RAID 10
If you are working in
a V-Switch cluster,
this volume must be
configured on both
V-Switches.
Next, in Figure 6-17, another mirrored volume, Mirror 3, is created using
two children: Simple 3 and Simple 9.
volume create mirror –vol Mirror3 –ch Simple3 –ch
Simple9
