Chapter 8 Rack-Mounting the HP NetServer
86
b. The two holes in the mounting flange should line up with the captive
nuts (at 7th and 9th holes) in the column adapter and the two rack nuts
you installed on each rear column.
c. The extending portion of the slide (slide member) should point forward
out of the rack.
Extend rack’s
anti-tip foot
from front of rack
for safety.
Mount Slides
inside Column
Adapters

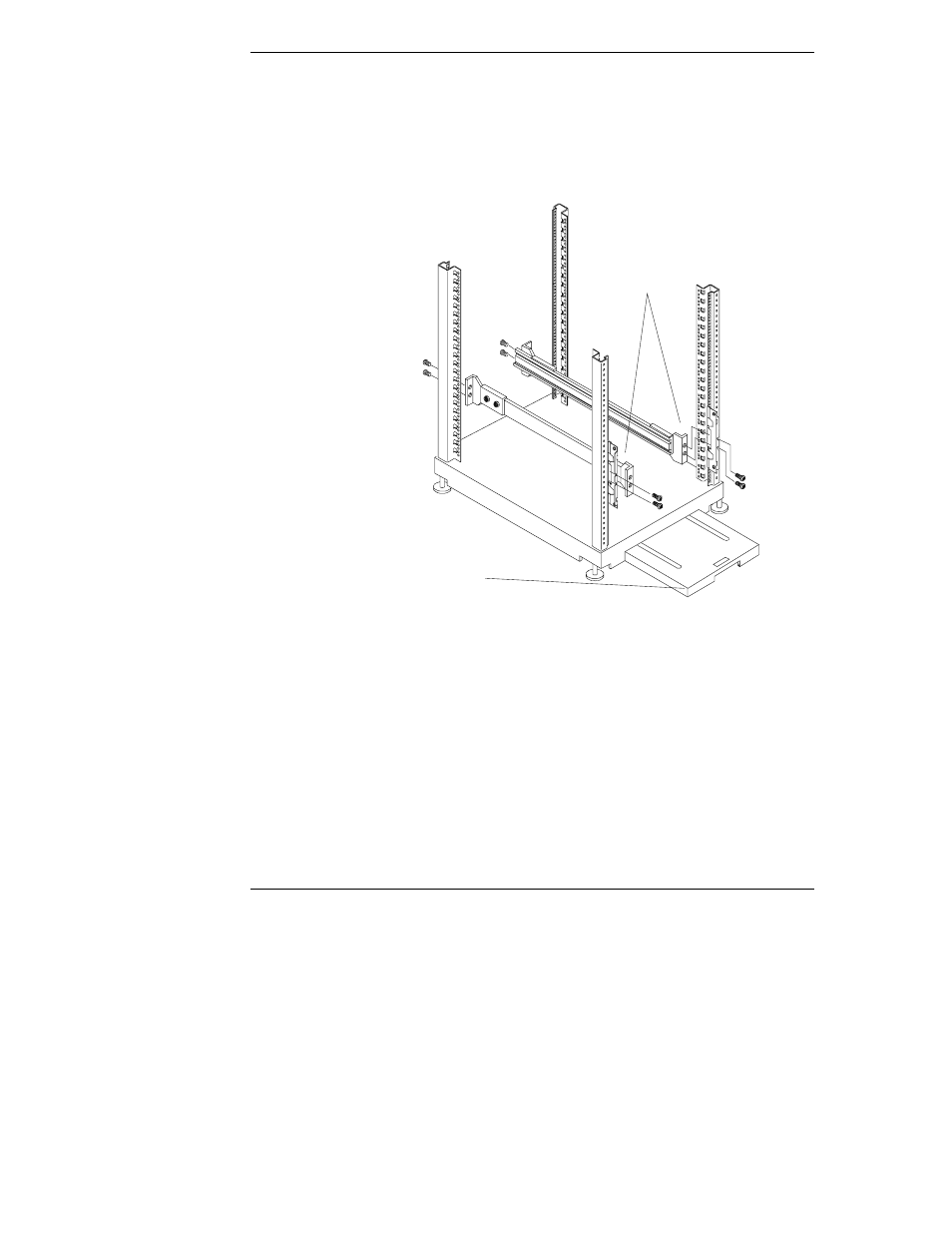

Figure 8-6. Securing the Slides to the Rack Columns
7. With the slide pushed firmly into position, insert two screws through the
slide’s front bracket into the captive nuts on the left column adapter.
a. Secure the screws only loosely at first, so the bracket can settle into the
lowest possible position. There is a dimple in the bracket to position
the slides in the proper location.
b. Then tighten the screws until the bracket is held firmly to the column
adapter and rack column. See Figures 8-5 and 8-6.
