Chapter 8 Rack-Mounting the HP NetServer
94
Attaching the Front Bezel
The front bezel attaches to the HP NetServer by a hinge on the left and a latch on
the right. The hinge has three spring-loaded hinge pins to secure the bezel. The
bezel is held in place on the right with a latch allowing the bezel to swing open
when pulled from the right. The chassis is shipped with the bezel hinge and latch
in place. The column adapters are the only items requiring installation on the rack,
which is done before mounting the rack slides.
1. Position the Bezel in front of the HP NetServer LC 2000r as shown in
Figure 8-14.
The hinge pins must be pushed down with the Blue Tab shown in Figure
8-13 to engage the hinge pins. When the Blue Tab is released, the spring
loaded hinge pins move up to grasp the bezel holding it in place. The bezel
is then swung closed on the right to engage the latch. See Figure 8-13.
Hinge Pins (3)
Blue Tab Slide Securing Screws(2)

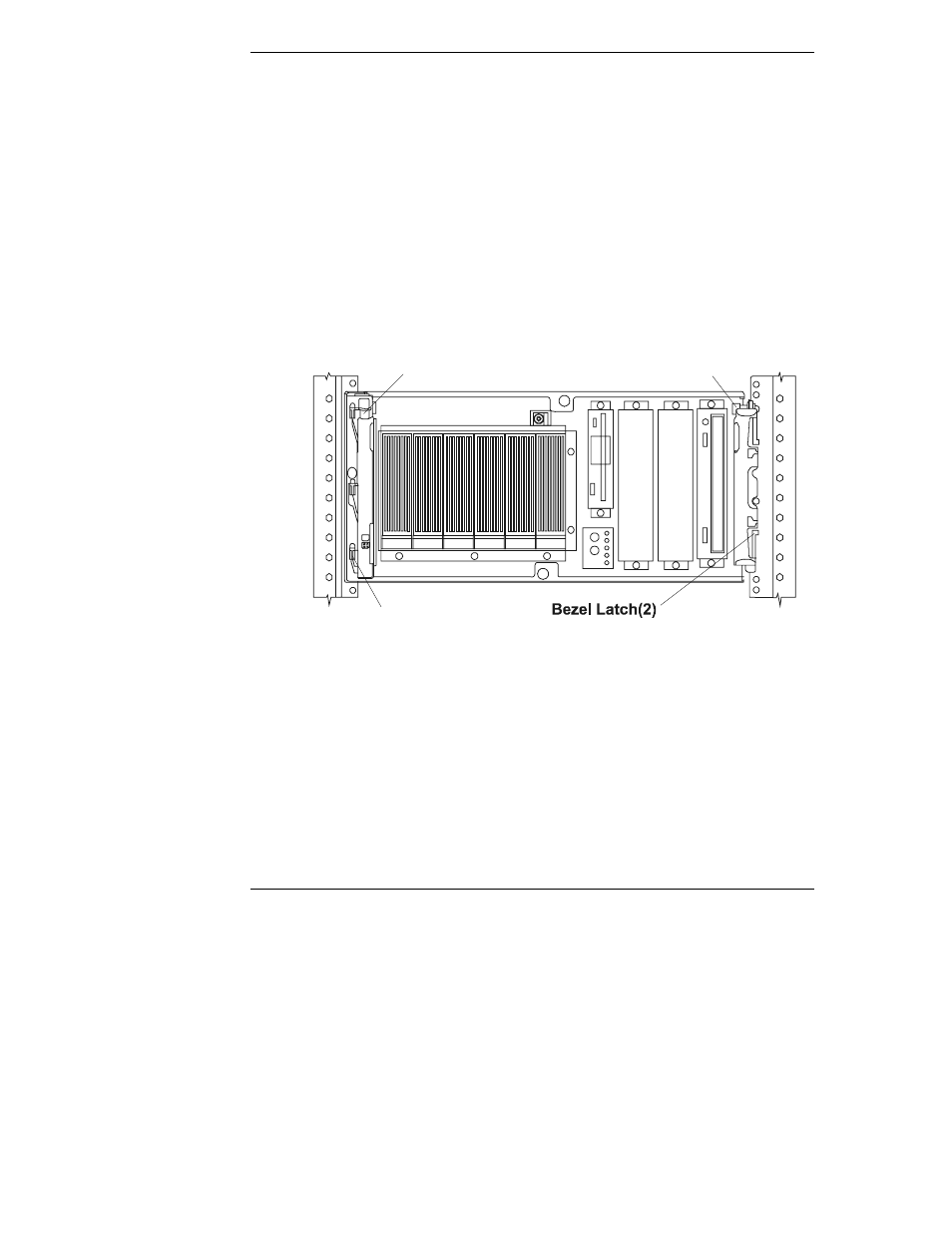

Figure 8-13. Hinge Pins and Blue Tab Release
