Chapter 8 Rack-Mounting the HP NetServer
85
Attaching the Column Adapters and Slides
1. Pull the anti-tip foot forward out of the bottom of the rack.
See Figure 8-6 for the anti-tip foot location.
2. Align the left HP column adapter to the left front column as shown in
Figure 8-5.
3. Match the column adapter holes (2nd & 14th) to the marks on the front
column and place the column adapter mounting holes behind the column
face. See Figure 8-5.
4. With the column adapter held in position, insert two screws (M5) through
the holes in the column into the captive nuts on the column adapter. See
Figure 8-5.
5. Repeat Steps 2 through 4 for the column adapter on the right front column.
2nd Hole
From Bottom
14th Hole
From Bottom
Left
Bottom of
HP NetServer
Front
Column
Adapter
Slide Mount
Column
Adapter

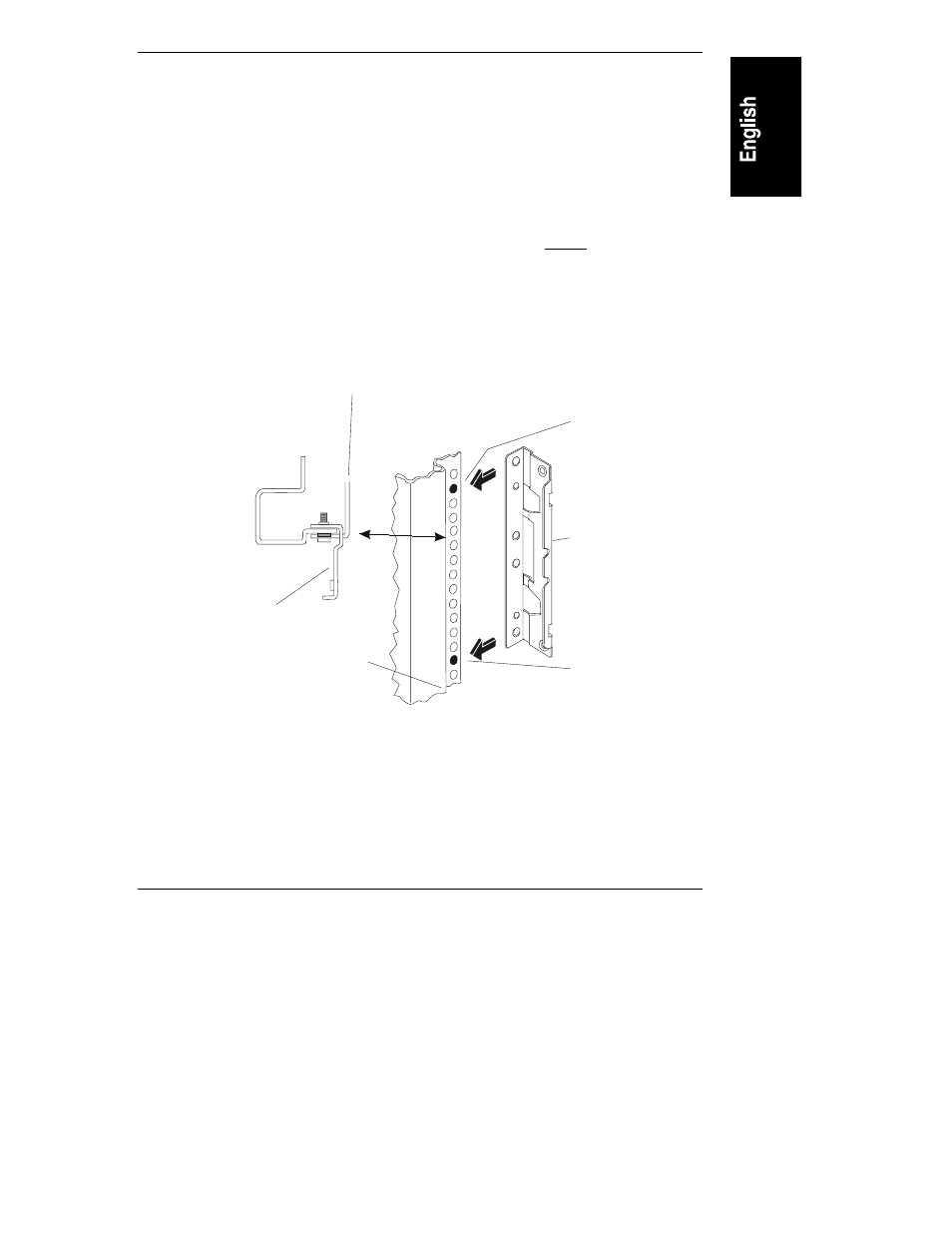

Figure 8-5. Mounting Column Adapter to Front Columns
6. Hold a slide in position inside the two left-hand rack columns and
observing the following items.
a. The mounting flange on each end of the slide must wrap around the
outside face of both the front and rear columns. See Figure 8-6.
