Chapter 13 Alternative Rack Mounting
157
Attaching the Cable Management Arm
Use this procedure to mount the Cable Management Arm on the HP NetServer
LC 2000r when mounted in the HP System racks. The HP NetServer LC 2000r’s
Cable Management Arm allows the cables, including the power cord, to move in
and out with the HP NetServer chassis without being accidentally disconnected.
See Figure 13-10.
WARNING Before sliding out the HP NetServer LC 2000r, ensure the
anti-tip foot is still extended from the front of the rack. A
tip-over hazard exists, so never slide more than one
component out of the rack at a time.
1. Ensure the HP NetServer LC 2000r is pushed all the way into the rack.
2. At the rear of the HP NetServer, place rack nuts on the left column in the
12th and 14th holes above the baseline (bottom) of the NetServer.
See Figure 13-10.
12th Hole
From Bottom
14th Hole
From Bottom
Bottom of
NetServer
Left
Rear
Rack Nuts

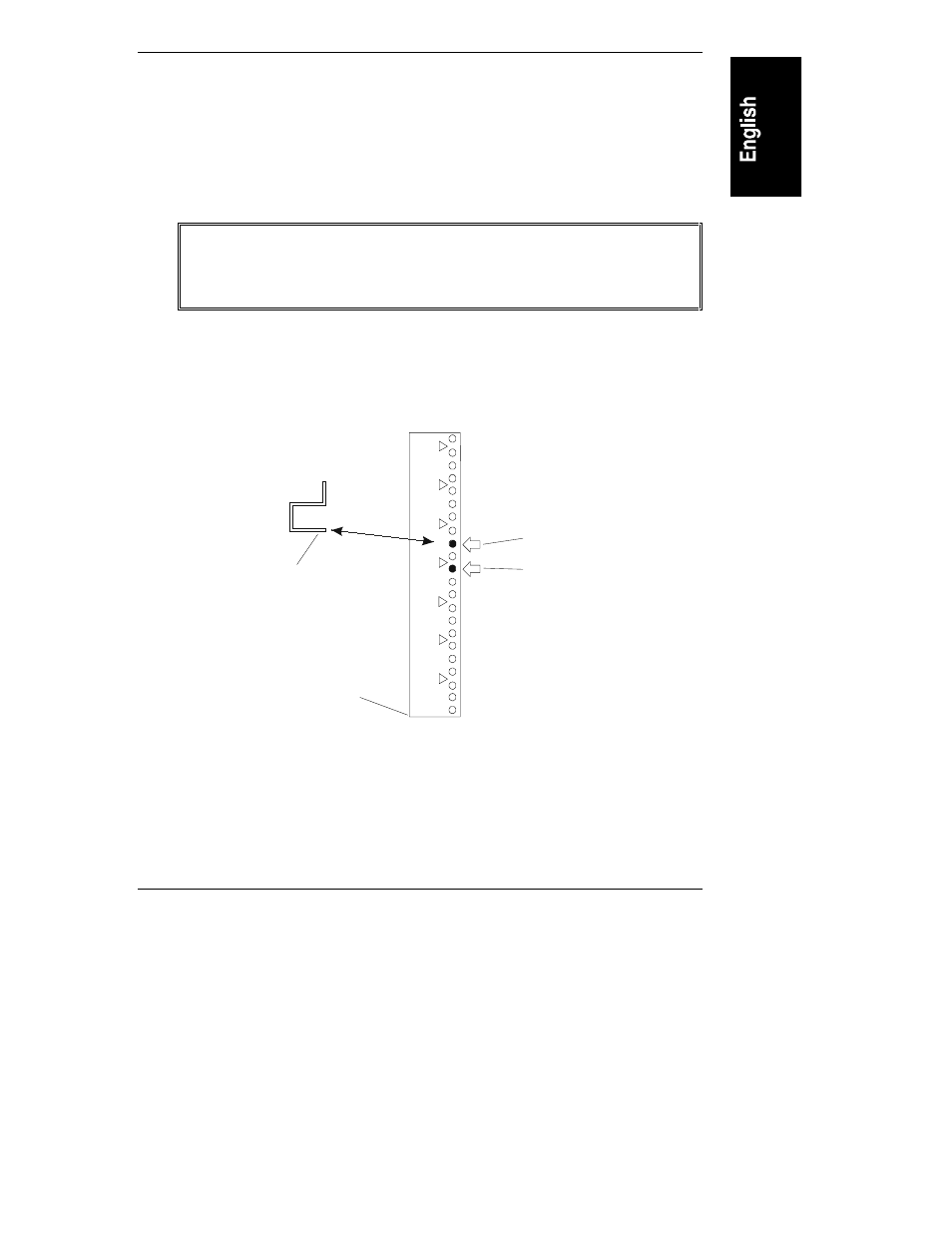

Figure 13-10. Attaching the Rack Nuts to the Left Column
3. Orient the cable management arm as shown in Figure 13-11.
4. Match the inner flange mounting holes with the two captive nuts at the rear
of the NetServer. See Figure 13-11.
