Chapter 4 Installing Mass Storage Devices
44
SCSI Cable Configurations
Hot-Swap and Non-Hot Swap Drives
(Single Bus Control - No Duplex Board Installed)
SCSI Channel A SCSI Channel B
Hot-Swap
Mass Storage Cage
Connector A:
Used for Top Half
(Right Side)
of Cage
Daisy Chain
from Top Half
(Connector A)
to Connector B
Non-Hot Swap
SCSI Devices
(Hard Drive and
Back-up Tape Drive)
External SCSI
Connections
(Optional)
PCI SCSI Disk
Controller Board
System Board
Connector B:
Used for Bottom Half
(Left Side) of Cage
Termination
Cable 2 Cable 3 Cable 4 Cable 1
Flexible Disk Drive
CD-ROM

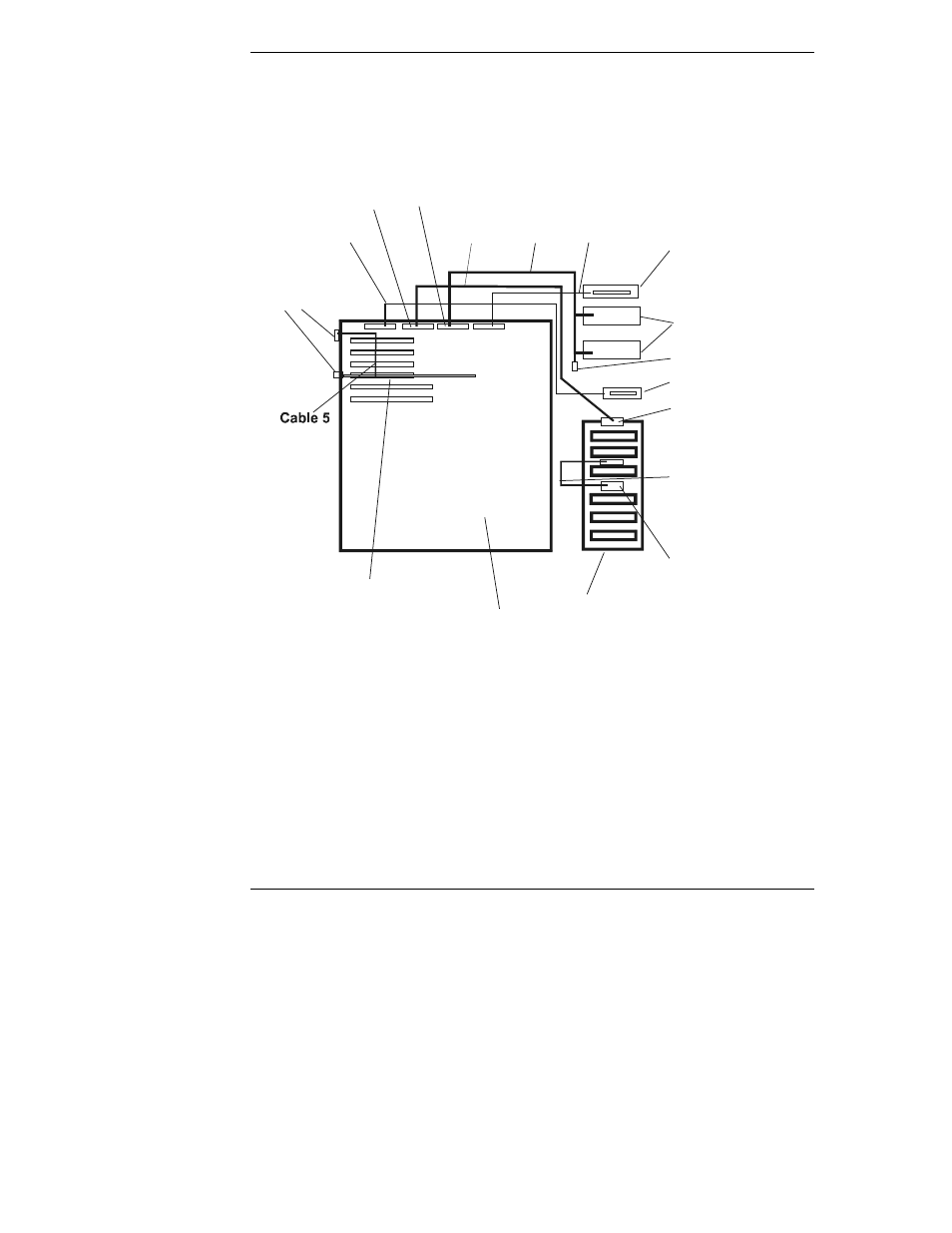

Figure 4-6. SCSI Cable Configurations (No Duplex)
